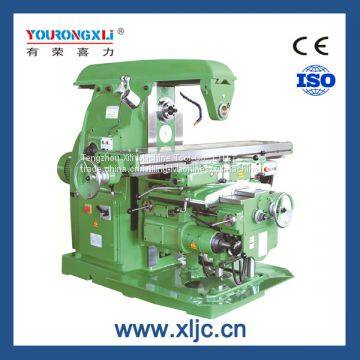

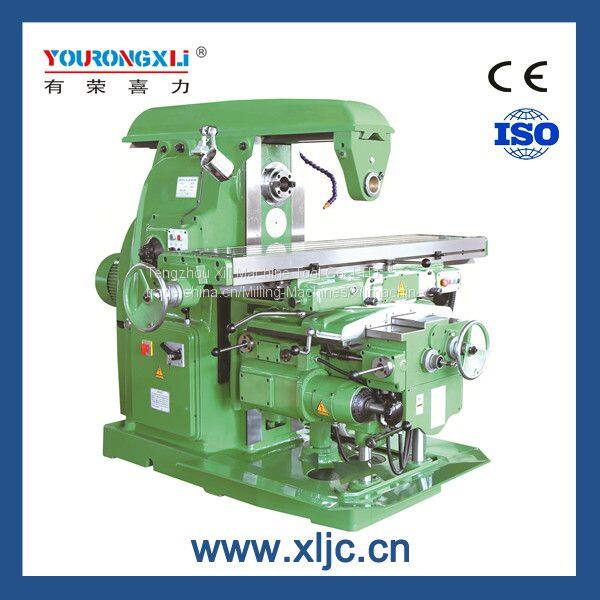

X6140 conventional multi purpose milling machine
Specification
Specification | Unit | X6140 |
Table size | mm | 1700X400 |
No.of T-slots | 3 | |
Width of T-slots | mm | 18 |
Max.load | kg | 800 |
Longitudinal travel(manual/auto) | mm | 900/800 |
Cross travel(manual/auto) | mm | 315/300 |
Vertical travel(manual/auto) | mm | 350/330 |
Table feed range（X/Y/Z） | mm/min | 23.5-1180/23.5-1180/8-394 |
Rapid feed speed | mm/min | 2300/2300/770 |
Spindle speed range | r/mm | 30-1500 |
Spindle speed step | steps | 18(steps) |
Max swivel angel of table | 45 degree left / right | |
Distance between spindle axis table surface | mm | 30-380 |
Power of spindle motor | kw | 11 |
Overall dimension(LXWXH) | mm | 2556X2159X1770 |
Net weight | kg | 3850 |
Standard Accessories
name | Specification Model | Qty |
Lifting handle | - | 1set |
ISO50 Cutter arbor Cutter arbor | φ40 | 1 piece |
Horizontal arbor assembly | Φ32 | 1 piece |
Horizontal arbor assembly | Φ50 | 1 piece |
Oil gun | 1 piece | |
Draw bar | - | 1 piece |
Double-ended wrench | 17x19 | 1 piece |
Double-ended wrench | 22x24 | 1 piece |
Double-ended wrench | 27x30 | 1 piece |
Double-ended wrench | 32x36 | 1 piece |
Single head spanner | 14 | 1 piece |
Single head spanner | 50 | 1 piece |
Inner hexagonal wrench | 5 | 1 piece |
Inner hexagonal wrench | 8 | 1 piece |
Inner hexagonal wrench | 10 | 1 piece |

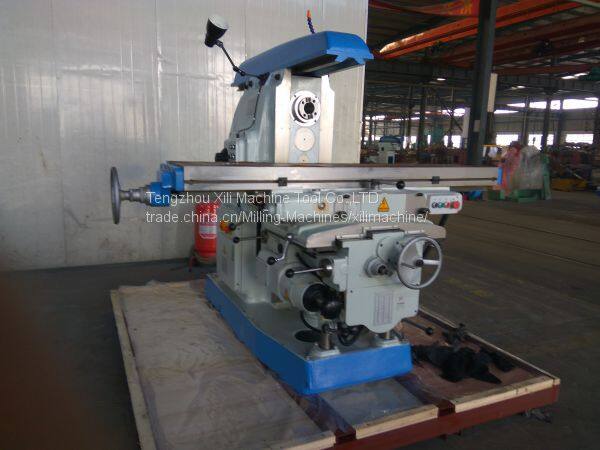

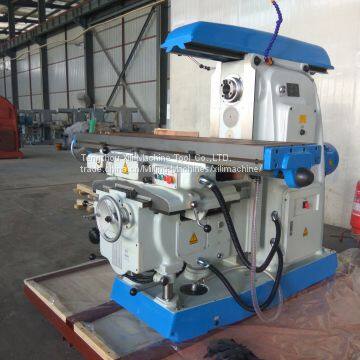

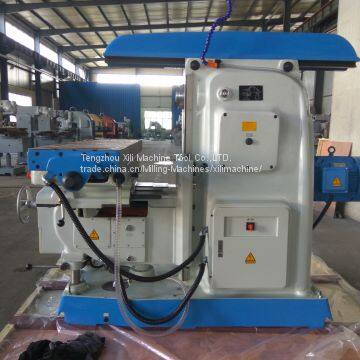

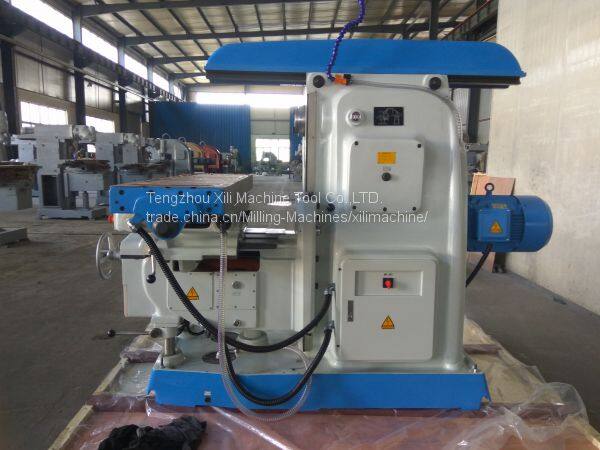

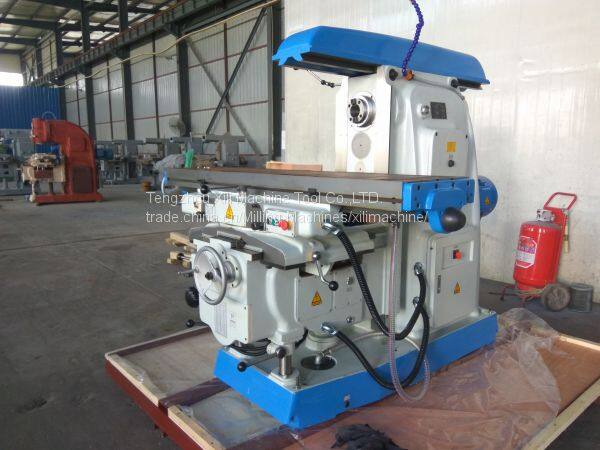

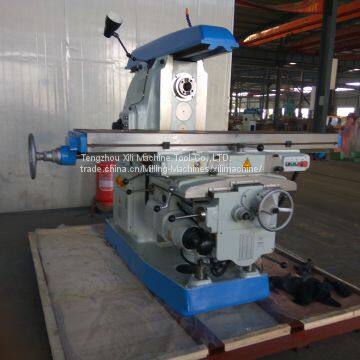

X6140 Photos
Company information
Tengzhou Xili Machine Tool Co., Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We have more than 20 years manufacturer experience. Our main products include CNC Machining Center, CNC Gantry Milling Machine,vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, ram type milling machines and vertical drilling machines with all 30 categories.
We are manufacturer not trading company.All our products passed CE, ISO9001. Our main customer like: Germany KNUTH, Austria Bernardo. You can trust our quality and service.
Hope we can built long-term business relationship with you.
Our service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Any Question, Feel free contact me
Whatsapp: 86 15263023710
