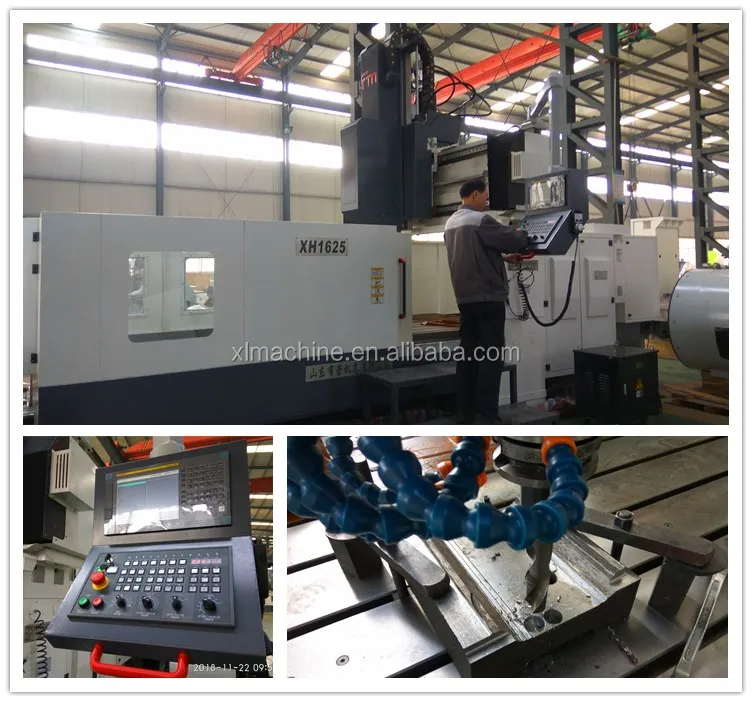

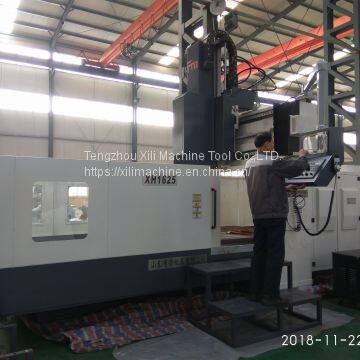

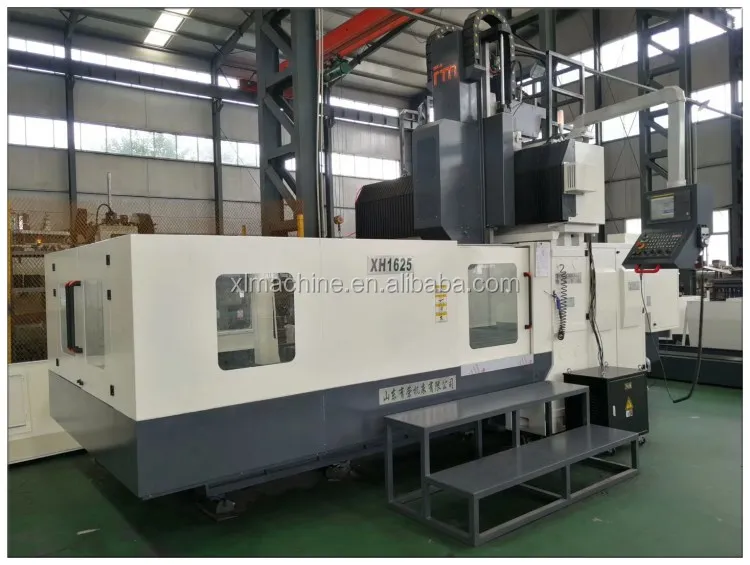

XH1316 Gantry Drilling & Milling Machining Center

Name: XH1316 Gantry Drilling & Milling Machining Center
Brand: YOURONGXILI
SKU: 159494773
Availability: InStock

Tengzhou Xili Machine Tool Co.,LTD.

US$ 10000 - 100000 MOQ: 1 Set

Key Specifications

Brand Name:

YOURONGXILI

Place of Origin:

China

Model Number:

XH1516 1520 1530 1625

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO / SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Brand Name YOURONGXILI

Place of Origin China

Model Number XH1516 1520 1530 1625

Type Vertical

Certification CE ISO9001

After-sales Service Provided Engineers available to service machinery overseas

Warranty 1 year

Weight 18 TON

Dimension(L*W*H) 7600*3300*3750

Voltage as your request

Condition New

Power(W) 11KW

CNC or Not CNC

gantry drilling & milling Machining Center

Product Description

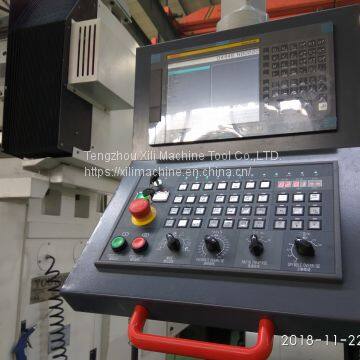

CNC controller :

Siemens 828D, Fanuc 0i-MD, Mitsubishi, KND or GSK.

Specification of gantry drilling & milling Machining Center

Specification	Unit	XH1516	XH1520	XH1530
Table travel X	mm	1600	2000	3000
Table travel Y	mm	1500	1500	1500
Table travel Z	mm	500/750	500/750	500/750
Table size	mm	1600x1300	2000x1300	3000x1300
Distance between columns	mm	1600	1600	1600
Max table load	Kg	1600	2200	2400
T-slot (N/W/D)		9/22/130	9/22/130	9/22/130
Feeding speed XYZ	mm/min	1-4000	1-4000	1-4000
Rapid feed speed XYZ	m/min	12/12/8	12/12/8	12/12/8
Distance between spindle and table surface	mm	150-650/900	150-650/900	150-650/900
Spindle taper	/	BT50	BT50	BT50
Power of spindle motor	Kw	12	12	12
Spindle speed range	rpm	3000/6000	3000/6000	3000/6000
Positioning accuracy	mm	0.005/300	0.005/300	0.005/300
Repeatability	mm	0.003/1000	0.003/1000	0.003/1000
Overall size	mm	4360X3300X3100/3350	4360X3300X3100/3350	4360X3300X3100/3350
Net weight	t	13/13.5	14/14.5	17.5/18
