Drum Screen for Sewage Treatment

Drum screen for sewage treatment

Specifications:

1. Little hydraulic loss
2. Whole stainless steel
3. Self cleaning, easy maintenance
4. High capacity

Product Introduction:

BOEEP ZG Rotary Drum Screen is widely applied for wastewater treatment projects such as urban wastewater, industry wastewater, food process industry, paper industry and so on. This equipment can clean scum, short fiber, and suspended matter from the water intake, and then discharge them after dewatering. It can be used for wastewater treatment engineering such as high precision process, small grid gap and low depth of canal.

Product Features :

1. Little hydraulic loss, high efficiency, and large processing capacity.

2. Whole stainless steel structure, convenient in maintenance and long service life.

3. The working device of the equipment can clean the equipment by itself.

4. A system with more functions, and structure compact.

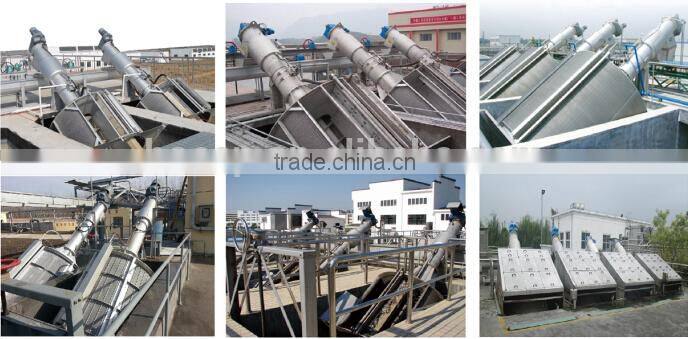

Product Application:

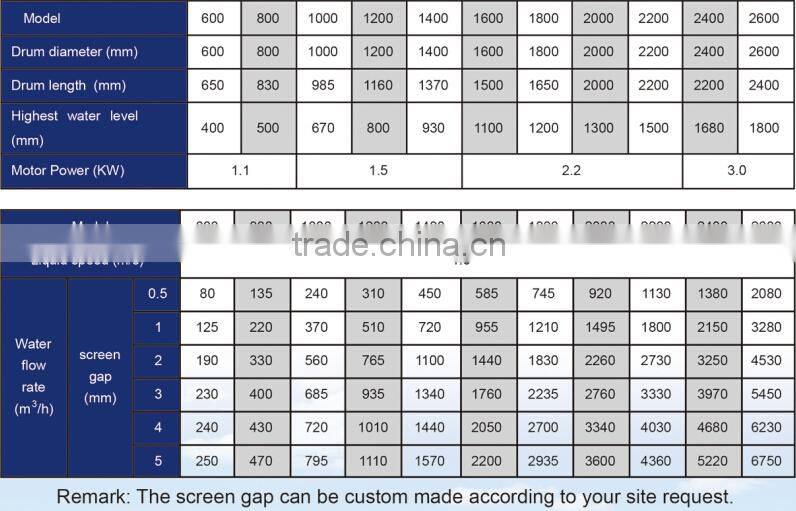

Product Data:

Product Details:

Type ZG Drum Grid Cleaner is widely applied for wastewater treatment projects such as urban wastewater, industry wastewater, food process industry, paper industry and so on. This equipment can clean scum, short fiber, and suspended matter from the water intake, and then discharge them after dewatering. It can be used for wastewater treatment engineering such as high precision process, small grid gap and low depth of canal.

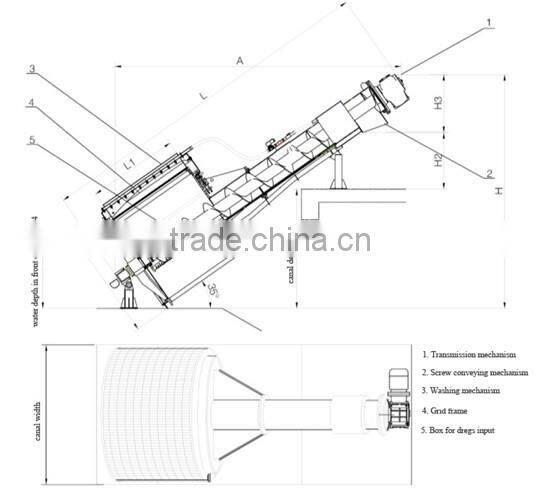

Dimension Drawing of the Outline:

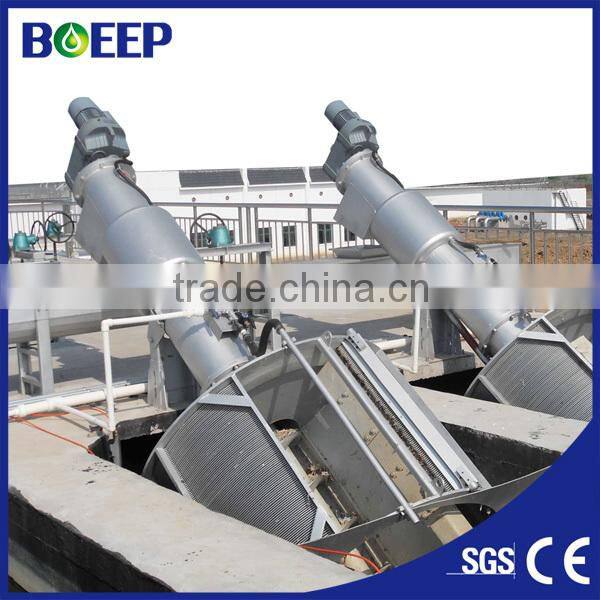

Structure & Working Principle:

(Getting rid of dregs by turning the outside drum)
