Continuous Working Mechanical Bar Screen in Sewage Treatment Plant

continuous working mechanical bar screen in sewage treatment plant

Specifications:

1.  Complete machine
2.   Convenient installation
3.  High separation efficiency

4.  Thoroughly in dregs seizing

 Product Introduction:

XQ Fine Screen (Circulation Toothed Harrow Mud Cleaner) is one of the important dirt pretreated and blocked equipment in the wastewater treatment. It can be applied for municipal sewage, drainage pumping plant, urban wastewater, industry wastewater, and coarse or fine screen.

Product Application:

 Product Features :

1. Using the isometric distribution toothed harrow to block the dirt automatically and continuously can avoid a large number of rubbish to block the grid.

2. Thoroughly in dregs seizing, high separation efficiency

3. Complete machine, convenient installation.

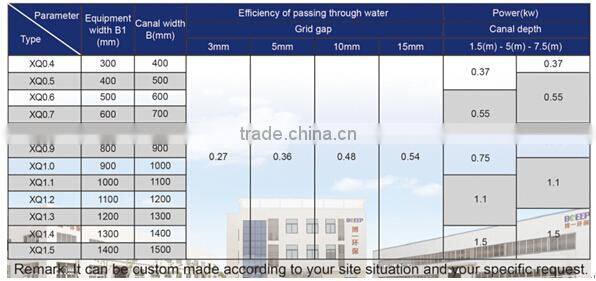

Product Data:

As it is non-standard ,  It can be customised according to your site channel width & depth.

Product Details:

Model of designation:

 Depth of Canal H (m)

Width of Canal B (m)

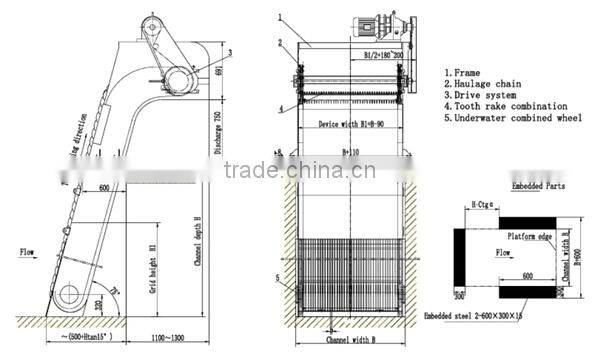

Structure & Working Principle:

Type FHG Counter Seizing Grate Cleaner is made of rotational system, rack, toothed harrow, traction chain, underwater guide wheel, attached grid, main grid and slagtrap. The rotational system drives the toothed harrow to turn up and down by traction chain, toothed harrow gets down at the back of the grid, underwater guide wheel changes its direction to the front of the grid in the bottom, the floating objects intercepted by the grid will be seized to the slag discharged mouth from bottom to top, then they will be transported to the conveyor or garbage truck.

If you are interested in our product, contact me!

We will do our best to be of service for you !
