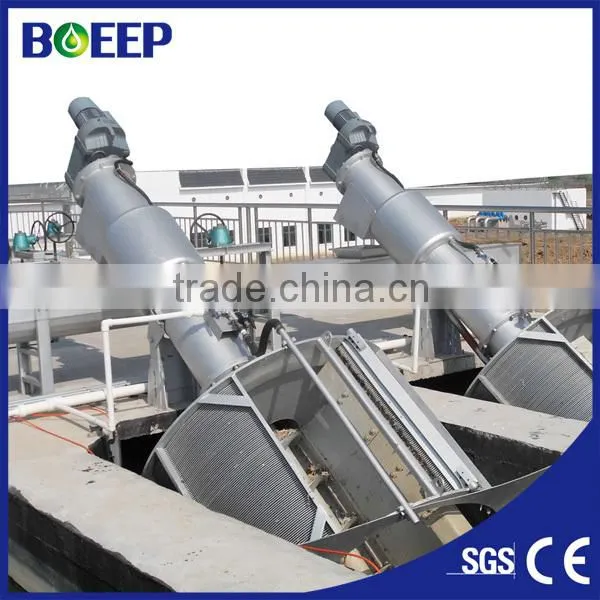

Rotating drum bar screen machine for wastewater treatment
Specifications:
1. Little hydraulic loss
2. Whole stainless steel
3. Self cleaning, easy maintenance
4. High capacity
Product Introduction:
BOEEP ZG Rotary Drum Screen is widely applied for wastewater treatment projects such as urban wastewater, industry wastewater, food process industry, paper industry and so on. This equipment can clean scum, short fiber, and suspended matter from the water intake, and then discharge them after dewatering. It can be used for wastewater treatment engineering such as high precision process, small grid gap and low depth of canal.
Product Features :
1. Little hydraulic loss, high efficiency, and large processing capacity.
2. Whole stainless steel structure, convenient in maintenance and long service life.
3. The working device of the equipment can clean the equipment by itself.
4. A system with more functions, and structure compact.

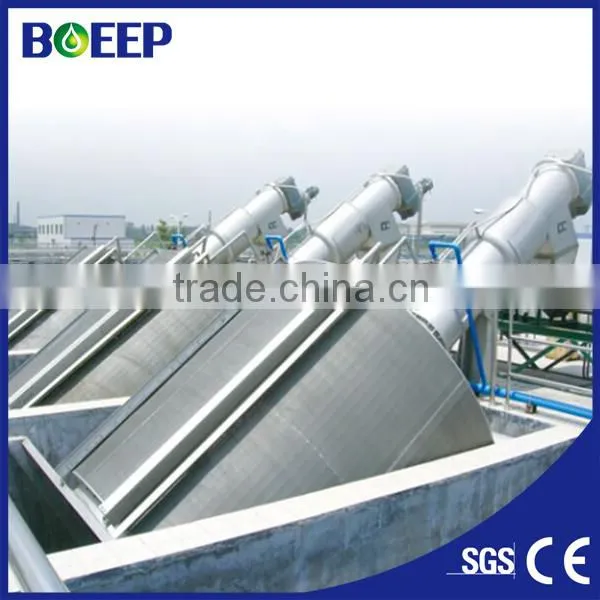

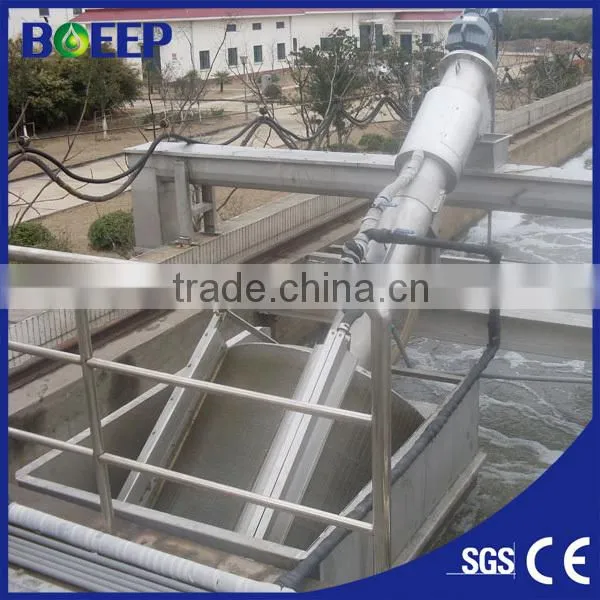

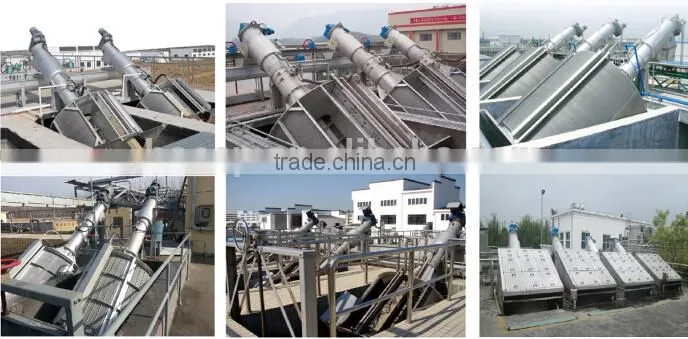

Product Application:
Product Data:

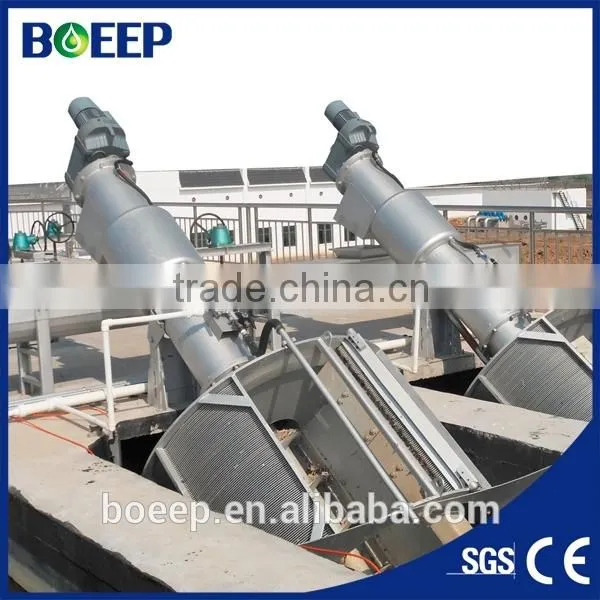

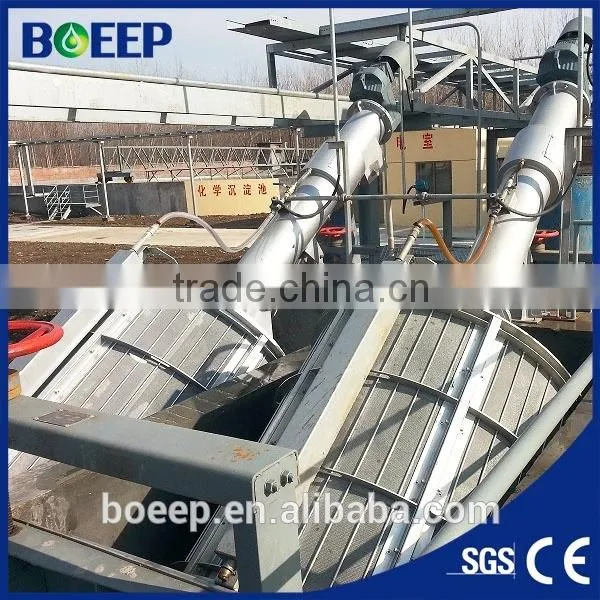

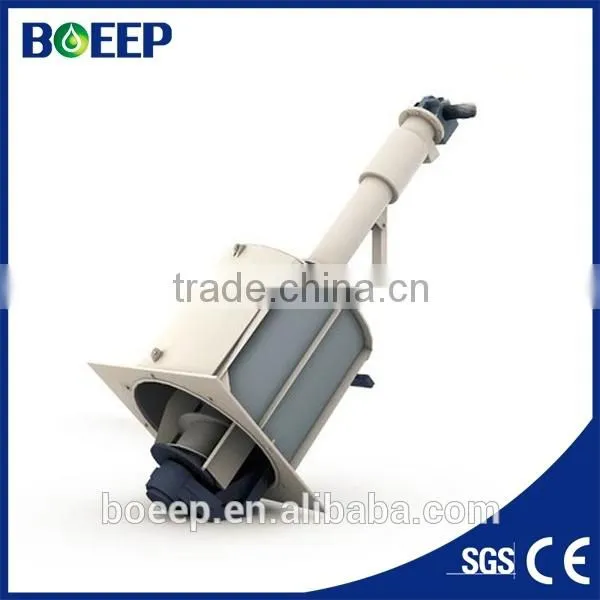

Product Details:
Type ZG Drum Grid Cleaner is widely applied for wastewater treatment projects such as urban wastewater, industry wastewater, food process industry, paper industry and so on. This equipment can clean scum, short fiber, and suspended matter from the water intake, and then discharge them after dewatering. It can be used for wastewater treatment engineering such as high precision process, small grid gap and low depth of canal.

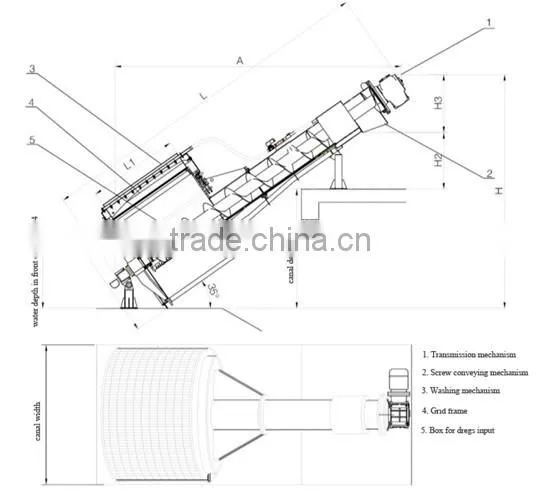

Dimension Drawing of the Outline:
Structure & Working Principle:
(Getting rid of dregs by turning the outside drum)
This equipment has four functions such as intercepting dregs, getting rid of dregs, spiral lifting and pressing dewatering. It is mounted in the canal with the angles of 35 degrees, and the wastewater flows into the drum from the port of the drum. The water flows out from the side of the drum, and the grid can intercept the dregs. Then the drum moves at a fixed speed, and the nylon brush and flush water spray nozzle above the drum can get rid of dregs and export them through spiral lifting. Dregs by dewatering and pressing will be delivered to the container or the transportation equipment. The whole process is clear and no smell.
If you are interested in our product, contact me!
We will do our best to be of service for you !
