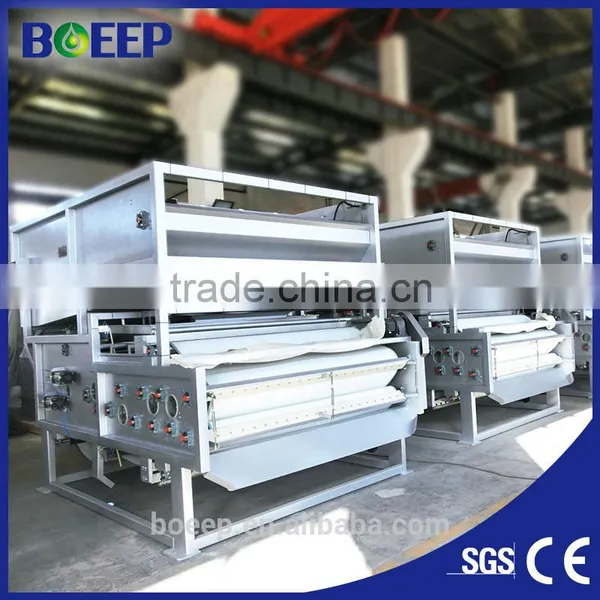

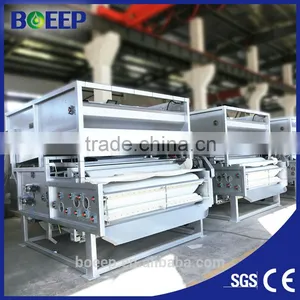

Belt type press dewatering for pharmaceutical wastewater treatment
Specifications:
1.automatic filter cloth washing
2.long life belt cloth
3.save energy
4.High capacity
Product Features :
1. Material of the main structure : SUS304/316
2. Belt : Has a long service life
3. Low power consumption, slow-speed of revolution and low noise,
4. Adjustment of belt: Pneumatic regulated, ensures the stability of the machine
5. Multi-point safety detection and emergency stop device:improve the operation.
6. The design of the system is obviously humanized and provides convenience in operation and maintenance.
Product Application:
1. Sludge dewatering of industry waste water
2. Separation of liquid and solid in food, chemical and mining industries
3. Sludge dewatering in animal husbandry
Product Data:
|
Model Dimensions |
DNY1.0 |
DNY1.5 |
DNY2.0 |
Remark |
|||
Belt Width (mm) |
1000 |
1500 |
2000 |
|
|||
Low Concentration |
Capacity (m³/h) Inlet concentration |
15 ~ 20 |
25 ~ 33 |
35 ~ 45 |
Based on the kinds of sludge |
||
Dried sludge (kg/h) |
60 ~ 120 |
100 ~ 198 |
140 ~ 270 |
Based on the kinds of sludge |
|||
Middle Concentration |
Capacity (m³/h) Inlet concentration (S.S. 0.8 ~ 1.5%) |
12.5 ~ 15 |
20 ~ 25 |
30 ~ 35 |
Based on the kinds of sludge |
||
Dried sludge (kg/h) |
100 ~ 188 |
160 ~ 300 |
240 ~ 450 |
Based on the kinds of sludge |
|||
Mud Cake Water Content’s Rate (%) |
75~85 |
75~85 |
75~85 |
Based on the kinds of sludge |
|||
Power Consumption (kw) |
Driving Motor ( Frequency control) |
0.37 |
0.75 |
0.75 |
|
||
Disposal Agitaor Motor |
0.37 |
0.37 |
0.55 |
|
|||
Filter Belt Thickener |
0.37 |
0.55 |
0.55 |
|
|||
Lower Collecting Tray For Pressed Filtrate |
No |
No |
No |
|
|||
External Dimensions |
L |
4950 |
5200 |
5400 |
Pls offer practical installation dwgs before ordering |
||
W |
1650 |
2150 |
2650 |
||||
H |
2800 |
2850 |
2900 |
||||
Base Dimension L1×H1 (mm) |
4050×2300 |
4150×2350 |
4200×2500 |
|
|||
Base Dimension L2×W1 (mm) |
2580×1400 |
2580×1900 |
2580×2400 |
|
|||
Reference Weight ( kg) |
1650 |
2150 |
2900 |
|
|||
Product Details:
BOEEP belt filter Press, which is a latest advancedsludge dewatering technique. It’s characterized by small footprint and wide applications. It can be used for different sludgein varieties of industries includingpetrochemical processing, light industry,electroplating, printing & dyeing, food & beverage, chemical fiber, paper-making, proteins,livestock, pharmacy and leather etc.
The concentration belt sludge filter Press is slightly influenced by the load fluctuation of sludge and the water content’s rate of sludge cakes is low. The machine is easy for worker’s operation and management.
Treatment Flowchart:
Project Site:
