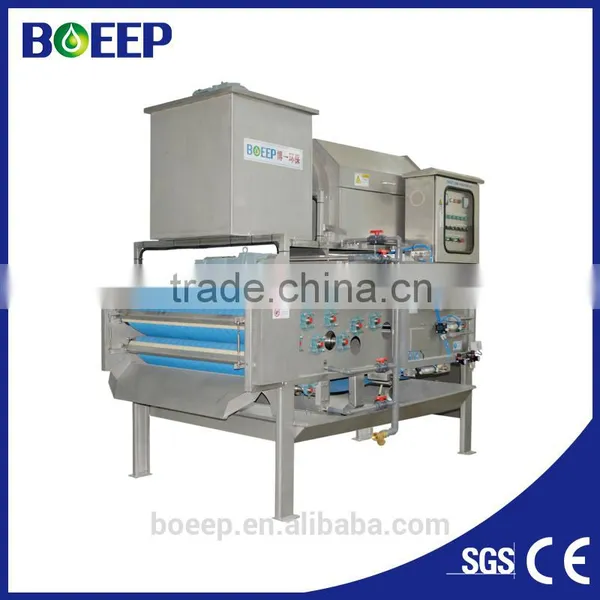

sewage treatment plant belt filter press dewatering equipment
ZDY-TypeDrum enrichment belt filter press dewatering machine: mainly used to treat sludge which is ready to be concentrated through rotating and concentrating(e.g. residual sludge in Method A/O). This equipment has double functions of sludge concentrating and dewatering,and its treating capacity increase more than that of old press filter.
Features:
1,Pneumatic cylinder sensor calibration system to control the filter cloth displacement principle of operation in a certain range.
2,Spring loaded tensioning device can adjust the tension according to the need to reduce the moisture content of the filter cake.
3,Continuous processing, and high efficiency.
4,Compact construction make the equipment suitable for narrow site
5,Operation and maintenance is easy with low labor costs.
6,Our company with professional environmental engineering background can standardized mass produce this kind of equipment.
Selection and dimension table:
Model parameters:
|
Type Dimensions |
ZDY1.0 |
ZDY1.5 |
ZDY2.0 |
Note |
|
Belt width(mm) |
1000 |
1500 |
2000 |
|
|
|
Treatment capacity Inlet sludge concentration (SS1-5%) |
6.5~10.5 |
12~20.5 |
18~30 |
Depending on the types of sludge |
|
D.S Dried sludge(kgds/h) |
98~158 |
180~308 |
240~450 |
Depending on the types of sludge |
|
Moisture content of the filter cake(%) |
75~85 |
75~85 |
75~85 |
Depending on the types of sludge |
|
Service power(kw) |
The motor for driving belt(frequency control) |
0.37 |
0.75 |
0.75 |
|
The motor for mixing |
0.37 |
0.55 |
0.75 |
|
|
The motor for drum thickener |
0.37 |
0.55 |
0.55 |
|
|
RC Collecting Tray for Filtrate |
With |
With |
Without |
|
|
Reference appearance size(mm) |
L |
2600 |
3300 |
3450 |
Before ordering, please ask for the actual installation size drawing |
W |
1550 |
2150 |
2900 |
||
H |
2540 |
2550 |
3100 |
||
Base dimension L1 x W1(mm) |
2100 x1330 |
2450 x1860 |
2715 x2420 |
|
|
Reference weight (kg) |
1210 |
2200 |
2850 |
|
|
Application area:
Working shop:
Domestic and abroad exhibition
If you are interested in our products,please feel free to contact us.
