Chemical sewage sludge dewatering filter press machine

Chemical sewage sludge dewatering filter press machine

 Specifications:

1.automatic filter cloth washing
2.long life belt cloth
3.save energy
4.High capacity

Product Features :

1.  Material of the main structure : SUS304/316

2.  Belt : Has a long service life

3.  Low power consumption, slow-speed of revolution and low noise,

4.  Adjustment of belt: Pneumatic regulated, ensures the stability of the machine

5.  Multi-point safety detection and emergency stop device:improve the operation.

6.  The design of the system is obviously humanized and provides convenience in operation and maintenance.

Product Application:

1. Sludge dewatering of industry waste water

2. Separation of liquid and solid in food, chemical and mining industries

3. Sludge dewatering in butching and animal husbandry

Product Data:

 Product Details:

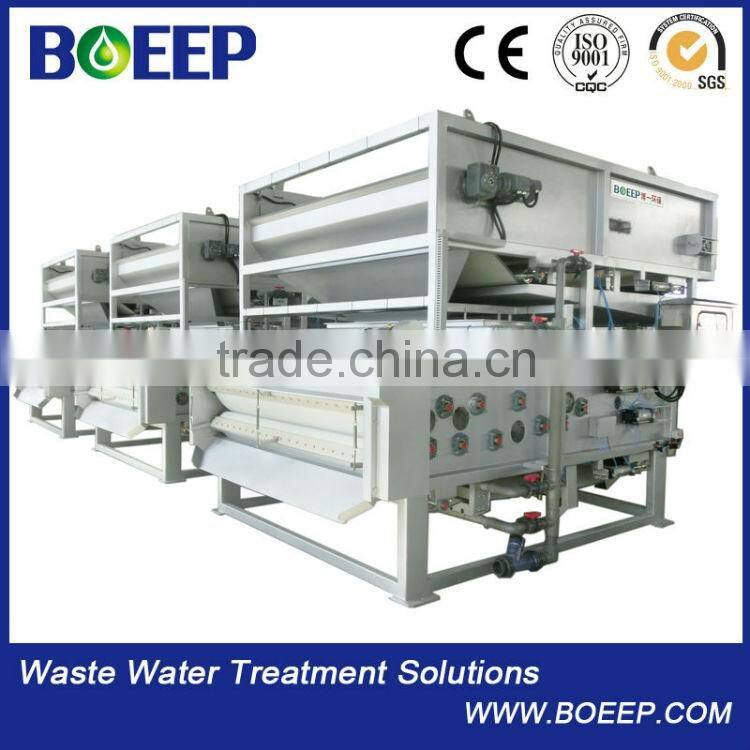

BOEEP belt filter Press, which is a latest advancedsludge dewatering technique. It’s characterized by small footprint and wide applications. It can be used for different sludgein varieties of industries includingpetrochemical processing, light industry,electroplating, printing & dyeing, food & beverage, chemical fiber, paper-making, proteins,livestock, pharmacy and leather etc.

The concentration belt sludge filter Press is slightly influenced by the load fluctuation of sludge and the water content’s rate of sludge cakes is low. The machine is easy for worker’s operation and management.

We have two types of belt filter press:

1.     Rotary Drum Thickening/Dehydrating Belt Filter Press (ZDY TYPE)

2.     Gravity Belt Thickening/Dehydrating Belt Filter Press (DNY TYPE)

1. ZDY TYPE

ZDY-Type Drum enrichment belt filter press dewatering machine: mainly used to treat sludge which is ready to be concentrated through rotating and concentrating(e.g. residual sludge in Method A/O). This equipment has double functions of sludge concentrating and dewatering,and its treating capacity increase more than that of old press filter.

 2. DNY TYPE

Treatment Flowchart:

Working shop Processing capacity:

Project Site:

Our Dewatering Process:

Scope of Work:
BOEEP evaluate all impending work to offer our clients the best possible cost effective solution.

Processing:
Our dewatering plants are stand alone units with associated equipment including power generating sets, automatic polymer mixing storage and dosing systems, pontoon mounted submersible mixers and feed pumps, cake conveyers and all interconnecting hoses and cables.

Our range of dewatering plants are capable of processing 20 – 85m3/h on most sludges. These plants can process up to 3.5 dry tones of biosolids per hour (17 wet tones), with a cake dryness of over 20% and separation efficiency of 99.98%

Biosolids Transport:
Processed biosolids are conveyed directly into various truck and trailer combinations for transport offsite to landfill or reuse options. All trucks comply with regulations for the transport of processed biosolids.
