Uncompressed Fiber Optic Extender 1080p 60hz HDMI Media Converter 10km Over Single Mode
US$ 1 - 210
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
PWAY
Model Number:
THF106H
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HDMI Extender 1080P EDID Pass-through With KVM SignalUS$ 1 - 565MOQ: 1 Piece -
Wholesale China Products Standard 10km Optical Transmitter PriceUS$ 1 - 129MOQ: 1 Set
-
HDMI KVM Extender Simple to Install Plug and PlayUS$ 1 - 565MOQ: 1 Piece
-
RS232 Signal Unidirectional Transmission 10km Hdmi to Fiber Extender With AudioUS$ 1 - 258MOQ: 1 Set
-
China Supplier 1080p Video Fiber Optic Transmitter Receiver Support EDID and ESD Protection SystemUS$ 1 - 220MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
PWAY
Model Number
THF106H

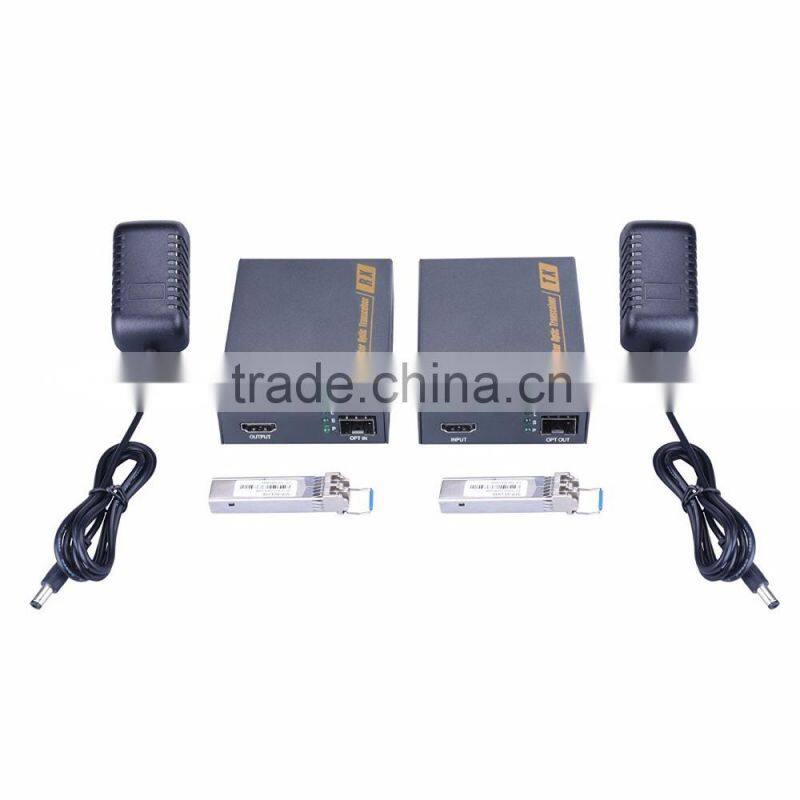

Uncompressed Fiber Optic Extender 1080p 60hz HDMI Media Converter 10KM

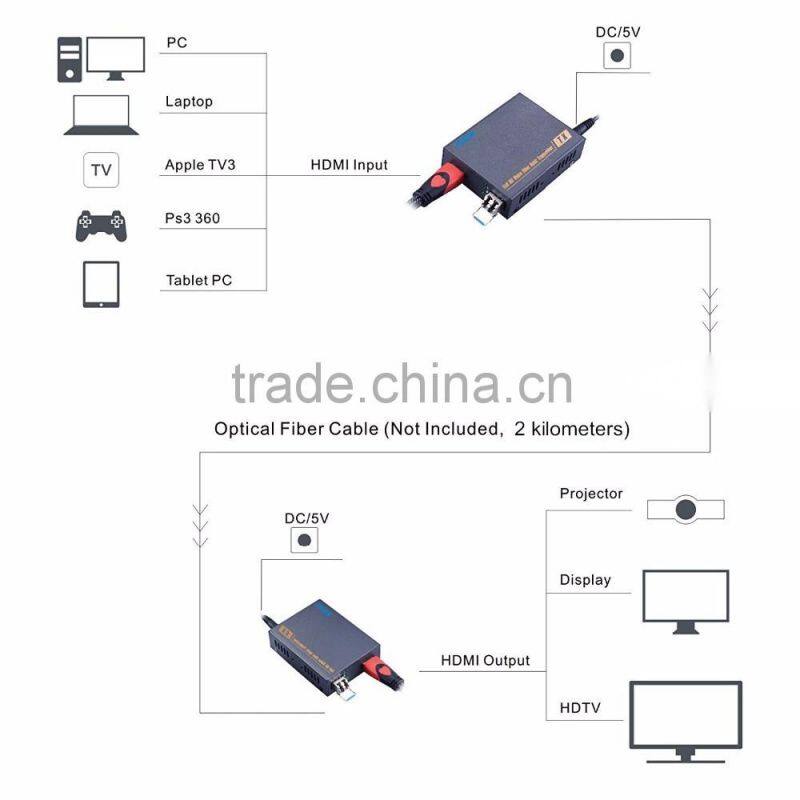

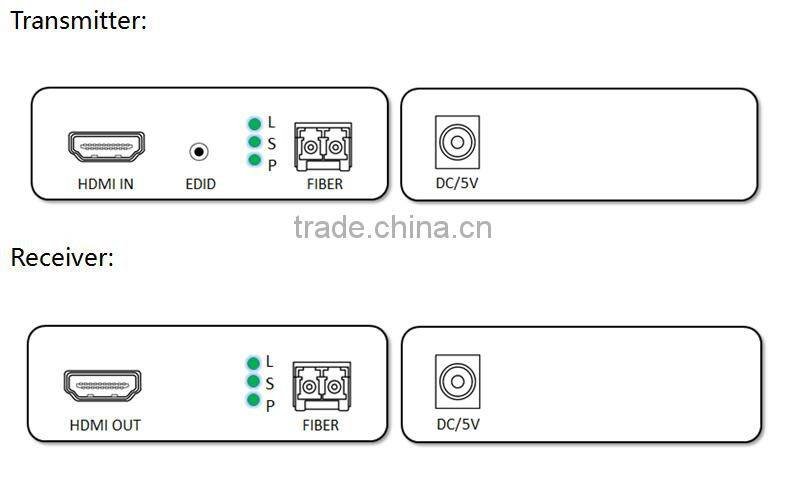

Instructions for use
Specification
- Transmits HDMI video signals up to 2km-10km over one fiber optic cable;

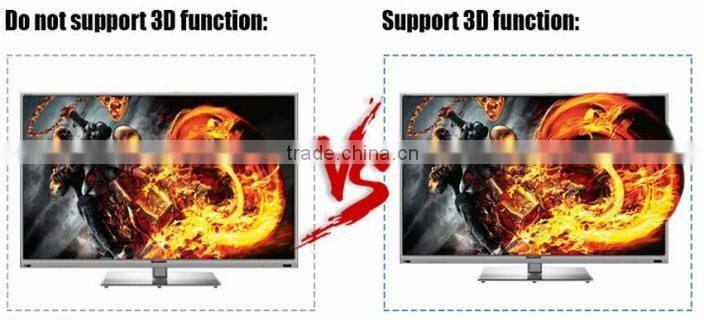

- Support video resolution up to 1920*1080@60Hz, 3D signal;

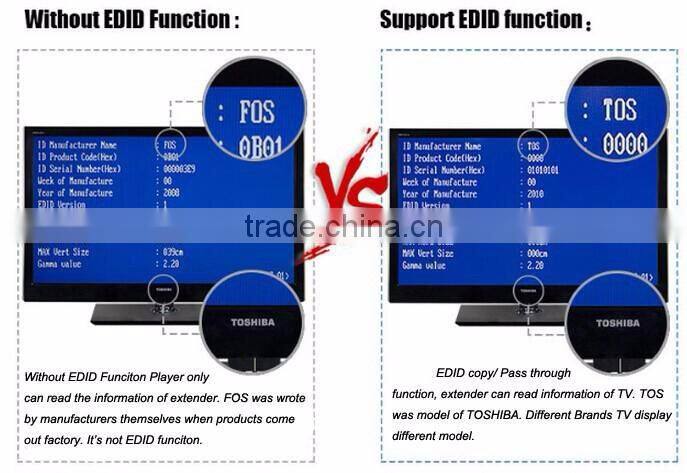

- Support copy EDID, can match many kind display device;
- Compliance with HMDI 1.3 and HDCP 1.2 standard;
- High compatibility, can auto-match source and display device;
- Built-in automatic adjustment system, make the image smooth, clear and stable;
- Built-in ESD protection system;
- Simple to install, plug and play;
Parameter | Description | |
Video | Standards | HDMI 1.3; HDCP 1.2 |
Maximum pixel clock | 165MHz | |
Maximum data rate | 6.75Gbps | |
Resolution range | Up to 1920X1080@60Hz | |
Connector | Female HDMI type A | |
Impedance | 100Ω | |

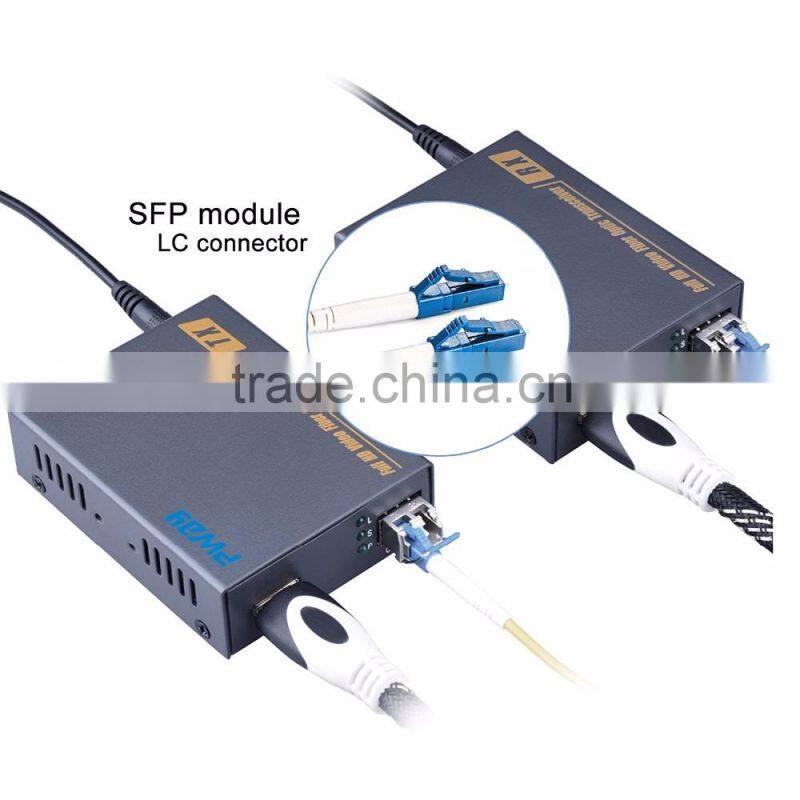

Optical fiber | Interface | SFP model – LC connector |
Fiber type | Single-mode | |
Wavelength | Single-mode 1310nm | |
Interface bandwidth | 10Gbps | |
Transmission distance | Single-mode : standard 2km;maximum 10km | |
Other | Power supply | The power adapter: DC 5V/2A |
Power dissipation | MAX 5W | |
Temperature | Operating: -5℃ ~ +70℃ | |
Humidity | Operating: 5% ~ 90% | |

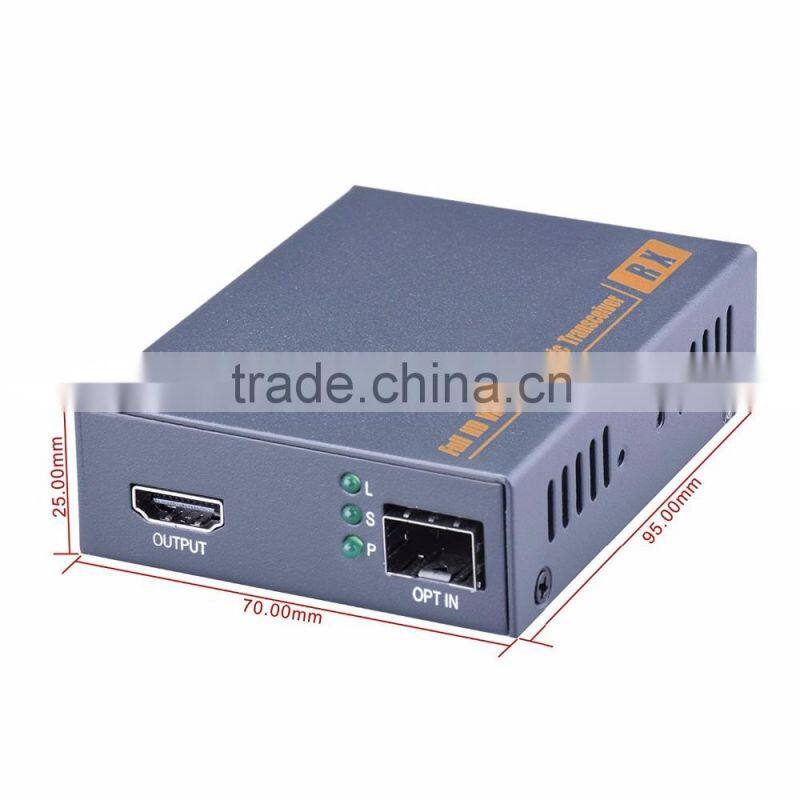

Dimension | 94.5*73*26mm | |
The warranty | 1 year free warranty | |

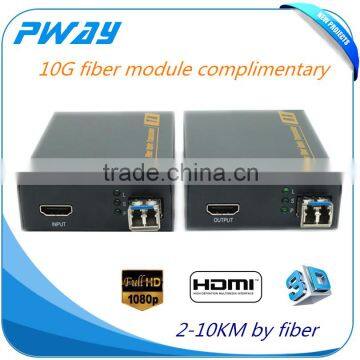

Details Pictures:

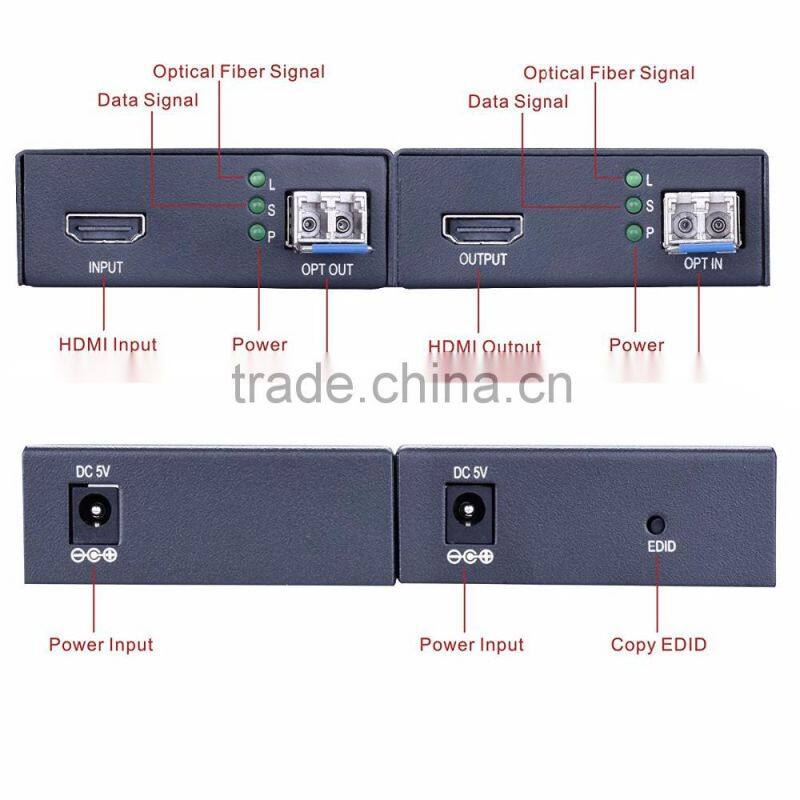

Good function :
Related Products
If this fiber optic extender cannot meet your demand.
Pls click on the image as below to browse more our main products.
Hope you can find the one as you want.
Company Information
____________ Factory Advantage ____________
Certifications
After-sales service |
| If customer find quality problems within 15 days after received merchandise, please note us , we will pay highly attention to this matter, we will communicate with customer to confirm the issue is caused by man-made or products. Then we will make solution with relevant department and feedback to customer on time. |
| Customer service |
| your inquiry or questions will be reply within 24 hours except holidays in China. and you can talk with our online sales on our webpage or find us on Skype, Alibaba TM , MSN etc for a fast communication. |
| About shipping |
| DHL , UPS , TNT , Fedex : Process time + shipping time take 2-6 days to most of countries if without custom clearance problem , but might meet custom duty . Shiping by DHL, EMS, FEDEX, UPS , TNT , AIR CARGO, SEA CARGO, CONTAINER etc according to specific order with standard packaging. |
