Product Details
| Brand Name | PINWEI | Model Number | PW-THF106M | |
| Place of Origin | Guangdong, China |
Product Description
| product name | HDMI fiber extender |
| model number | PW-THF106M |
| 008613534298863 | |
| skype | sallyzhuang999 |

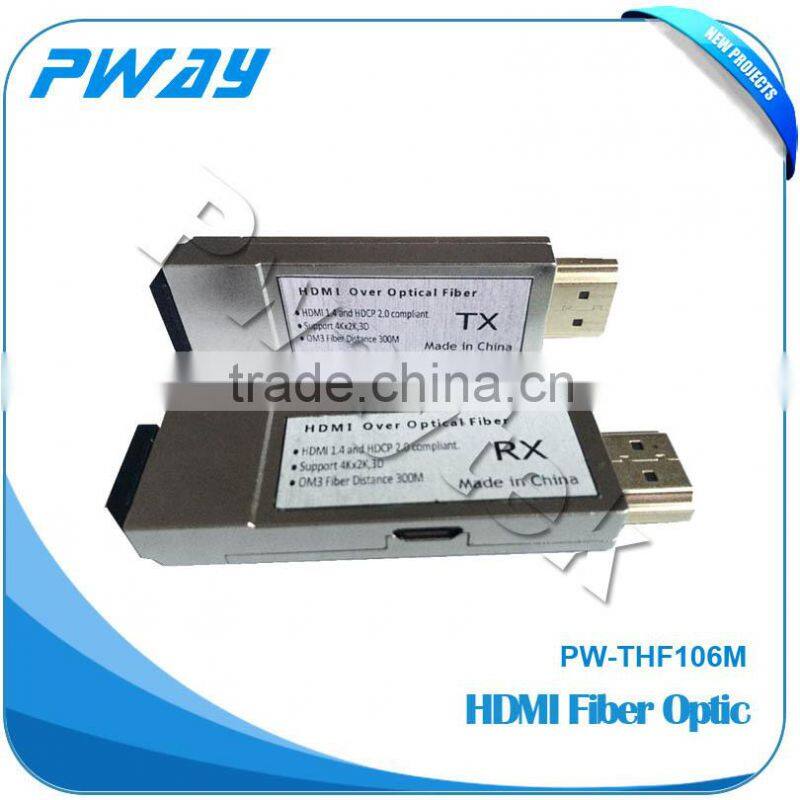

Pinwei PW-THF106M distance upto 300m 4K2K HDMI fiber optic extender
Uncompress HDMI Optical Transceiver
PW-THF106M are enclosed HDMI optical modules designed to support transmission of an uncompressed lossless HDMI 1.4a signal over multimode optical fiber at 850nm, up to distances of 300m, at a resolution of 4Kx2K. PW-THF106M-T converts an HDMI signal to a single 10Gb/s serial data stream for transmission over two optical fibers. PW-THF106M-R converts the serial data back to an HDMI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China.

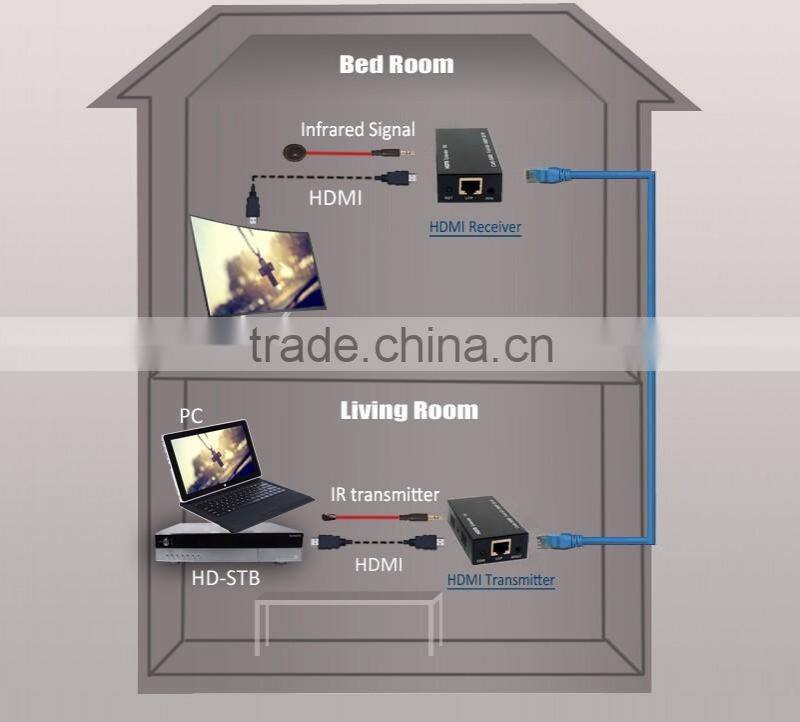

This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.
Feature:
1.HDMI 1.4, HDCP1.2 Standard;
2.DDC CEC HPD Signal Support
3..Supports up to 300m Transmission Distance at up to 10.2Gbps with OM3
4.Multimode Fiber
5.Supports All Modes up to 4Kx2K,3D, 1920*1080@60Hz Resolution
6.Standard HDMI Connector
7.Integrated USB Connector for Power
8.Double Power Supply (HDMI 5V&USB)
9.Hot-Pluggable
10.EMI/RFI Resistant
11.850nm VCSEL and PIN Photodetector
12.2-Wire Interface
13.Typical Power Dissipation 1420 mW
14.(Source), 1220 mW (Sink)
15.Operating Case Temperature: 0~70°C
Application:
