Factory price Newest optical fiber transmission system
Introductions:
The HDMI Fiber optic extender provides extension of HDMI and 3D signals long distances over one fiber optic cable, it supports high resolution up to 1080P, transmitter local output, external stereo audio and SPDIF audio transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features:
- Transmits HDMI video and audio signals up to 2km-10km over one fiber optic cable;
- Support video resolution up to 1920*1080P@60Hz, 3D signal;
- Transmitter support one channel HDMI local output;
- Support external stereo audio transmission and SPDIF audio output;
- Compliance with HDMI 1.3 and HDCP 1.2 standard;
- High compatibility, can auto-match source and display device;
- Built-in automatic adjustment system, make the image smooth, clear and stable;
- Built-in ESD protection system;
- Simple to install, plug and play.
Parameter | Description | |
Video | Standards | HDMI1.3;HDCP1.2 |
Maximum pixelclock | 165MHz | |
Maximum data rate | 6.75Gbps | |
Resolution range | Upto1920X1080P@60Hz | |
Connector | Female HDMI type A | |
Impedance | 100Ω | |
Audio | Interface | RC Aport,fibe roptic SPDIF socket |
Signal type | RC Astereo,5.1channel | |
Opticalfiber | Interface | SFP model–L Cconnector |
Fiber type | Multi-mode/single-mode(optional) | |
Wave length | Multi-mode850nm/ Single-mode1310nm(optional) | |
Interface band width | 6.25Gbps | |
Transmission distance | OM3 multi-mode fiber:maximum300m, Single-mode fiber:Standard2km;Maximum10km | |
Other | Power supply | The power adapter:DC5V/2A |
Power dissipation | MAX5W | |
Temperature | Operating:-5℃~+70℃ | |
Humidity | Operating:5%~90% | |
Dimension | 165*80*30mm | |
The warranty | 1 year free warranty | |
Pictures:
Panel Descriptions:

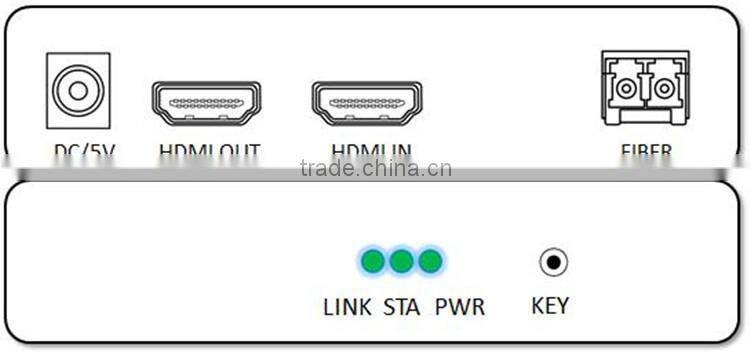

Transmitter:

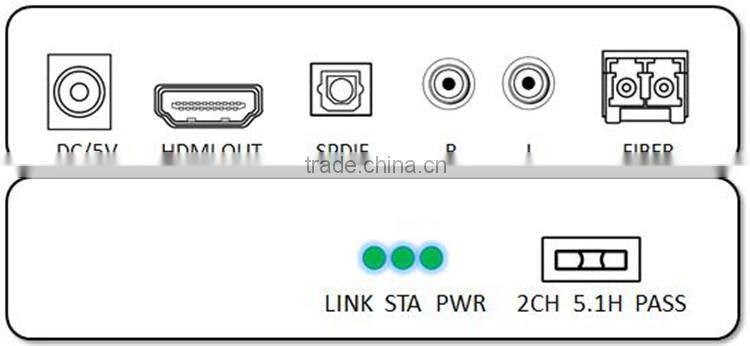

Receiver:
Installation:
1.Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver,
2.Connect an HDMI cable between the HDMI input port of transmitter and the HDMI output port of the video source, 3.Connect the HDMI output port of receiver to the display device with HDMI cable,
4.Connect the transmitter optical port to the receiver optical port using one fiber optic cable.
ApplicationDiagram

If this product can not meet your demand.Pls click on the image as below to browse more our main products.Hope you can find the one as you want.

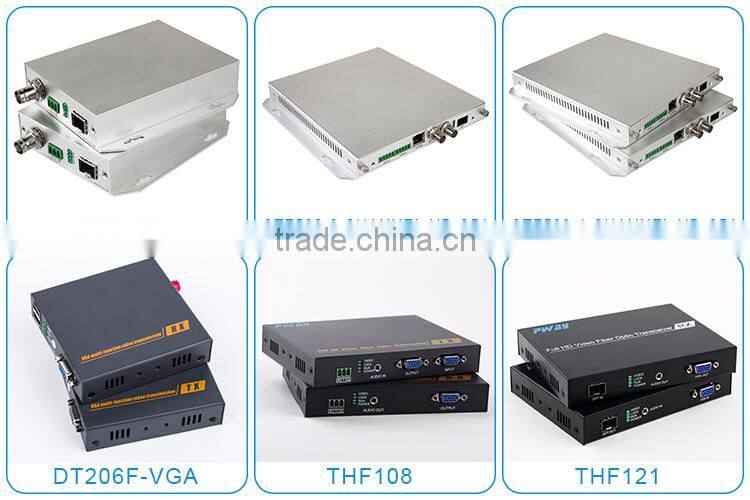

More Products:
