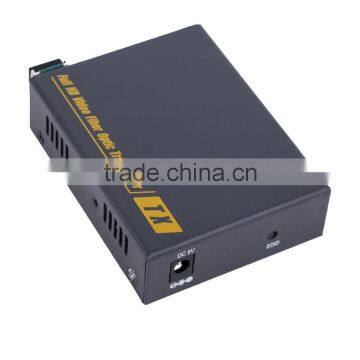

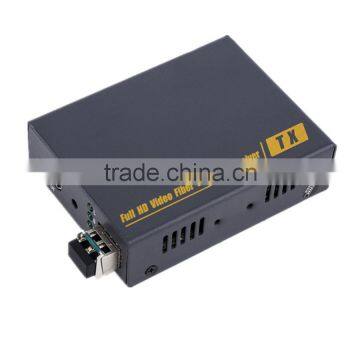

10km 10Gbps Fiber Optic HDMI Transmitter Receiver up to 1920*1200p 60hz and 3D Over Single Mode
US$ 1 - 190
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
PWAY
Model Number:
THF106H
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Support Video Resolution up to 1920*1080P@60Hz and 3D Signal Transmitter and Receiv or Hot ReceiverUS$ 145 - 258MOQ: 1 Set -
Newest 300M Hdmi OM3 Multi Mode Fibre Optic Extender With RS232 Signal Transmission up to 1080P@60HzUS$ 1 - 246MOQ: 1 Set
-
Pinwei Distance Upto 10KM Support RS232 HDMI Fiber ExtenderUS$ 1 - 245MOQ: 1 Pair
-
Supports All Modes up to 4Kx2Kx30 Resolution Mini USB Transmitter ReceiverUS$ 1 - 190MOQ: 1 Set
-
Factory Supply 1080P HDMI Fiber Optic Transceiver 10km Support RS232US$ 1 - 500MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
PWAY
Model Number
THF106H

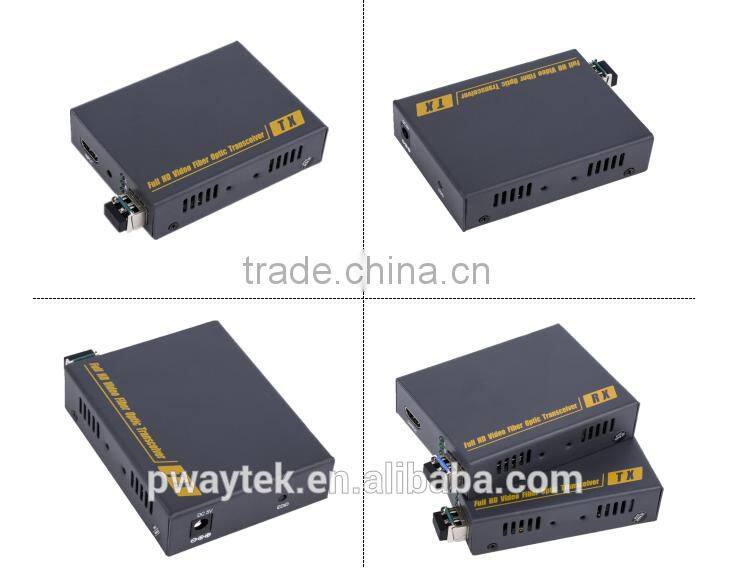

10km 10Gbps fiber optic HDMI transmitter receiver up to 1920*1200p 60hz and 3D over single mode
Instructions for use
Product Description
Features
Specification
- Transmits HDMI video signals up to 2km-10km over one fiber optic cable;
- Support video resolution up to 1920*1200@60Hz, 3D signal;
- Support copy EDID, can match many kind display device;
- Compliance with HMDI 1.3 and HDCP 1.2 standard;
- High compatibility, can auto-match source and display device;
- Built-in automatic adjustment system, make the image smooth, clear and stable;
- Built-in ESD protection system;
- Simple to install, plug and play;
Parameter | Description | |
Video | Standards | HDMI 1.3; HDCP 1.2 |
Maximum pixel clock | 165MHz | |
Maximum data rate | 6.75Gbps | |
Resolution range | Up to 1920X1200@60Hz | |
Connector | Female HDMI type A | |
Impedance | 100Ω | |
Optical fiber | Interface | SFP model – LC connector |
Fiber type | Single-mode | |
Wavelength | Single-mode 1310nm | |
Interface bandwidth | 10Gbps | |
Transmission distance | Single-mode : standard 2km;maximum 10km | |
Other | Power supply | The power adapter: DC 5V/2A |
Power dissipation | MAX 5W | |
Temperature | Operating: -5℃ ~ +70℃ | |
Humidity | Operating: 5% ~ 90% | |
Dimension | 94.5*73*26mm | |
The warranty | 1 year free warranty | |

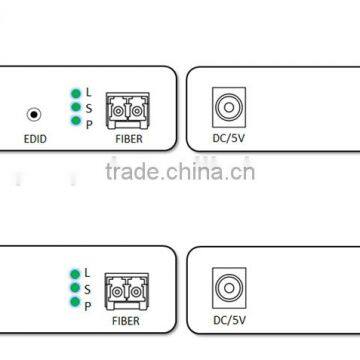

Panel
