2km-10km resolution up to1080P HDMI Fiber Extender support 3D Over one fiber optic cable
Description

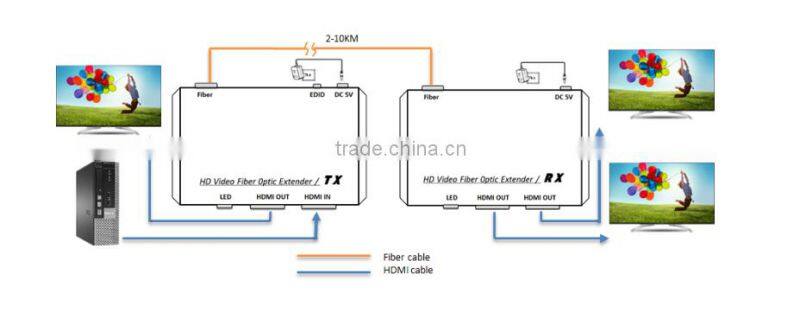

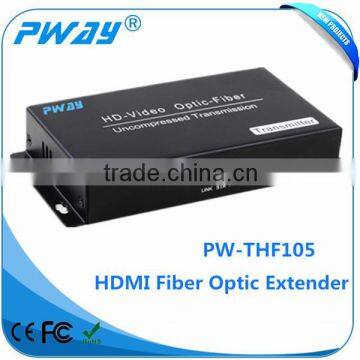

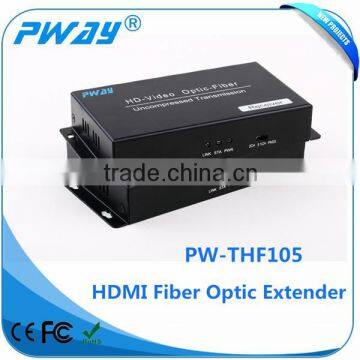

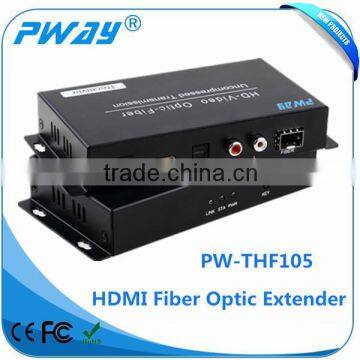

The PW-THF105 Fiber optic extender provides extension of HDMI and 3D signals long distances over one fiber optic cable, it supports high resolution up to 1080P, transmitter local output, external stereo audio and SPDIF audio transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
- Transmits HDMI video and audio signals up to 2km-10km over one fiber optic cable;
- Support video resolution up to 1920*1080P@60Hz, 3D signal;
- Transmitter support one channel HDMI local output;
- Support external stereo audio transmission and SPDIF audio output;
- Compliance with HDMI 1.3 and HDCP 1.2 standard;
- High compatibility, can auto-match source and display device;
- Built-in automatic adjustment system, make the image smooth, clear and stable;
- Built-in ESD protection system;
- Simple to install, plug and play;
Specification
Parameter | Description | |
Video | Standards | HDMI 1.3; HDCP 1.2 |
Maximum pixel clock | 165MHz | |
Maximum data rate | 6.75Gbps | |
Resolution range | Up to 1920X1080P@60Hz | |
Connector | Female HDMI type A | |
Impedance | 100Ω | |
Audio | Interface | RCA port, fiber optic SPDIF socket |
Signal type | RCA stereo, 5.1 channel | |
Optical fiber | Interface | SFP model – LC connector |
Fiber type | Multi-mode / single-mode (optional) | |
Wavelength | Multi-mode 850nm / Single-mode 1310nm(optional) | |
Interface bandwidth | 6.25Gbps | |
Transmission distance | OM3 multi-mode fiber: maximum 300m, Single-mode fiber: standard 2km;maximum 10km | |
Other | Power supply | The power adapter: DC 5V/2A |
Power dissipation | MAX 5W | |
Temperature | Operating: -5℃ ~ +70℃ | |
Humidity | Operating: 5% ~ 90% | |
Dimension | 165*80*30mm | |
The warranty | 1 year free warranty | |

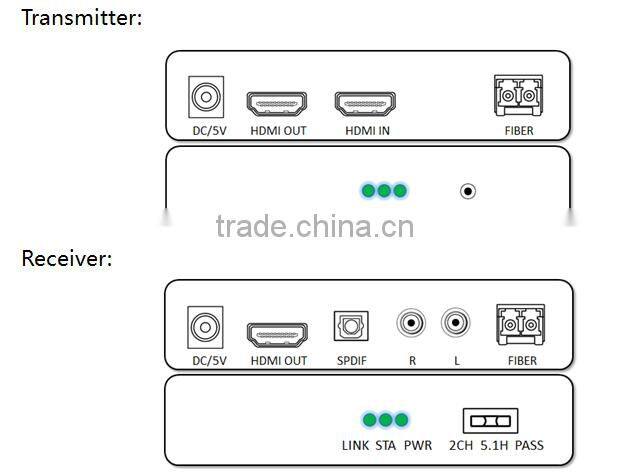

Panel
Port name | Description |
HDMI IN/OUT | HDMI signal input/output |
R/L | Stereo audio output |
SPDIF | SPDIF audio output |
Fiber | SFP model --- LC connector |
KEY | Press 3 second to select 2D SSID Press 5 second to select 3D SSID |
SWITCH | 2CH: select stereo audio output 5.1CH: select SPDIF audio output PASS: select HDMI audio output |
DC/5V | Power adapter socket |
LED indicator | Description |
LINK | Optical fiber signal connection indicator |
STA | Video signal connection indicator |
PWR | System power indicator |

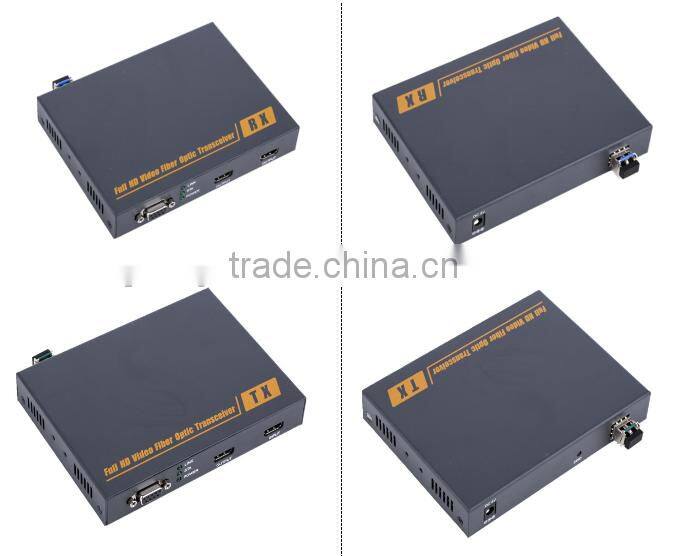

Pictures
Our Services
After-sales service |
If customer find quality problems within 15 days after received merchandise, please note us , we will pay highly attention to this matter, we will communicate with customer to confirm the issue is caused by man-made or products. Then we will make solution with relevant department and feedback to customer on time. |
Customer service |
Your inquiry or questions will be reply within 24 hours except holidays in China. and you can talk with our online sales on our webpage or find us on Skype, Alibaba TM , MSN etc for a fast communication. |
| Introduction Shenzhen Pinwei Technology Co., Ltd. is a company engaged in wireless video production accessories manufacturers, the company is located in Shenzhen Baoan Longhua Sea Star Technology park. |
Strong sales team We have laptop parts export experience more than 10 year.Excellent team and perfect after service make our business is an enjoyment. | |
| Production equipment Maintenance of factory production lines and equipment regular maintenance, make more smooth, the equipment will be worn down to the minimum. |

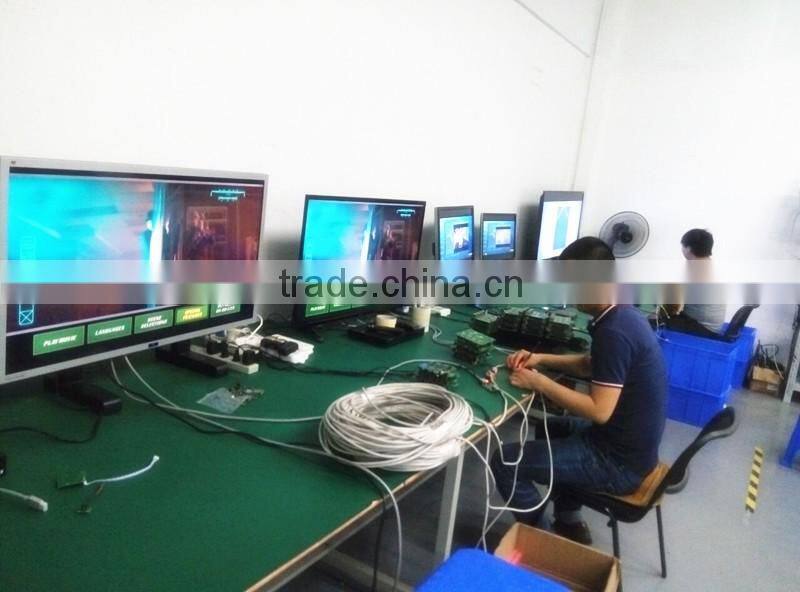

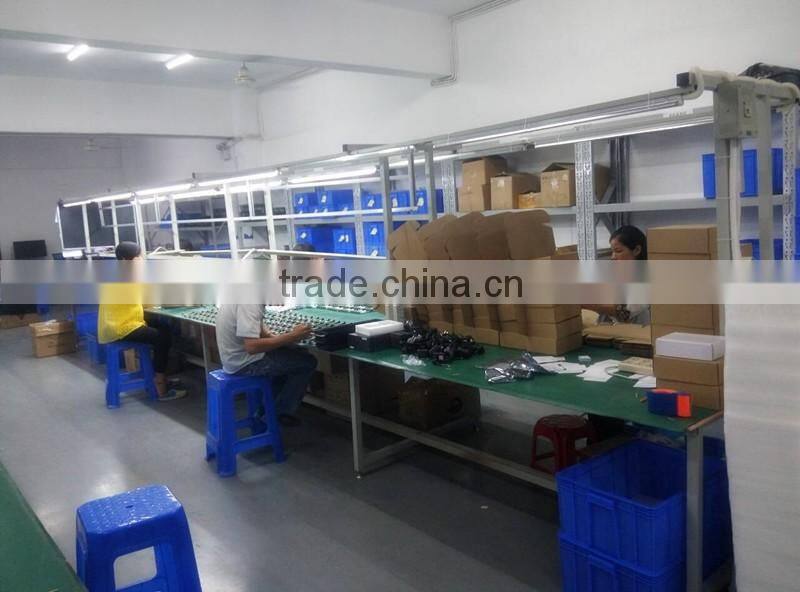

Production line Professional production lines and improve the process, prompted us to constantly improve the quality of products and delivery efficiency, I will continue to strive to improve in. | |

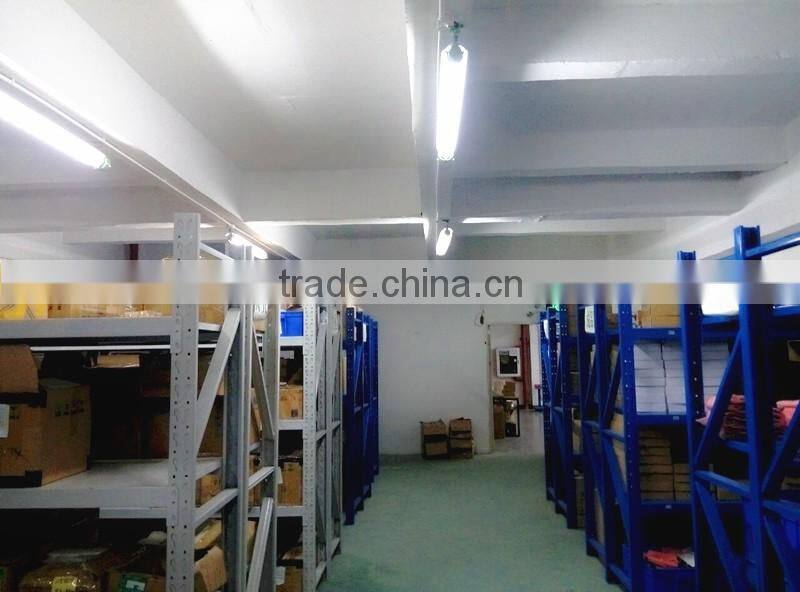

| Factory warehouse In cooperation with a number of companies, to ensure the timeliness of goods,The strict professional warehouse system to make our warehouse colleaguesarrangement efficiency and safety of goods transport. |
WHY DO YOU WANT TO CHOOSE OUR PRODUCT?
1.We are manufacturer specialize in producing HDMI,DVI,VGA,S-VIDEO,AV transmitter and receiver,
converter series products.
2.Quality is our culture. Pwaytek people always attached great importance to quality controlling from start
to finish.
3.We think our product will give an edge over your conpetitors.
4.If we are honor to become your supplier in China, you will enjoy the best after-sales service.
5.We can provide good service for many large company,such as Goldman Sachs.
Where is your factory ? Can I have a visit?
Add:5/Floor,Mantong Building,Dafu Road ,Aobei Community ,Guanlan Street,Longhua District,Shenzhen,Guangdong Province, China
, SHEN ZHEN SHI PIN WEI TECHNOLOGY LIMITED
Can I buy samples from your company?
We can provide samples .Contact me to talk about the details please.
Email:sales11 .
Skype: aapw662
whatsapp:+86 13927772549
How about the payment terms?
We accept paypal ,T/T, Western Union......
