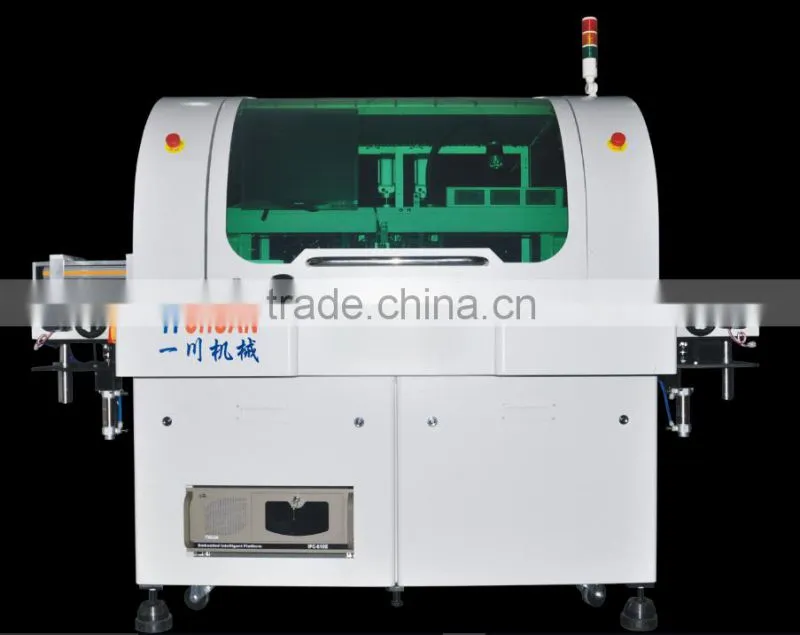

ZX-680S Full Automatic High-speed Piece Inserting Machie
Specification:
Overall dimension:2250*1300*1600mm Weight:1000KG
Air: 6+/-0.5kg/cm2(air consumption: 656N/min)
Power:AC220V,single-phase50/60HZ,1.4KW
Noise:80dB
Operating enviroment:5-40℃
Humidity:10-90%RH(it can be used as long as there are no crystal beads in the air) Requirements for the surronding enviroment:no corrossive gas Movement dimension of the workbench:X680mm, Y370mm,Multi-direction X580mm,Y370mm Bilatery.
Movement speed of workbench:22.5m/min
PCB electric circuit board:500*350Max
Flow direction of PCB:L-R,R-L
Inserting direction: 0, 90, 180,270 degrees or multi-angle.
Plugging speed:140-220PCS/min
External communication funtion: by RS-485 interface.
Installation time of electric circuit board:4s Component iserted:all kinds of conventional and special-shape end pieces and circled pin end pieces.
Quantity of inserting heads:1-3(based as required)
Hole correction mode:CCD HD indusrial camera angle system
Display system:17inch color LCD

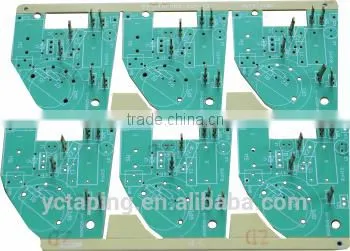

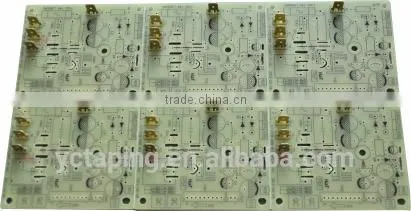

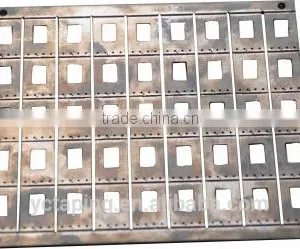

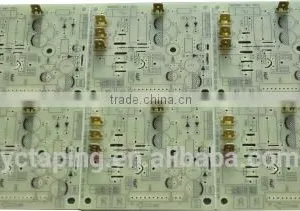

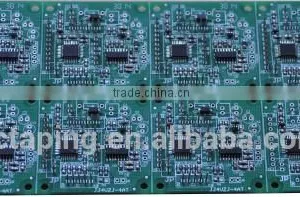

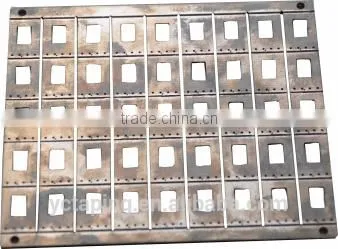

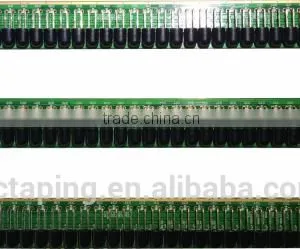

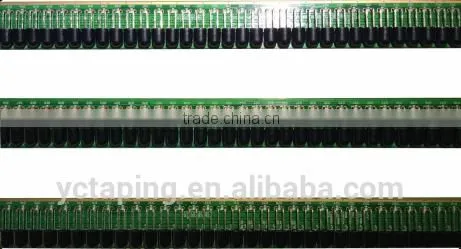

Device Function

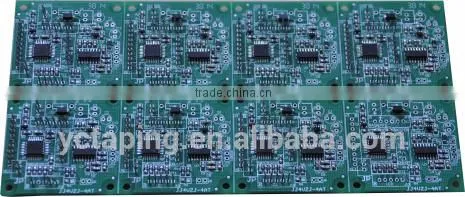

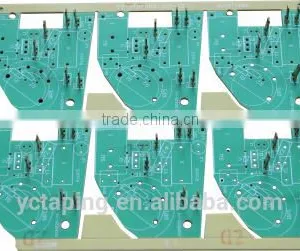

This equipment is used for inserting all kinds of circled ends to the electronic circuit board(PCB) automatically,precisely and effectively through cam transmission mechanism after cutting them into single bulk end automatically and making them adhesive strength. The system is reliable with complete monitoring, programming, diagnosis and operation functions. Intelligent control becomes possible.
