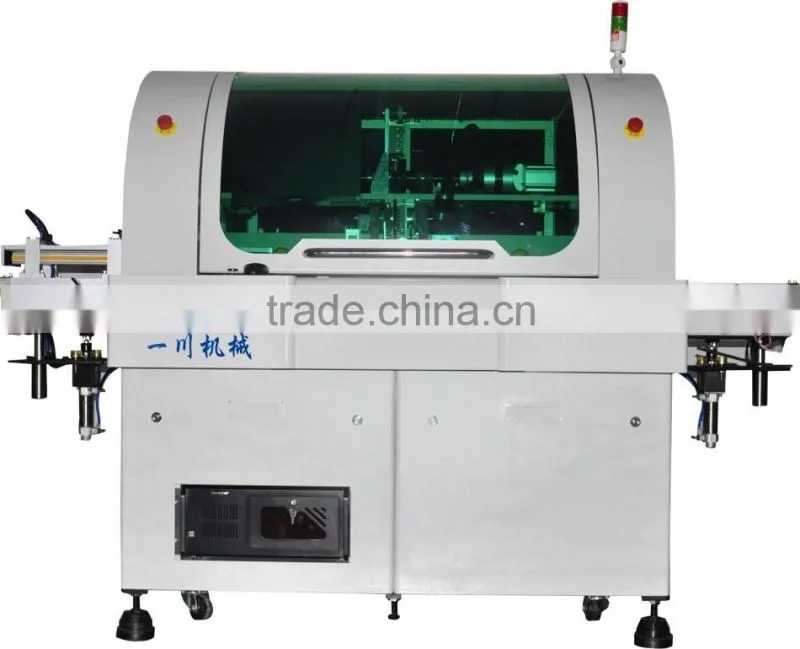

Help CenterZX-650 Full Automatic Special-shape Piece Inserting Machine
Related Products
-
ZX-600 Full Automatic Four Head Riveting MachineUS$ 27,000 - 43,999MOQ: 1 Set -
BCM Press Fit Pin Insertion MachineUS$ 100,000 - 1,000,000MOQ: 1 Set
-
Pin Insertion Machine of Automotive Fuse AssemblyUS$ 100,000 - 1,000,000MOQ: 1 Set
-
Terminal Inserted Machine of PCB AssemblyUS$ 100,000 - 1,000,000MOQ: 1 Set
-
Fuse Automatic Stitching MachineUS$ 53,999 - 76,999MOQ: 1 Set
Device Function
This equipment is used for inserting all kinds of bulk components to th eletric circuit board automatically through cam tranmission mechanism, precisely and effiently through air cylinder and making it adhesive strength. the system is reliable with compete monitoring,programming diagnosis and operation functions,Intelligent control bacomes possible.
Specification
Overall dimension:2250*1300*1600mm
Weight:1000KG
Air: 6+/-0.5kg/cm2（air consumption: 656N/min）
Power:AC220V,single-phase50/60HZ,1.4KW
Noise:80dB
Operating enviroment5-40℃
Humidity:10-90%RH(it can be used as long as there are no crystal beads in the air)
Requirements for the surronding enviroment:no corrossive gas
Movement dimension of the workbench:X680mm, Y370mm,Multi-direction X580mm,Y370mm Bilatery.
Movement speed of workbench:22.5m/min
Rotary table of the workbench
PCB electric circuit board:500*350Max
Flow direction of PCB: L-R, R-L.
Plugging speed:140-220PCS/min
External communication function:by RS-485 interface
Installation time of electric circuit board:4s

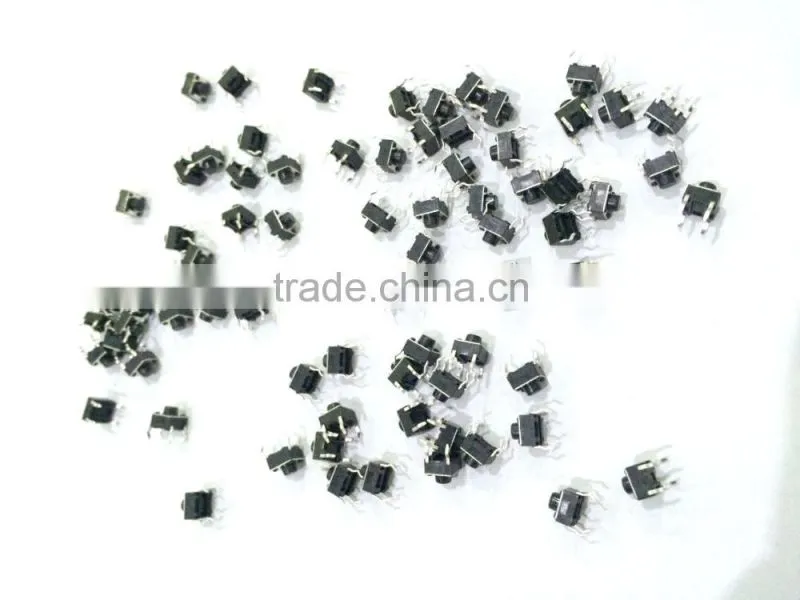

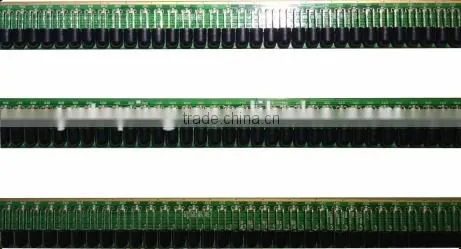

Component iserted:all kinds of conventional abd special-shape and pieces and circled pin end pieces.
Q'ty of inserting heads:1-3 based as required
Hole correction mode:CCD HD indusrial camera angle system
Computor control system:Intel Corei3 CPU Windows operation system
Display system:17inch color LCD
