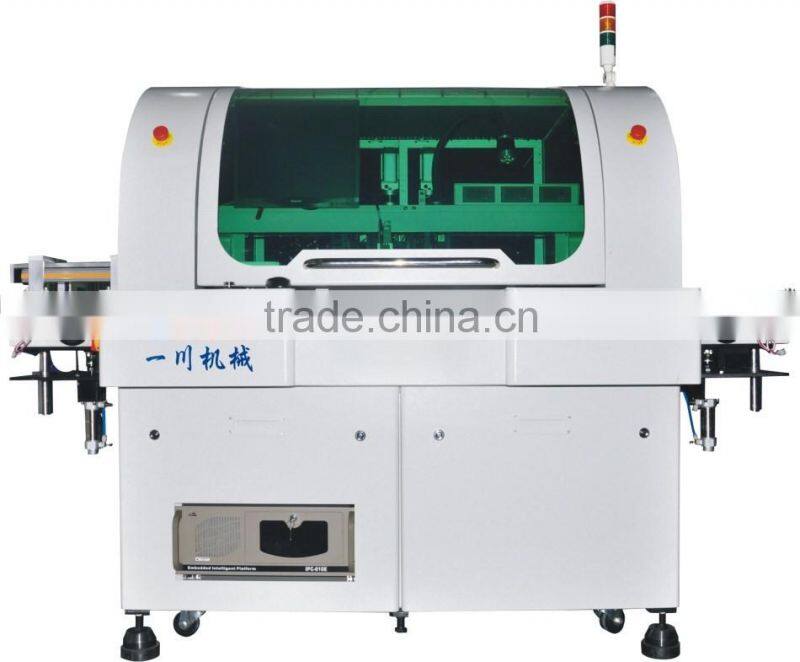

BCM Press Fit Pin Insertion Machine

ZX-680S Full Automatic BCM Press Fit Pin Insertion Machine

Function

This equipment is used for inserting the single circled linear hardware piece to the electronic circuit board(PCB) automatically,precisely and effectively through the inserting head after cutting them into single bulk end automatically and making them adhesive strength.

Specification:

• Overall dimension:2250*1300*1600mm
• Weight:1000KG
• Air: 6+/-0.5kg/cm2 air consumption: 656N/min
• Power:AC220V,single-phase50/60HZ,1.4KW
• Noise:80dB
• Operating enviroment5-40
• Humidity:10-90%RH(it can be used as long as there are no crystal beads in the air)
• Requirements for the surrounding environment:no corrossive gas
• Movement dimension of the workbench:X680mm, Y370mm,Multi-direction X580mm,Y370mm Bilatery.
• Movement speed of workbench:22.5m/min
• PCB electric circuit board:500*350Max
• Inserting direction: 0, 90, 180,270 degrees or multi-angle.
• Plugging speed:110PCS/min
• External communication function: by RS-485 interface.
• Installation time of electric circuit board:4s
• Component inserted:hardware piece of electric circuit board
• Quantity of inserting heads:1-3(based as required)
• Hole correction mode:By the angle system of the machine
• Computer control system:Intel Corei3 CPU Windows operation system
• Display system:17inch color LCD
• Fedding system:rolling feeding system.
