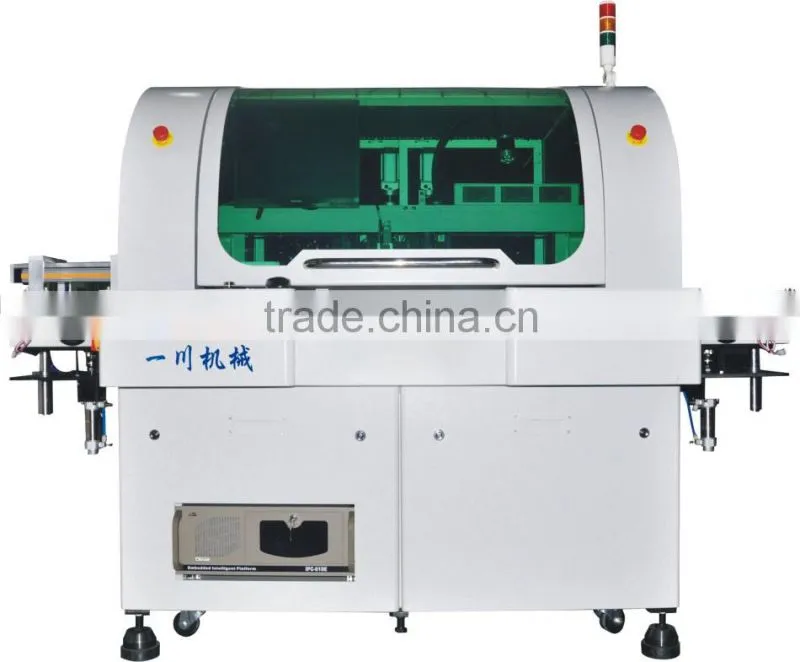

Pin Insertion Machine of Automotive Fuse Assembly
US$ 100,000 - 1,000,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
YICHUAN MACHINE
Payment & Shipping
Payment Methods:
Port of Shipment:
SEKOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Terminal Inserted Machine of PCB AssemblyUS$ 100,000 - 1,000,000MOQ: 1 Set -
Fuse Automatic Stitching MachineUS$ 53,999 - 76,999MOQ: 1 Set
-
Automatic Pin Insertion MachineUS$ 38,000 - 76,000MOQ: 1 Set
-
ZX-680S Full Automatic High-speed Pin Insertion MachieUS$ 38,500 - 53,900MOQ: 1 Set
-
ZX-650S Pin Insertion Machine for PCB AssemblyUS$ 43,999 - 54,999MOQ: 1 Set
Condition
New
Place of Origin
Guangdong, China
Brand Name
YICHUAN MACHINE
Model Number
ZX-680G
Voltage
220V 50/60Hz
Power(W)
3KW
Weight
700Kg
Dimension(L*W*H)
Packing Size L2600*W1900*2000mm
Certification
ISO9001
Warranty
1 Year
After-sales Service Provided
Overseas third-party support available
Pin Insertion Machine of Automotive Fuse case Assembly
Function
This equipment is used for inserting all kinds of circled ends to the electronic circuit board(PCB) automatically,precisely and effectively through cam transmission mechanism after cutting them into single bulk end automatically and making them adhesive strength.
The system is reliable with complete monitoring, programming, diagnosis and operation functions. Intelligent control becomes possible.
Specification:
Overall dimension:2250*1300*1600mm
Weight:1000KG
Air: 6+/-0.5kg/cm2（air consumption: 656N/min）
Power:AC220V,single-phase50/60HZ,1.4KW
Noise:80dB
Operating enviroment5-40℃
Humidity:10-90%RH(it can be used as long as there are no crystal beads in the air)
Requirements for the surronding enviroment:no corrossive gas
Movement dimension of the workbench:X680mm, Y370mm,Multi-direction X580mm,Y370mm Bilatery.
Movement speed of workbench:22.5m/min
PCB electric circuit board:500*350Max
Flow direction of PCB:L-R,R-L
Inserting direction: 0, 90, 180,270 degrees or multi-angle.
Plugging speed:140-220PCS/min
External communication funtion: by RS-485 interface.
Installation time of electric circuit board:4s
Component iserted:all kinds of conventional and special-shape end pieces and circled pin end pieces.
Quantity of inserting heads:1-3(based as required)
Hole correction mode:CCD HD indusrial camera angle system
Display system:17inch color LCD
