BX-130 2P Crimping Terminal Machine
US$ 4,599 - 7,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
YICHUAN
Model Number:
BX-130
Payment & Shipping
Payment Methods:
Port of Shipment:
SEKOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BX-180 Double Automatic Terminal MachineUS$ 10,999 - 19,999MOQ: 1 Set -
Bx-140 Automatic Tape Winding MachineUS$ 5,999 - 8,999MOQ: 1 Set
-
BX-160 Automatic Beat Terminal And Soldering MachineUS$ 10,999 - 26,999MOQ: 1 Set
-
BX-230 Automatic Wire Labeling MachineUS$ 7,999 - 18,999MOQ: 1 Set
-
Crimping ToolsUS$ 200 - 200MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
YICHUAN
Model Number
BX-130
Usage
Crimping

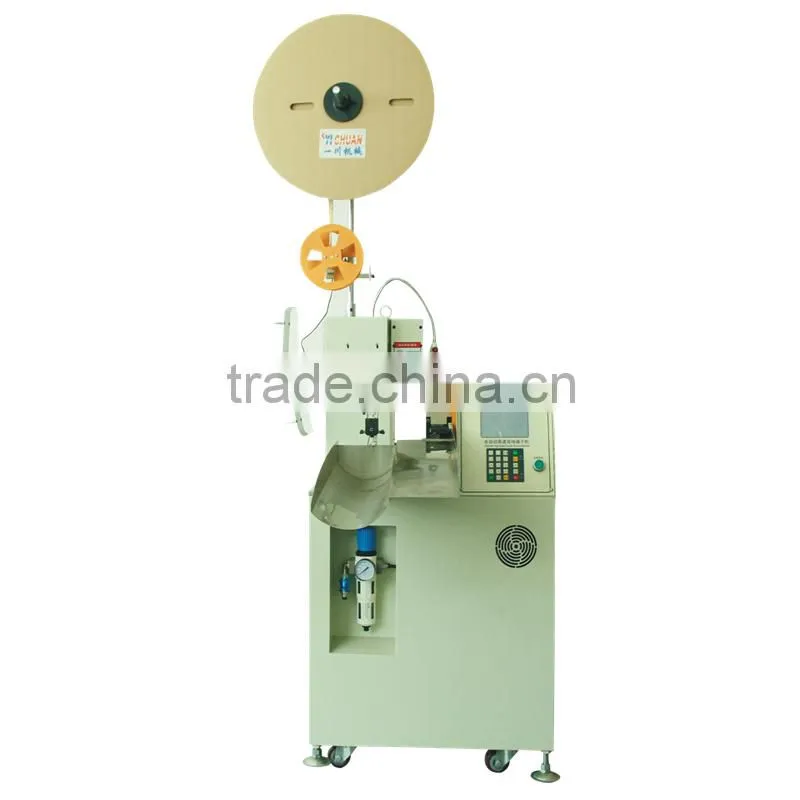

BX-130 2P Wire Crimping Terminal Machines
Function

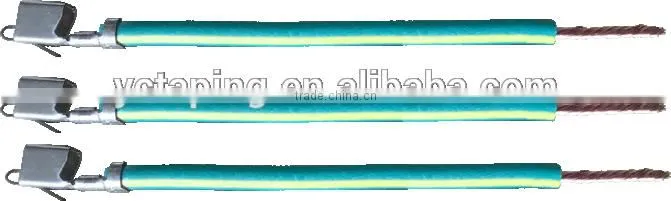

The machine can realize 2 wires or 2P stripping, one end beating terminal and the their end semi-stripping &twisting at the same time.
Equipment Features
1. The machine uses a dedicated SBC developed with the servo motor control, to make line feeding, stripping,crimping terminal more precisely and stable2.The pneumatic components used are imported brands,making equipment more durable and smooth.
3. using a full PC-style digital adjustment, making it more rapid and efficient to replace product.
4.all other requirements can be equipped according to customer
Function Parameter
1.Power:AC220V 50/60HZ2.Power:1500w
3.The pressure focused on:1.5T/can be customized according to customer requirements.
duction efficiency:6000pcs(length within 200mm)
5.wire processing length:45mm-9999mm, tangential cut length precision1mm+0.1%*.
6.Stripping Length:0mm-12mm
7.wire specification:wire AWG14-AWG26 or AWG18-AWG28,other specifications can be customized.
8.the air pressure:4.5-6kgf(need to use clean air)
9. Put Line means:According to customer product line with normal playback devices,other special requirements can be customized.
10. the detection device: Pressure testing, without wires,tie detection.presence or absence of the terminal crimping detection
11. the device size:600*700*1400mm excluding projecting portions.
12. Weight:200KG
13.take-up device:optional according to customer request.(1.5m-10m)
ure sensor:optional according to customer request.
