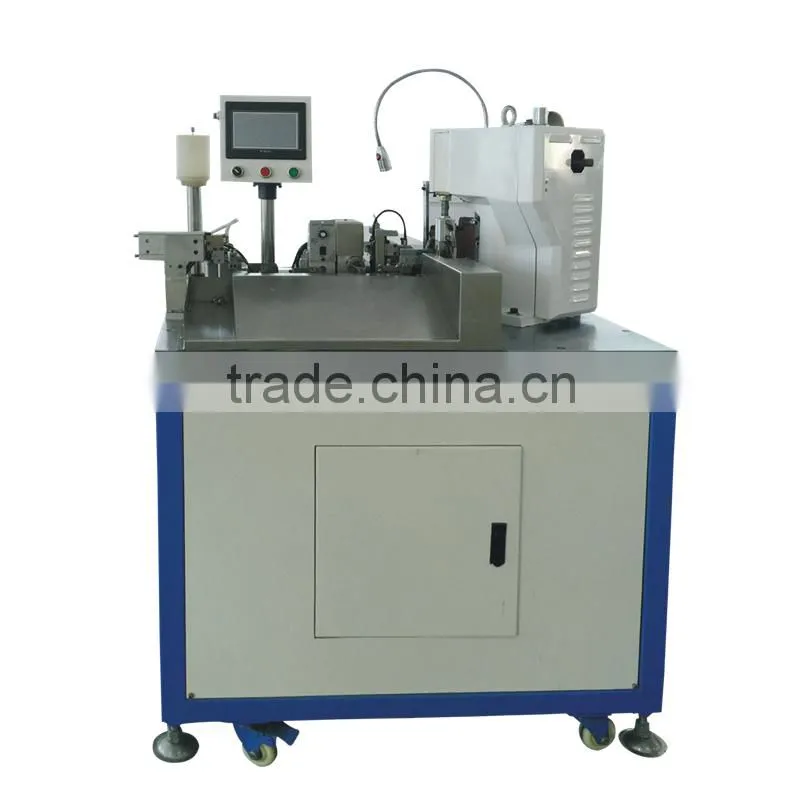

BX-160 Automatic Beat Terminal And Soldering Machine
US$ 10,999 - 26,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
YICHUAN
Model Number:
BX-160
Payment & Shipping
Payment Methods:
Port of Shipment:
SEKOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BX-230 Automatic Wire Labeling MachineUS$ 7,999 - 18,999MOQ: 1 Set -
Crimping ToolsUS$ 200 - 200MOQ: 1 Set
-
Semi Automatic Terminal and Wire Crimping MachineUS$ 1,500 - 3,000MOQ: 1 Set
-
Automatic Wire Stripping and Crimping MachineUS$ 10,700 - 10,700MOQ: 1 Set
-
Automatic Wire Twisting and Soldering MachineUS$ 17,900 - 17,900MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
YICHUAN
Model Number
BX-160
Usage
Crimping
BX-160Automatic Beat Terminal And Soldering Machine
Function
The machine can realize one end of wire beat terminal and the other end twist and wet or semi-stripping.
Equipment Features
1. The machine uses programmable PLC, with servo motor control used on major moving parts.make line feeding ,stripping,beating terminal,wetting more accurately.2.The design is simple, compact, and practical.
3. using a full PC-style digital adjustment, making it more rapid and efficient to replace product.
4.all other requirements can be equipped according to customer
Function Parameter
1.Power:AC220V 50/60HZ2.Power:2000w
3.Pressure Force:1.5T/ adjustable
duction efficiency:3000pcs(Wire length within 200mm)
5.wire length:30mm-9999mm, tolerance<1mm+tangential cut length*0.1%
6.stripping length:double ends 0mm-12mm
7.available wire spec:AWG14-AWG22 or AWG22-AWG30, other spes can be customized.
8.the air pressure:4.5-6kgf(need to use clean air)
9. the device size:1200*700*1500mm including protruding parts.
10.Weight:300KG
11.Pressure sensor:Optional according to customer's request.
12.feeding device:equip normal feeding device. adjustable according to customer's request
13.detection device:prssure detection,tie detection, wire and terminal adsecce detection.
