Automatic Crimping and Shell Wearing Machine
US$ 57,999 - 90,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
YICHUAN
Model Number:
BX-500
Payment & Shipping
Payment Methods:
Port of Shipment:
SEKOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Nylon Ties Cable Tying MachineUS$ 10,899 - 17,999MOQ: 1 Set -
BX-200 Automatic Crimping Terminal MachineUS$ 10,799 - 22,999MOQ: 1 Set
-
BX-130 2P Crimping Terminal MachineUS$ 4,599 - 7,999MOQ: 1 Set
-
BX-180 Double Automatic Terminal MachineUS$ 10,999 - 19,999MOQ: 1 Set
-
Bx-140 Automatic Tape Winding MachineUS$ 5,999 - 8,999MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
YICHUAN
Model Number
BX-500
Usage
Multifunctional

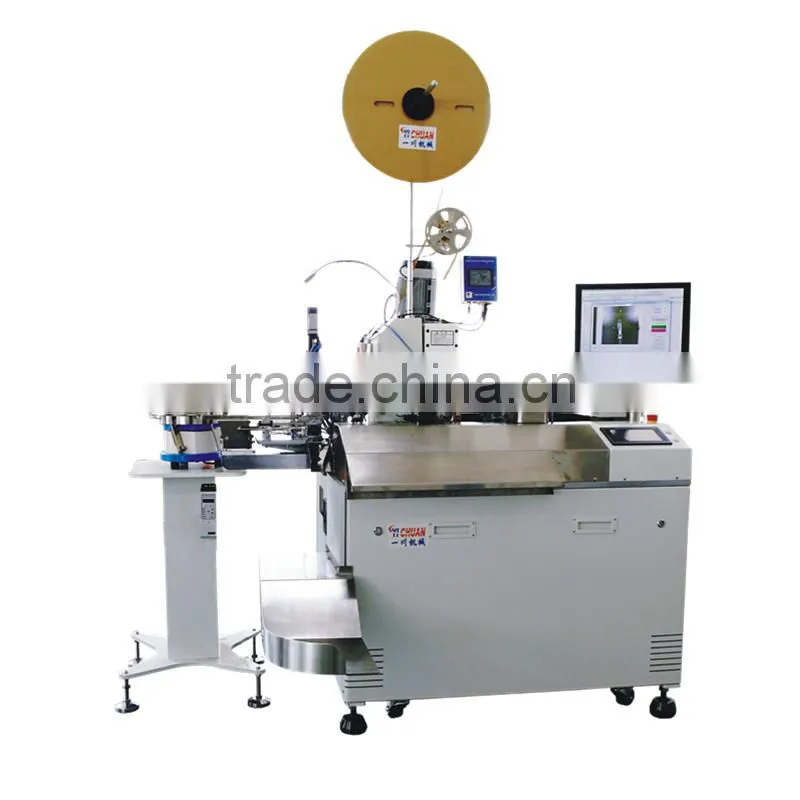

BX-500 Automatic Beat Terminal Soldering Machine Wear Plastic Shell Machine
Function
The machine has an end automatic terminal wear plastic shell hit the other end of the twisted wire soldering or semi-stripping and other functions.
Equipment Features
1. The whole machine adopts develop dedicated industrial controllers with full servo motor control, line-feeding, stripping, twisting, wetting, wear plastic shell hit the end positions,such as more accurate and stable.pact design,compact and practical.
3. using a full PC-style digital adjustment to operate,making it more rapid and efficient replacement of the product.
4.the machine is equipped with a pressure monitor and CCD visual surveillance, so that products without manual re-inspection.
5.all other requirements can be equipped according to customer
Function Parameter
1.Power:AC220V 50/60HZ2.Power:3000w
3.The pressure focused on:1.5T/can be customized according to customer requirements.
duction efficiency:2700pcs/h(less than 200mm)
5.wire processing length:30mm-9999mm, tangential cut length precision1mm+0.1.
6.Stripping Length:ends0mm-12mm
7.wire plastic shell specification wire AWG18-AWG22 or AWG22-AWG30, Achieve up to 7 colors Double 32P wear plastic shell products,other specifications can be customized.
8.the air pressure:4.5-6kgf(need to use clean air)
9.the pressure sensor:standard Japanese cable channel pressure sensor.
10. Put Line means:According to customer product line with normal playback devices,other special requirements can be customized.
12. the detection device: Pressure testing, without wires,tie detection,presence or absence of the terminal crimping detection,CCD playing end visual inspection.
13. the device size:3000*2000*1500mmcontain projections and the bobbin part.
14. Weight:600KG
