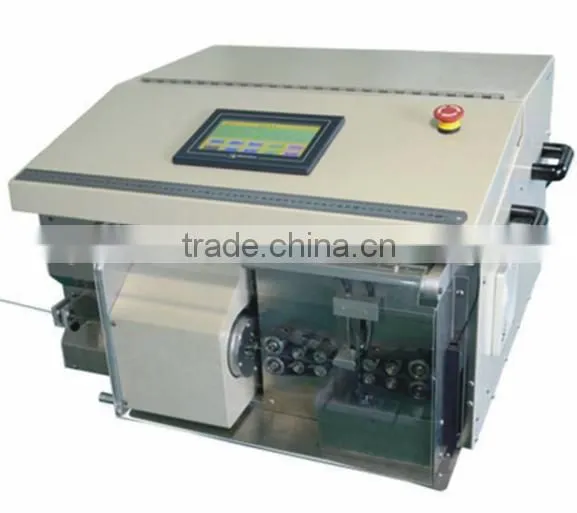

BX-150 automatic Coaxial stripping Machine
Equipment Function

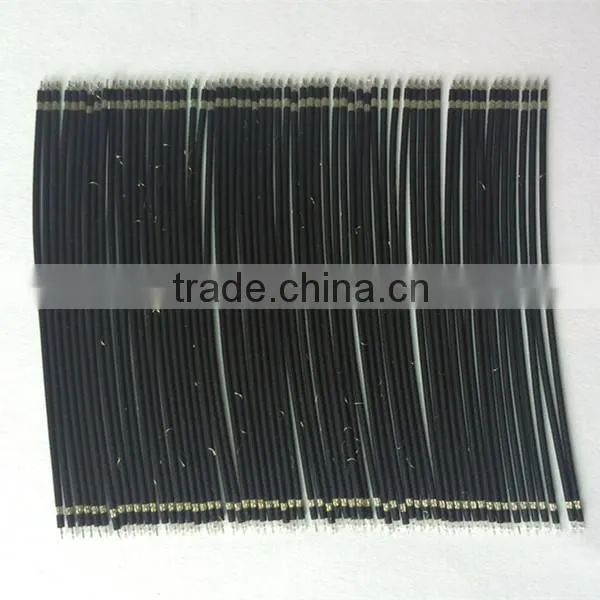

The machine can realize multi-coaxial cable automatic cut off both ends of the layered peeling and other functions.
Equipment Features
1. The machine usefully programmable computer type,mode simple and easy to understand.
2.The rotary cutter and peeling part with V-Tips combination model,applicable to a variety machining without tool change.
3. using a full PC-style digital adjustment, making it more rapid and efficient to replace product.
4.all other requirements can be equipped according to customer
Function Parameter
1.Power:AC220V 50/60HZ
2.Power:800w
duction efficiency:700-1300pcs/h(based on line specification)
4.wire processing length:50mm-2000mm, tangential cut length precision1mm+0.1%*.
5.Stripping Length:right:0mm-200mm,left 0-45mm
6.wire specification:Multi coaxial cable(0.6-4mm diameter)
7.the air pressure:4.5-6kgf(need to use clean air)
8. Put Line means:According to customer product line with normal playback devices,other special requirements can be customized.
9.the detection device: Pressure testing, without wires,tie detection
10. the device size:1100*920*1600mmcontain projections and the bobbin part.
11. Weight:100KG
