Steel Structure Metal Cnc Outer Mini Cnc Milling Machine 4 Axis

Product Application

This type of roof sheet  has advantage inclouding beautiful, classical appearance and grace taste.

It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.

Main Features

1)We can promise the tolerance to be 0.8mm due to 18 sets CNC machines on site. All the rollers and shafts are solid.

2)We have 16 engineers with more than 10 years experience to offer the most popular solutions.

3)22 installation engineers can go to your site within 7 days.

4)12 months maintenance and whole life technical support.

5)We cooperate with Maersk,APL,CMA,EMC,MSC, and PIL etc, 32 big shipping companies.

Machine Parts

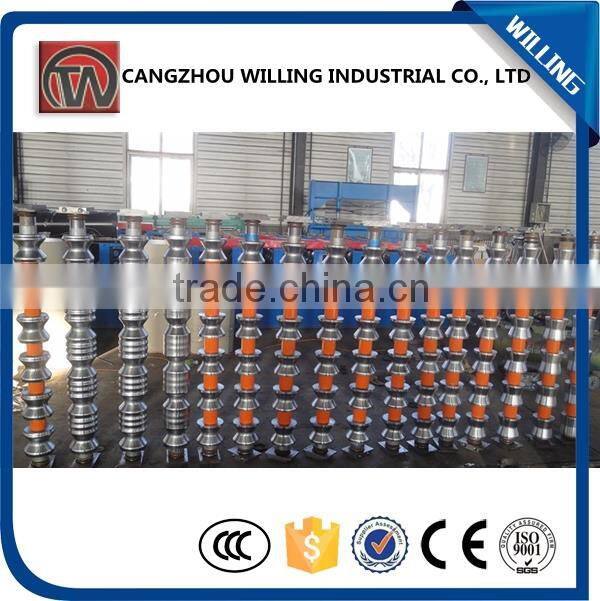

Name: Rollers

In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment, coated

Main Features

Name:PLC
Brand: Panasonic Japan
Panasonic PLC is adopted to organize all actions of the machine. The length of workpiece is adjustable according to the setting of on the PLC. Two optional control modes: automatic and manual. By automatic mode, the machine can realize fully automatic working. In order to make the machine has a long service life and easy maintenance; we only adopt globally famous electrical components. And by our special designed program, the human-computer interface is very easy to be adopted by any level of operators.

Machine Parts

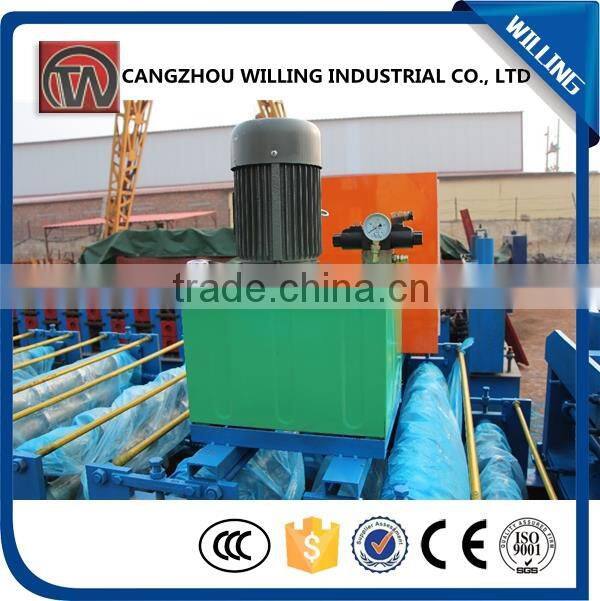

Name: Pump
Brand:China
It is derived by a Gear Pump. After filling the hydraulic oil into the hydraulic oil tank, the pump could drive the hydraulic cylinder to realize the cutting function.
The system includes a set of hydraulic tank, a set of a Gear Pump, two hydraulic pipes .and two sets of Solenoid Valves.
Power of The Pump:4kw
Hydraulic oil :40#

Main Features

Name: Encoder
Brand:OMRON
We understand that the encoder is a very important part of the cutting to length system, so we only adopt the best quality from OMRON Japen. And we offer enough matching couplings to make the machine will never shut off due to the encoder problem.
