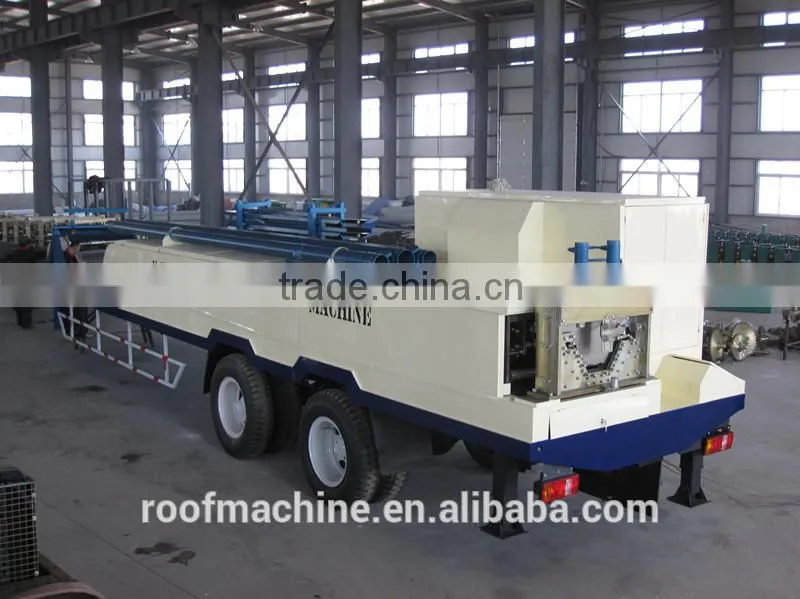

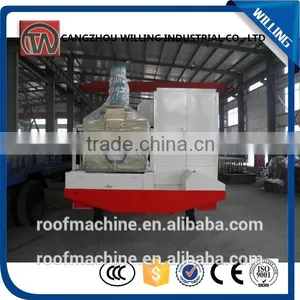

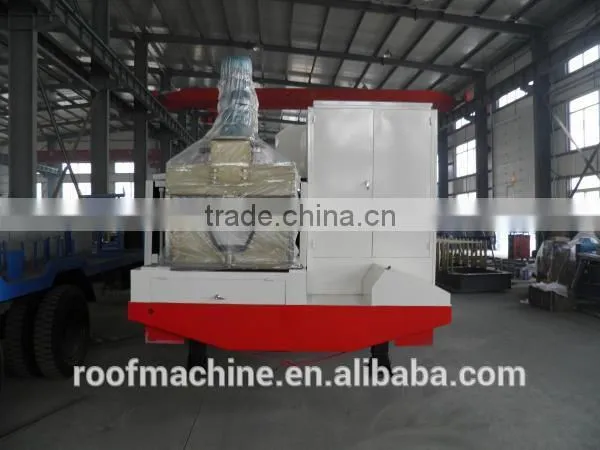

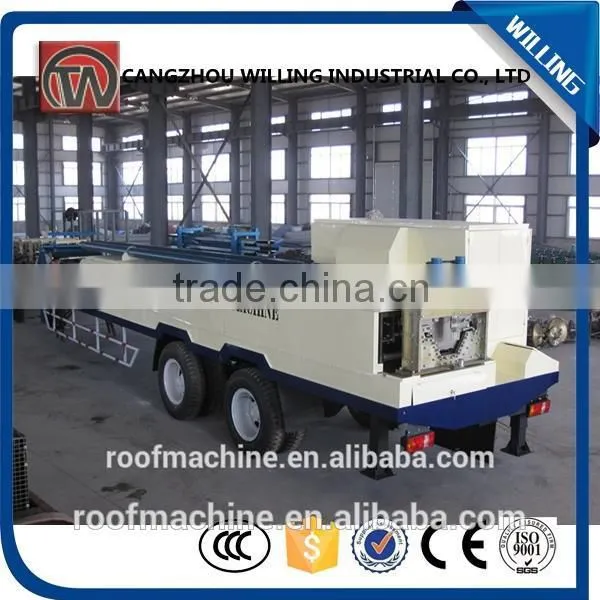

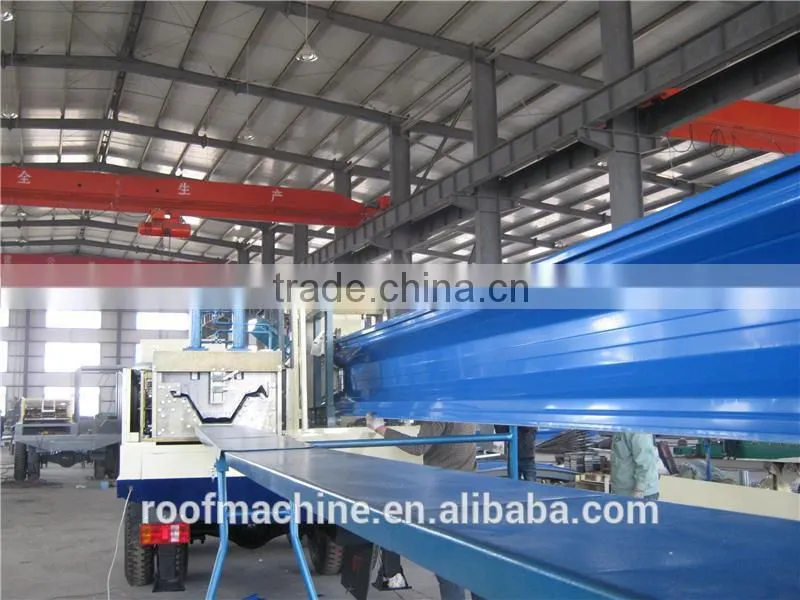

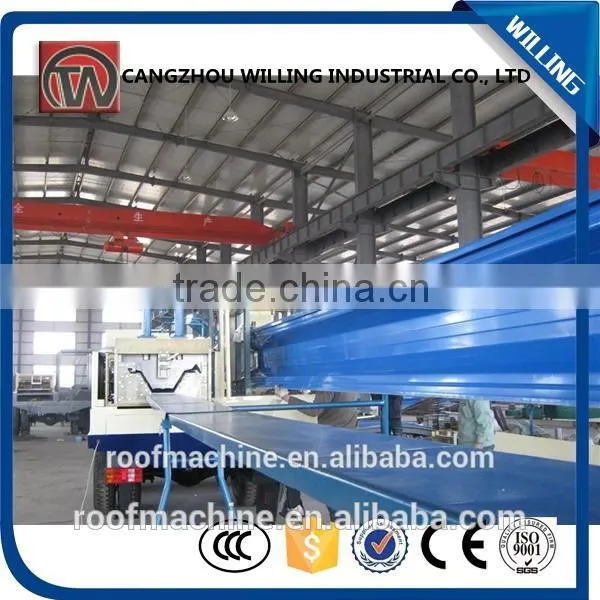

Big Span Roof Roll Forming Machine/Curving Roof Sheet Roll Forming Machine/large span

MAIN TECHNICAL SPECIFICATION

Size: 8000mm × 2250mm × 2300mm

Total Weight: about 12KG

Main Motor Power: 18.5KW  forming power is 7.5kw ; bending power is 4.0kw; cutting power is 4.0kw; conical power is 3.0kw

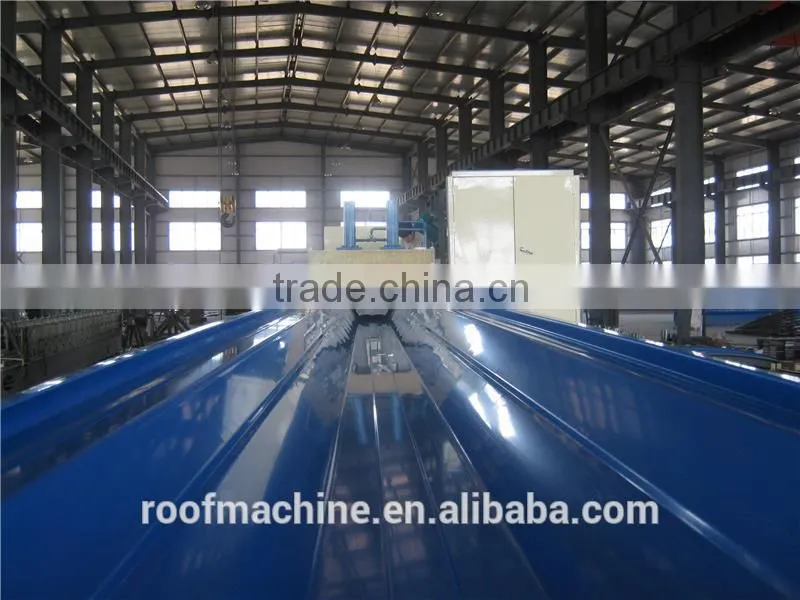

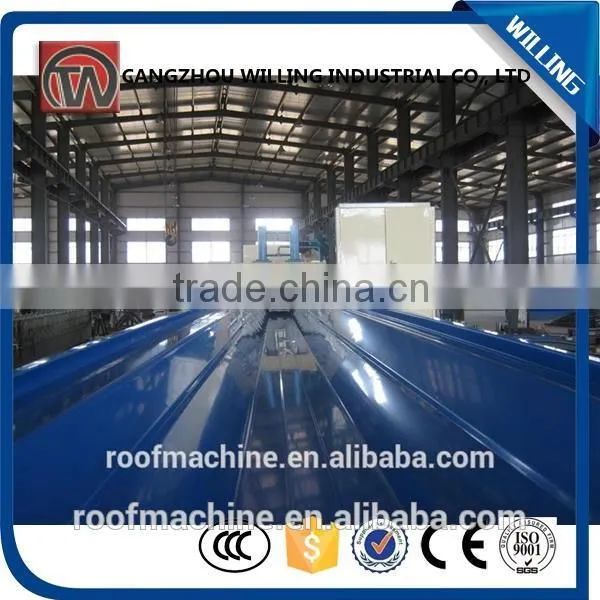

Working Speed: Straight sheet: 15m/min

Arch sheet: 13m/min

Sewing: 6m/min

Material of rollers: 45# steel, quenched HRC 58-62

Material of roller shafts: 45# steel, quenched HRC 58-62

Material of cutting blade: Cr12 steel (Taiwan Airline Technique)

Step of rollers: 8 steps

Thickness of the coil: 0.8-1.5mm

Gear/Spoket driving: 8 stations to form

Electric Standard: 380V / 50 HZ / 3 PHASE

Type of cutting: Roll-formed and length-set cutting

Ship Container: 40HC x 1

Operating factor of the panel: 66%

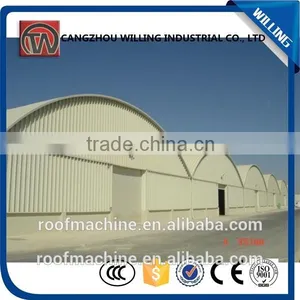

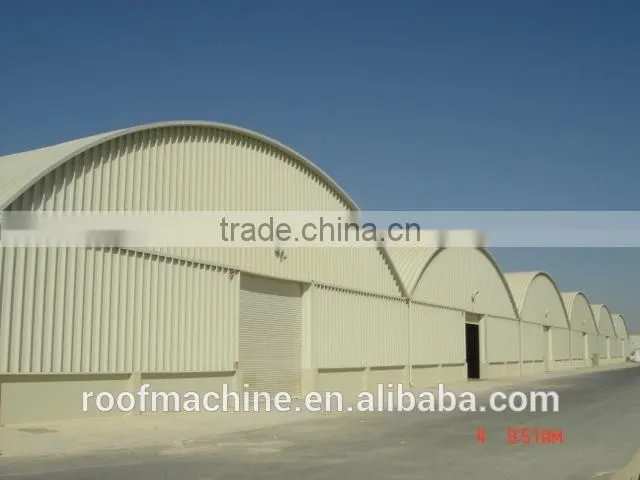

Proper span: ≤38m

Packaging: Important Components Wiped Anti Rust Oil, Rollers and Shafters covered by foam film, Hydraulic station, PLC control Box, Spare parts and some small parts

Packed in plywood box. All Components Fixed by steel wire with Container.

Payment Terms: 30%T/T after signed the contract,balanced before delivery

Warranty

1). One year, and we will provide the technical support for the whole life.

2).Training: the buyer should charge of visa, return ticket, food and accommodation

  overseas and USD50/person/day for salary.

3). Need one technicians

4).Training time: one week (contains the time of installation and adjustment)
