Help CenterEconomically High Speed Paper Cup Roll Flexo Printing Machine
Related Products
-
Economic Type Roll to Roll Non Woven Flexo Printing MachineUS$ 3,500 - 15,000MOQ: 1 Set -
Economic Type Non Woven Shopping Bag Flexo Printing MachineUS$ 3,500 - 15,000MOQ: 1 Set
-
Economic Type 6 Colors Plastic Shopping Bag Flexo Printing MachineUS$ 3,500 - 15,000MOQ: 1 Set
-
Economic Type 2 Colors Plastic Shopping Bag Flexo Printing MachineUS$ 3,500 - 15,000MOQ: 1 Set
-
Economic Type 4 Colors Plastic Bag Roll to Roll Flexo Printing MachineUS$ 3,500 - 15,000MOQ: 1 Set
Specifications
paper flexo printing machine is suitable for paper bag roll,plastic film roll,non woven roll and so onHigh efficiency
WHY US?
The Quality We Provide - Outstanding Quality Assurance
Control from production process:
•We don’t send mechanical parts out for pretreatment, all process would be supervised under inspection
department, we have 4sets CNC processing machine.
•7 stages pretreatment meet international standard
•Baking at high temperature after power coating to ensure the paint finish
The Service We Provide - We Take Care Of Your Order
Punctual delivery time:
•We put your order into our tight production schedule, ensure your punctual delivery time.
•Production / inspection report before your order packed.
•Shipping notice/ insurance to you as soon as your order is shipped.
After sales service:
•We respect your feed back after receive the goods.
•We provide 12-24 months warranty after goods arrive.
•We promise all spare parts available in lifetime use.
•We respond your complain within 48hours.
Professional sales:
•We value every inquiry sent to us, ensure quick competitive offer.
•We cooperate with customer to bid tenders. Provide all necessary document.
•We are a sales team, with all technical support from engineer team

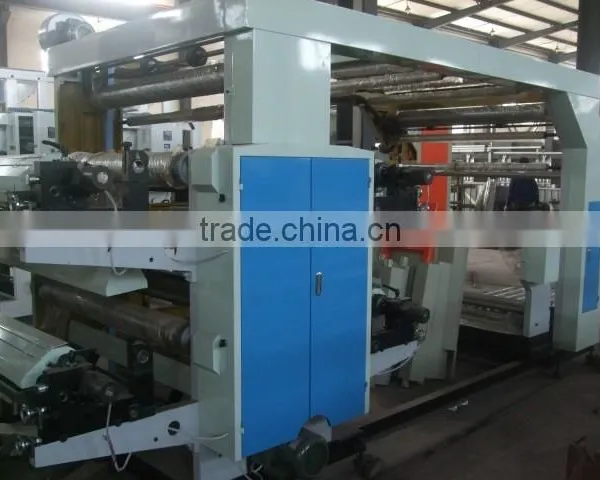

High speed paper plastic film roll Flexo Printing Machine
1.FC-25 cast iron machine frame, vibration-free, at high speed operation.
2.Driven by timing belt, quiet and precise.
3. Precise doctor blade chamber system with Titanium anilox roller, suitable for superfine printing quality.
4. Use differential helical gear device (made in Japan) to adjust the registration with forward and backward adjustment.
5.Main motor by using AC motor (SIEMENS brand) with inverter control (YASKAWA brand) and line speed controlled by harmony synchronous driving system.
6. In-feed and out-feed by using AC motor (SIEMENS brand) with inverter control (YASKAWA brand) + super-low friction air cylinder + position examine sensor + precise pressure regulating valve, which can control the tension of film accurately.
7. Automatic tension control (MITSUBISHI brand) + magnetic powder brake on unwind and rewind.
8. Electronic type automatic edge position control (EPC) on unwind.
9. Electric control by using PLC (MITSUBISHI brand) with full color touch-screen type human machine interface (HMI).
10. Single-chip advanced print inspection system (SONY brand) with full color LCD monitor.
11. All rotating rollers are treated with dynamic balance adjustment.
|
Printing width Item |
600mm | 800mm | 1000mm | 1200mm | 1400mm | 1600mm | 1800mm | 2000mm | ||
| Printing material | Single adhesive paper,Double adhesive paper,Copper plate paper,Kraft paper :50-180g/m2Single filter membrance paper,Double filter membrance paper : 80-300g/m2 | |||||||||
| Printing color | 4 special color | |||||||||
| Material feeding width | 700mm | 900mm | 1100mm | 1300mm | 1500mm | 1700mm | 1900mm | 2100mm | ||
| Printing length | 7.5"-40"(190mm-1016mm)/7.5"-50"(190mm-1270mm)/7.5"-60"(190mm-1524mm) | |||||||||
| Printing plate lifting system | Pneumatic/Hydraulic press control | |||||||||
| Mechanical speed | 150m/min | |||||||||
| Printing speed | 120m/min | |||||||||
| Anilox cylinder | 80DK-170DK(Germany)/180LPI-800LPI | |||||||||
| Register precision | Longitude:±0.1mm Transverse: ±0.1mm | |||||||||
| Rewinder/Unwinder DIA | ø 600mm | |||||||||
| Master motor | 5.5W | 7.5KW | 11W | 15KW | ||||||
| Rewinder motor | 5.5KW | 7.5KW | ||||||||
| Unwinder motor | 5.5KW | 7.5KW | ||||||||
| Electrical header | 26KW | 32KW | 38KW | 45KW | ||||||
| Blower of header | 0.75KW | 1.1 KW W | 1.5 K W | 2.2 K W | ||||||
| Blower of nature wind | 0.75 KW | 1.1 KW | 1.5 KW | 2.2 KW | ||||||
| Inking motor | 370W | 750W | ||||||||
| Master frequency converter | 5.5KW | 7.5KW | 11KW | 15 KW | ||||||
| Master power | 45KW | 54KW | 68KW | 82KW | ||||||
| Weight | 8100Kg | g8760Kg | 9300 Kg | 9750 Kg | 10120Kg | 10500Kg | 11000Kg | 11700Kg | ||
