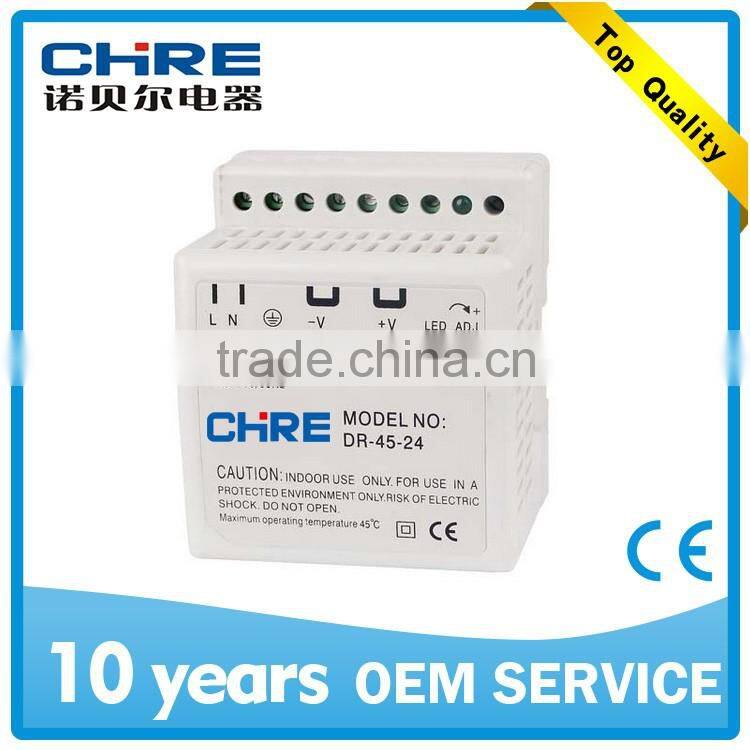

White 24V 2A Din Rail Power Supply DR-45-24

Name: White 24V 2A Din Rail Power Supply DR-45-24
Brand: Chre
SKU: 134468671
Availability: InStock

US$ 12.5 - 13 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Chre

Model Number:

DR-45-24

Yueqing Nobel Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Chre

Model Number DR-45-24

Output Power 1 - 50W

Output Type Single

Input Voltage 220V

Output Voltage 24V

Output Frequency 47~63Hz

Output Current 2A

CHRE White 24V 2A Din Rail Power Supply DR-45-24

Product Description

· 1. Universal AC input/Full range

· 2. Small Volume,low weight,high efficiency

· 3. Protections:Short circuit/over load/over voltage/over temp

· 4. Cooling by free air convection
· 5. Can be installed on DIN RAIL:TS-35/7.5 or TS-35/15

· 6. 100% full load burn-in test

· 7. 2 years warranty

Model Specification	DR-45-5	DR-45-12	DR-45-15	DR-45-24
DC output voltage	5V	12V	15V	24V
Rated output current	5A	3.5A	2.8A	2A
Output current range	0-5A	0-3.5A	0-2.8A	0-2A
Wave and noise	100mVp-p	200mVp-p	240mVp-p	480mVp-p
Inlet stability	0.5%	0.5%	0.5%	0.5%
Load stability	1%	0.5%	0.5%	0.5%
Efficiency	72%	77%	77%	80%
AC input voltage range	85~264VAC/47~63HZ;120~370VDC
AC impulse current	Cold-start current 28A/115V 56A/230V
Overload protection	105%150% Typecurrent limiting .Reset: auto recovery
Setup rise hold up time	800ms,60ms,50ms/230VAC
Withstand voltage	Input and output interval3KVAC,Input and enclosure1.5KVAC,Output and enclosure0.5KVAC
Isolation resistance	Input and output interval,Input and enclosure,Output and enclosure500VAC/100M Ohms
Working temperature and humidity	-10c+50c
Overall dimension	789356mm
Weight	0.31Kgs
Safety standards	Meet GB4943 UL60950
EMC standards	Meet GB9254 UL55022 Class B
