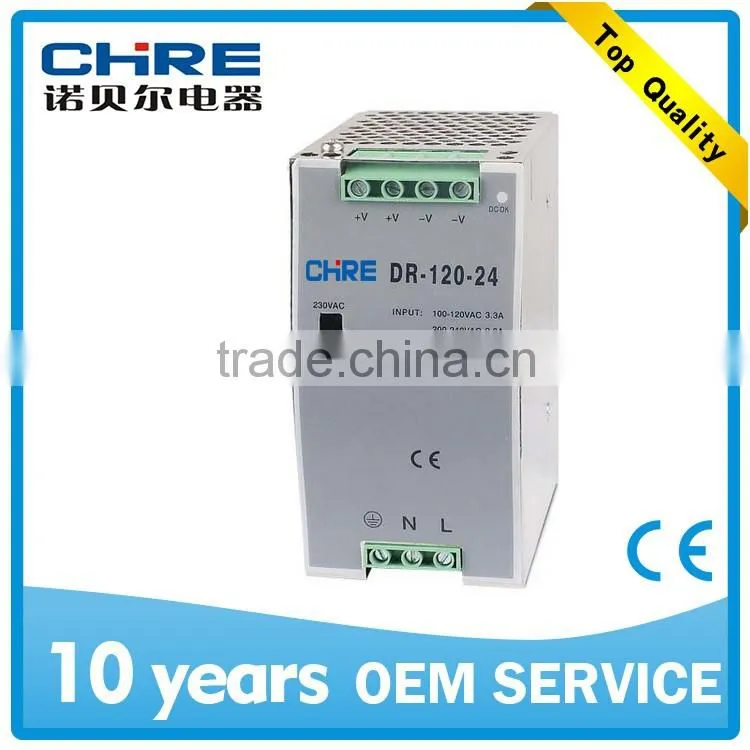

DR-120-24 120W 24V SINGLE OUTPUT INDUSTRIAL DIN RAIL POWER SUPPLY AC/DC CE APPROVED FOR LED

Name: DR-120-24 120W 24V SINGLE OUTPUT INDUSTRIAL DIN RAIL POWER SUPPLY AC/DC CE APPROVED FOR LED
Brand: Chre
SKU: 134468677
Availability: InStock

DR-120-24 120W 24V SINGLE OUTPUT INDUSTRIAL DIN RAIL POWER SUPPLY AC/DC CE APPROVED FOR LED thumbnail-1

DR-120-24 120W 24V SINGLE OUTPUT INDUSTRIAL DIN RAIL POWER SUPPLY AC/DC CE APPROVED FOR LED photo-1

US$ 23 - 26 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Chre

Model Number:

DR-120-24

Contact Supplier Request Quote Chat Now

Yueqing Nobel Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Chre

Model Number DR-120-24

Output Power 101 - 200W

Output Type Single

Input Voltage 220V

Output Voltage 24V

Output Frequency 47~63Hz

Output Current 5A

CHRE White 24V 2A Din Rail Power Supply DR-45-24

Product Description

· 1. Universal AC input/Full range

· 2. Small Volume,low weight,high efficiency

· 3. Protections:Short circuit/over load/over voltage/over temp

· 4. Cooling by free air convection
· 5. Can be installed on DIN RAIL:TS-35/7.5 or TS-35/15

· 6. 100% full load burn-in test

· 7. 2 years warranty

MODEL		DR-120-12	DR-120-24	DR-120-48
OUTPUT	DC VOLTAGE	12V	24 V	48V
	RATED CURRENT	10A	5A	2.5A
	CURRENT RANGE	0-10A	0-5A	0-2.5A
	RATED POWER	120W	120W	120W
	RIPPLE & NOISE (max.) Note.2	80mVp-p	80mVp-p	100mVp-p
	VOLTAGE ADJ. RANGE	12- 14V	24-28V	48 - 53V
	VOLTAGE TOLERANCE Note.3	±2.0%	±1.0%	±1.0%
	LINE REGULATION	±0.5%	±0.5%	±0.5%
	LOAD REGULATION	±1.0%	±1.0%	±1.0%
	SETUP, RISE TIME	500ms, 70ms/230VAC 500ms, 70ms/115VAC at full load
	HOLD UP TIME (Typ.)	36ms/230VAC 32ms/115VAC at full load
INPUT	VOLTAGE RANGE	88 -132VAC/176 - 264VAC by switch,248 - 370VDC
	FREQUENCY RANGE	47~63Hz
	EFFICIENCY (Typ.)	80%	84%	85%
	AC CURRENT (Typ.)	2.6A/115VAC 1.6A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 20A/115VAC 40A/230VAC
	LEAKAGE CURRENT	<3.5mA/240VAC
PROTECTION	OVERLOAD	105 -150% rated output power
		Protection type: Constant current limiting, recovers automatically after fault condition is removed
	OVERVOLTAGE	15-16.5V	29 - 33V	58 -65V
		Protection type: Shut down o/p voltage, re-power on to recover
	OVER TEMPERATURE	85"C ±5”C (TSW1)	90"C+5"C(TSW1)	90’C ±5"C(TSW1)
		Protection type: Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT	WORKING TEMP.	-10 - +60"C (Refer to "Derating Curve")
	WORKING HUMIDITY	20 - 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-20 - +85 "C, 10 - 95% RH
	TEMP. COEFFICIENT	±0.03%/"C (0-50‘C)
	VIBRATION	10 - 500Hz, 2G 10min./1 cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
SAFETY & EMC (Note 4)	SAFETY STANDARDS	UL508, UL60950-1, TUV EN60950-1 approved
	WITHSTAND VOLTAGE	l/P-0/P:3KVAC l/P-FG:1.5KVAC 0/P-FG:0.5KVAC
	ISOLATION RESISTANCE	l/P-O/P, l/P-FG, 0/P-FG:100M Ohms/500VDC/25,C/70% RH
	EMC EMISSION	Compliance to EN55011 .EN55022 (CISPR22) Class B, EN61000-3-2.-3
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), heavy industry level, criteria A
OTHERS	MTBF	432.1Khrs min. MIL-HDBK-217F (25‘C)
	DIMENSION	65.5125.2100mm (WHD)
	PACKING	0.79Kg; 20pcs/16.5Kg/1.29CUFT
NOTE	1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25'C of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uf & 47uf parallel capacitor. 3.Tolerance : includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
