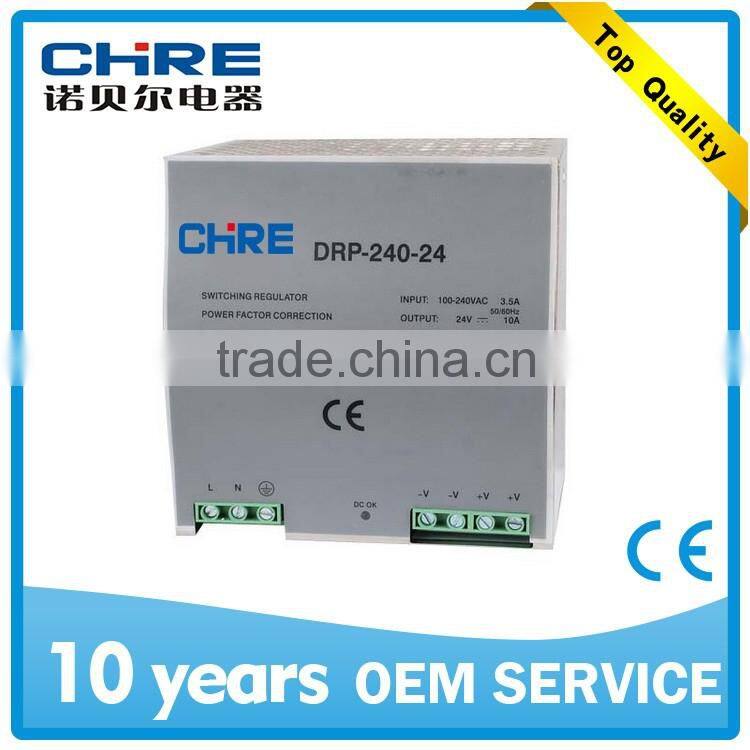

NOBEL 240W Industrial DIN Rail Power Supply 24V DRP-240-24

Name: NOBEL 240W Industrial DIN Rail Power Supply 24V DRP-240-24
Brand: Chre
SKU: 134468679
Availability: InStock

US$ 51 - 91.6 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Chre

Model Number:

DR-240-24

Yueqing Nobel Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Chre

Model Number DR-240-24

Output Power 201 - 300W

Output Type Other, Single, Single

Input Voltage 220V

Output Voltage 24V

Output Frequency 47~63Hz

Output Current 10A

CHRE White 24V 2A Din Rail Power Supply DR-45-24

Product Description

· 1. Universal AC input/Full range

· 2. Small Volume,low weight,high efficiency

· 3. Protections:Short circuit/over load/over voltage/over temp

· 4. Cooling by free air convection
· 5. Can be installed on DIN RAIL:TS-35/7.5 or TS-35/15

· 6. 100% full load burn-in test

· 7. 2 years warranty

MODEL		DR-240-12	DR-240-24	DR-240-48
Output	DC Voltage	12V	24V	48V
	Rated current	20A	10A	5A
	Current range	0-20A	0-10A	0-5A
	DC power	240W	240W	240W
	Voltage ADJ.range	21.6~26.4V	21.6~26.4V	43.2~52.8V
	Voltage tolerance	±1%	±1%	±1%
	Ripple and noise	80mVp-p	80mVp-p	150mVp-p
	Intet stability	±0.5%	±0.5%	±0.5%
	Load stability	±1%	±1%	±1%
Intput	AC voltage range	90~132VAC/170~264VAC 47~63Hz ; 240~370VDC
	Current	3.5A/115V 1.8A/230V
	Effi ciency	85%	84%	85%
	AC Inrush current	Cold-start current 30A/115V 60A/230V
	Leakage current	< 3.5mA/240VAC
Protection	Overload	105%~150% Type:pulsing hiccup shutdown Resete:auto recovery
	Over voltage	15~16.5V	28~33V	58~65V

Safety	Setup,rise,hold up time	1000ms,60ms,50ms/230V
	Vibration	10~500Hz,2G 10min,/1 cycle
	Withstand voltage	Input and output internal:1.5KvAc,input and enclosure:1.5KvAc,Output and enclosure:0.5KvAc
	Isolation resistance	Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ
