Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > DR-75 MODEL DR-75-12 DR-75-24 DR-75-48 OUTPUT -24 60W 24VDC 2.5A Dinrail Switching Power Supply

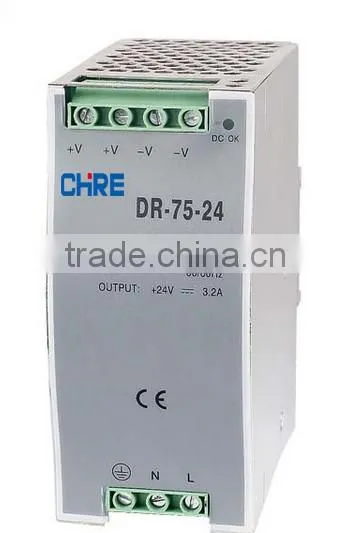

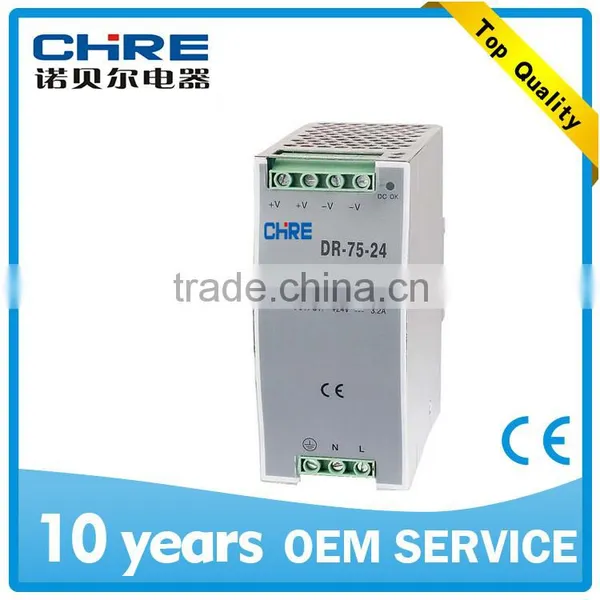

DR-75 MODEL DR-75-12 DR-75-24 DR-75-48 OUTPUT -24 60W 24VDC 2.5A Dinrail Switching Power Supply

Name: DR-75 MODEL DR-75-12 DR-75-24 DR-75-48 OUTPUT -24 60W 24VDC 2.5A Dinrail Switching Power Supply
Brand: Chre
SKU: 134468675
Availability: InStock

DR-75 MODEL DR-75-12 DR-75-24 DR-75-48 OUTPUT -24 60W 24VDC 2.5A Dinrail Switching Power Supply thumbnail-1

DR-75 MODEL DR-75-12 DR-75-24 DR-75-48 OUTPUT -24 60W 24VDC 2.5A Dinrail Switching Power Supply photo-1

US$ 21 - 22 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Chre

Model Number:

DR-75-24

Contact Supplier Request Quote Chat Now

Yueqing Nobel Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Chre

Model Number DR-75-24

Output Power Other, 75W

Output Type Single

Input Voltage 220V

Output Voltage 24V

Output Frequency 47~63Hz

Output Current 3.2A

CHRE DR-30-12 30W 12VDC 2.5A Dinrail Switching Power Supply

Product Description

1.Low price and high reliability
2.105 output capacitor
3.AC input power suitable for the world
4.High efficiency and low operation temperature
5.Soft-start current can reduce the AC input impact effectively
6.With short-circuit and overload protection
7.Compact size, light weight
8.100% full-load burning test
9.Installed with EMI filter, minimum wave

10. DR-75-24 CE approved 75w 24 v dc din rail power supply

application:

• Power tools series: Electric Saw, Drilling Machine, Ginder, Sand blast Machine, Pouching Machine,Weeding Machine,Air Compressor etc.

• Office series: Computer,Printer,LCD Monitor,Scanning Machine etc.

• Household Appliance series: Dust Collector,Fan Lamp or LED ,Sewing Machine etc.

• Kitchen Appliance series: Microwave Oven, Fridge, , Coffemarker etc.

• Industrial Equipment series: shipping,vehicle,metalhalide lamp,solar system,wind power generation etc.

• Electrical filed series: TV,VCRS,Radio etc.

Model	DR-75-12	DR-75-15	DR-75-24	DR-75-48
DC output voltage	12V	15V	24V	48V
Output voltage range(Note:2)	±2%	±2%	±1%	±1%
Rated output current	6.3A	5A	3.2A	1.6A
Output current range	0-6.3A	0-5A	0-3.2A	0-1.6A
Wave and noise(Note:3)	100mVp-p	100mVp-p	150mVp-p	240mVp-p
Inlet stability(Note:4)	±0.5%	±0.5%	±0.5%	±0.5%
Load stability(Note:5)	±1%	±1%	±1%	±1%
Efficiency	76%	76%	80%	81%
Adjustable range for DC voltage	10.8~13.2V	13.5~16.5V	21.6~26.4V%	43.2~52.8V%
AC input voltage range	85~264VAC 47~63Hz;120~370VDC
Input current	1.8A/115V 0.9A/230V
AC inrush current	Cold-start current 30A/115V 60A/230V
Leakage current	<3.5mA/240VAC
Overload protection	105%~150% Type: pulsing hiccup shutdown Reset: tuto recovery
Over-voltage protection	13.8~16.2V	13.5~16.5V	27.6~26.4V	43.2~52.8V
Temperature coefficient	±0.03%/°c(0~50°c)
Setup, rise , hold up time	1000ms, 60ms, 50ms/230V
Vibration	10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage	Input and output internal: Input and encolsur: 1.5KvAC, Output and enclosure: 0.5KvAC
Isolation resistance	Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ
Working temperature and humidity	-10°c~+60°c(Refer to output derating curve), 20%~90%RH
Overall dimension	55.5×125.2×100mm
Weight	0.551Kgs 20PCS/14Kg/1.1CUFT
Safety standards	Meet UL 1012 requiement (Not apply for the mark)
EMC standards	Meet FCC PART 15 J Conduction class B
