Specifications

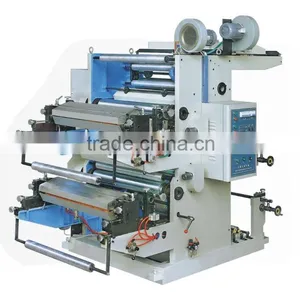

Printing many material film , bag , paper and woven bag . as you want to get , we can supply .Flexographic printing machine,also called aniline press which uses photoisensitive resin plate as the printing plate. It adopts environmental ink and has advantage of low edition-producing cost,this is an ideal machine for mass lots, large variety production manufacture, it is also suitable for printing HDPE,LDPE,PP. cellophane paper, rolling paper etc.
Type |
YT-2600 |
YT-2800 |
YT-21000 |
Max. Web Width |
600mm |
800mm |
1000mm |
Max. Effective Printing Width |
560mm |
760mm |
960mm |
Range of Repeat Printing Length |
191~914mm |
191~914mm |
191~914mm |
Max. Diameter of Roll Material |
450mm |
450mm |
450mm |
Printing Speed |
5~50m/min |
5~50m/min |
5~50m/min |
Plate Thickness(Both side adhesive tape included) |
2.38mm |
2.38mm |
2.38mm |
Total Power |
8Kw |
10Kw |
12Kw |
Overall Dimension |
2300×1860×2145mm |
2300×2060×2145mm |
2300×2260×2145mm |
