Specifications

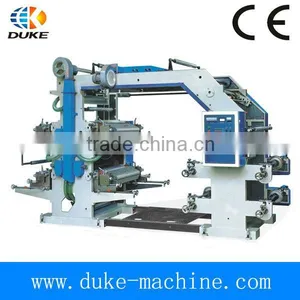

Four Colors Flexographic Film Printing Machine1.use resin plate
2.water type ink
3.print paper & all kinds film in roll
DK-BA Two Color Flexographic PE Printing Machine
Use:
Suitable for printing such packing materials as non-woven fabric,polyethylene, polypropylene plastic bag, glass paper,etc. It is a kind of ideal printing equipment for producing paper package, supermarket handbag, vest bag and clothes bag, etc.
Function:
1 Easy operation, flexible starting, accurate color register.
2 The meter counter an set printing quantity according to the requirement,Stop the machine automatically at the quantity,Stop when the material is cut off.
3 Lift and lower the printing plate cylinder manually,it will automatically stir the printing ink automatically after lifting.
4 The printing ink is spread by the anilox cylinder with even ink color.

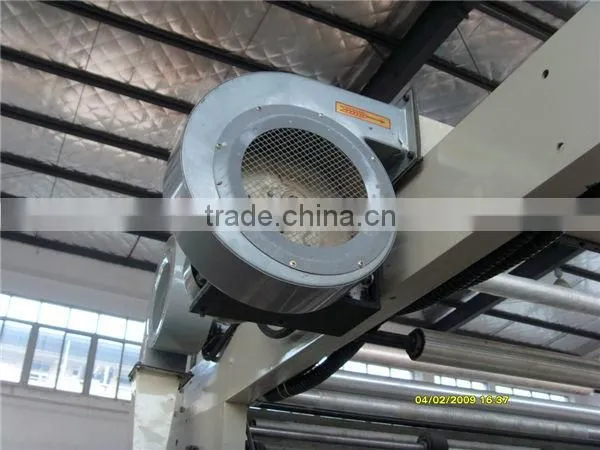

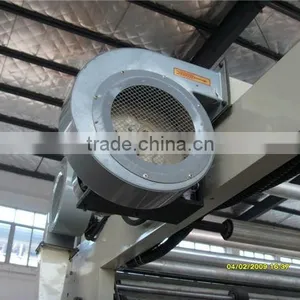

5 Reliable drying system coordinated with high speed rotation, it will automatically break circuit when the machine stops.
6 360°continuous and adjustable longitudinal register device.
7 The import frequency controller of motor speed adapts to different printing speed.
8 there are inching/stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
OPTIONAL EQUIPMENT:
Air Shaft,Ceramic anilox roll, Edge Correction Device, Manual Tension Control or Auto Tension Control.
Main Technical Parameters:
Model |
YT-4600 |
YT-4800 |
YT-41000 |
YT-41200 |
YT-41400 |
Max.Width of Printing Material (mm) |
600 |
800 |
1000 |
1200 |
1400 |
Max.printing Width(mm) |
560 |
760 |
960 |
1160 |
1360 |
Length Range of Printing Product(mm) |
191-914 |
||||
Max.Diameter of Roll Material(mm) |
450/1000 |
||||
Printing Speed (m/min) |
5-50 |
||||
|
Thickness of plate(mm) (including Two-sided Glue Paper) |
2.38/3.94 |
||||
Power Supply(V) |
380V (three-phase four-wire power cable) |
||||
Total Power(kw) |
11kw |
12.5kw |
13.5kw |
16.5kw |
18.5kw |
Machine Weight(kg) |
3000kg |
3500kg |
4000kg |
4200kg |
4500kg |
Incasement Weight(kg) |
3200 |
3700 |
4200 |
4500 |
4800 |
Machine Dimensions (mm) |
4200x1600x2400 |
4200x1800x2400 |
4200x2000x2400 |
4200x2200x2400 |
4200x2400x2400 |

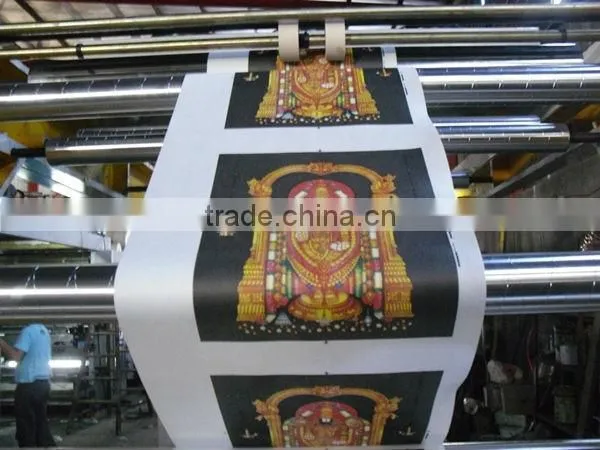

Sample bag

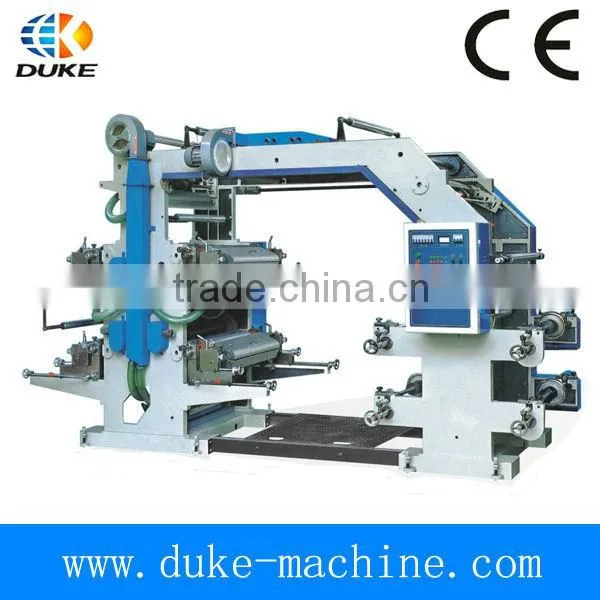

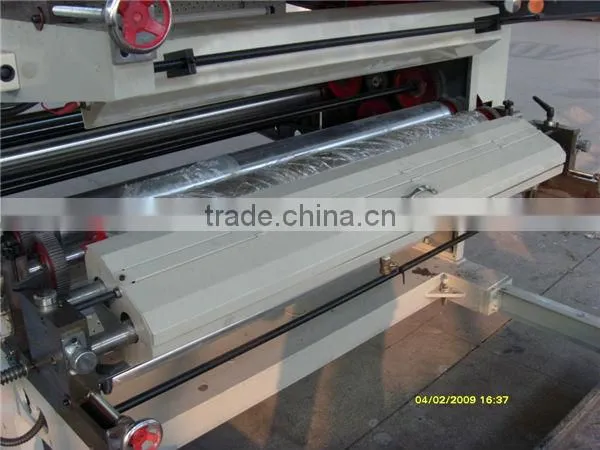

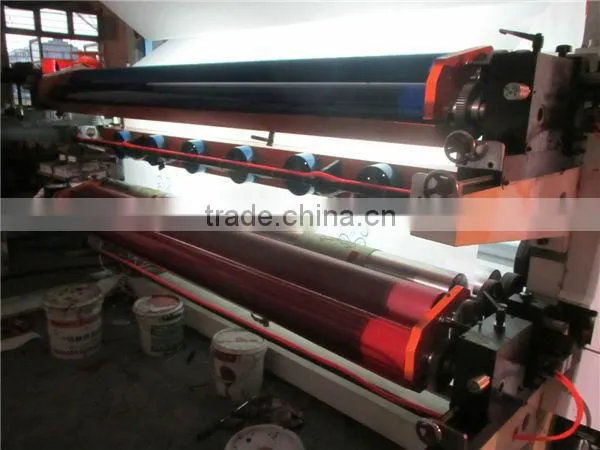

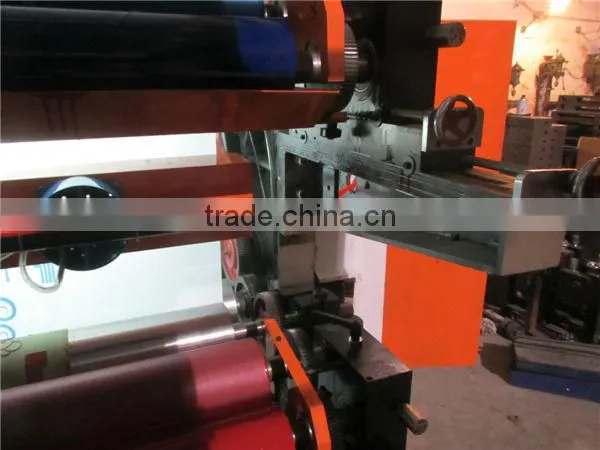

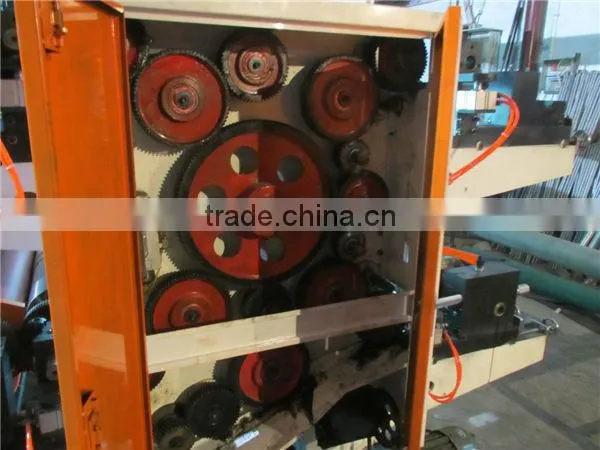

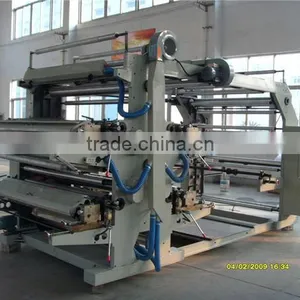

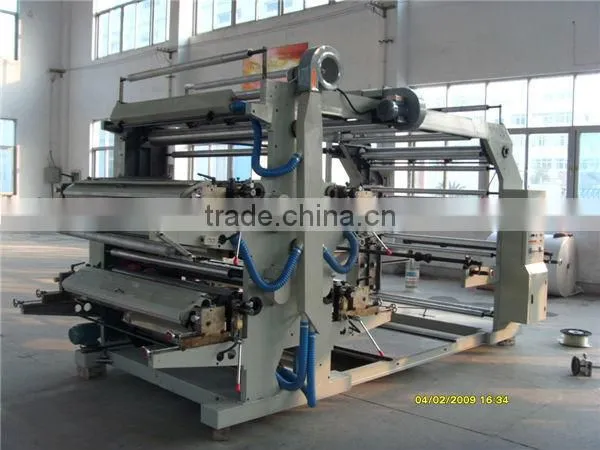

Machine

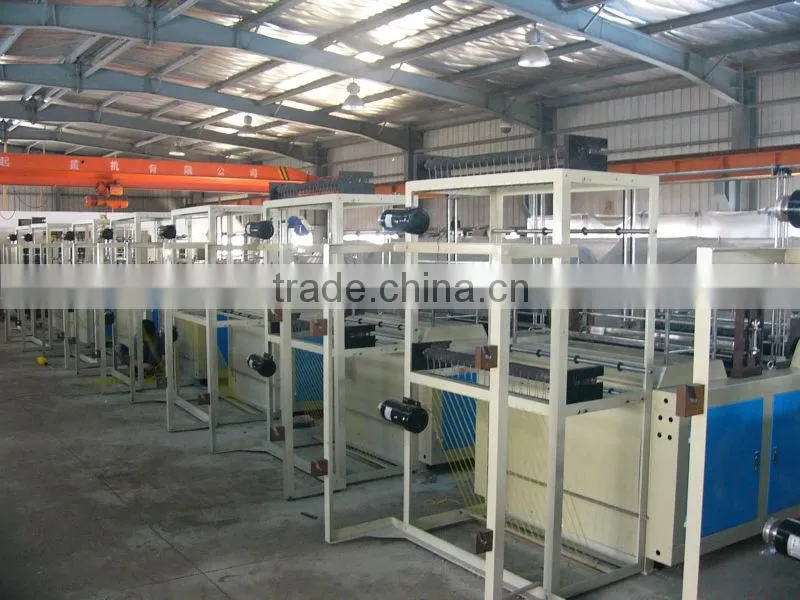

bag making machine inventory
Our Service
we will send technician to install and training your work after the machine arrived your factory,another questions about machine can talk with me online,we will solved it within 2days.
Company Information
Wenzhou Duke Import & Export Co., ltd is Located in the Ruian city .We specialized in supplying plastic production machine, especially the film blowing machine bag making machine printing machine and other packing machine . With a wide-range, good quality, reasonable prices and nice appearance, our products are extensively used in the plastic packing industry and automobile field. We have over 6 years export experience, and our annual export volume is about 10 million dollars. Because of good quality and service, we have got great reputation among domestic and international customers, and our products have been sold to eastern and southern Asia (such as India, Thailand, Vietnam, Indonesia, Malaysia, Sri Lanka), Middle East (Iran, Pakistan, Bahrain ), Europe (Russia, Bulgaria, Croatia, Rumania, Spain, Italy), Africa (Nigeria, Guinea, Congo), North America (America) .All products have been tested and meet industry standards. With high standards our products has widely recognized and trusted by users all over the world and can meet continuously developing economic and social need. Sincerely welcome friends of all circles for cooperation and a bright future!
FAQ:
1.Q:Are you a factory or trade company?
R:We are a factory & Trade company.
2.Q:Where is your company located?How can I visit there?
R:Our company is located in Ruian City,Wenzhou area,Zhejiang province,China.
About 1 hour by plane from Shanghai to Wenzhou,then 1 hour taxi to our place(5 hours by fast
train to Ruian station)
3.Q:what is the raw material does the machine Printing?
R:the material is BOPP,PET,PVC, PE,CPP and Rolling Paper etc.
4.Q:who can answer my urgent questions about the machine?
R:leave a message when I am not online,will reply you within 24hours.
5.Q:how does your factory do regarding quality control?
R:our company policy is “quality first,customer first”.we have a QC manager whom check
the machine making from beginning to the end.
