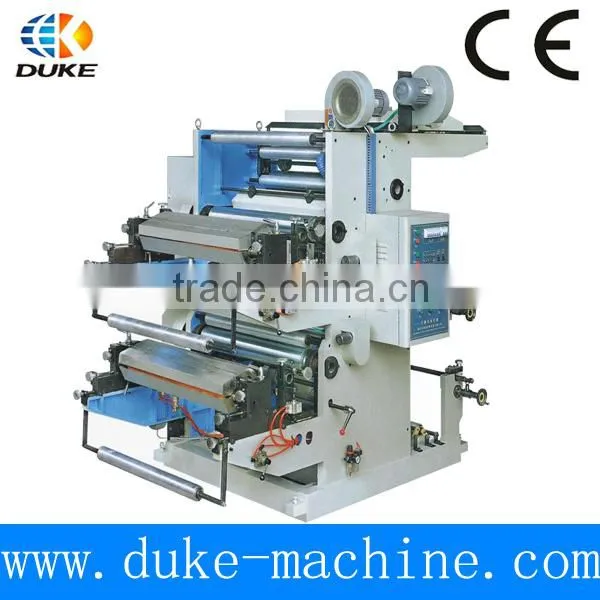

YT-2-800 Low Price Two Color High Speed Plastic Flexographic Printing Machine / Flexo Printing Machine
Specifications
Plastic Flexographic Printing Machine1.EPC,Auto Tension Control
2.50M/min
3.use resin plate ,water type ink
4.plastic film
Detail Of YT-2-800 Low Price Two Color High Speed Plastic Flexographic Printing Machine / Flexo Printing Machine :
This Flexographic Printing Machine Suitable for printing such packing materials as non-woven fabric,polyethylene, polypropylene plastic bag, glass paper,etc. It is a kind of ideal printing equipment for producing paper package, supermarket handbag, vest bag and clothes bag, etc.
Function:
1 Easy operation, flexible starting, accurate color register.
2 The meter counter an set printing quantity according to the requirement,Stop the machine automatically at the quantity,Stop when the material is cut off.
3 Lift and lower the printing plate cylinder manually,it will automatically stir the printing ink automatically after lifting.
4 The printing ink is spread by the cylinder with even ink color.
5 Reliable drying system coordinated with high speed rotation, it will automatically break circuit when the machine stops.
6 360°continuous and adjustable longitudinal register device.
7 The frequency controller of motor speed adapts to different printing speed.
8 there are inching/stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Two Colors Flexographic Printing Machine Technical Parameters:
Type | YT-2600 | TY-2800 | YT-21000 |
Max. Width of Printing | 550mm | 750mm | 950mm |
Max. Printing Length | 914mm | 914mm | 914mm |
Max Diameter of Printing Length | Φ450mm | Φ450mm | Φ450mm |
Printing Speed | 5-60m/min | 5-60m/min | 5-60m/min |
Printing Color Number | 2.4.6 | 2.4.6 | 2.4.6 |
Format Mater Thickness | 0.02-0.06mm | 0.02-0.06mm | 0.02-0.06mm |
Total Power | 19kw | 19kw | 19kw |
Machine Weight | 1.5T | 2T | 2.5T |
Overall Dimensions(L×W×H)mm | 3850×1850×2250mm | 3850×2050×2350mm | 3850×2250×2350mm |
Flexo Printing Machine Optional Device:
1.PLC
2.Flexo Printing Ceramic Anilox Roll
3.Air Shaft
4.EPC
5.Auto Tension Control
Printing SAMPLE:

Air Shaft for Printing Machine :
Flexo Printing Cylinder:

Plastic Flexographic Printing Machine For Roll Plastic Film :
Printing Machine For Nonwoven :
4 Color Nonwoven Flexo Printing Machine Real Photos :
Flexographic Printing Machine Photos:

Customer Come to Our factory to check and Loading the Machine :
Loading Details:
Welcome contact me any time
