2015 Good Choice China Supplier CE Used Car Paint Booth for Sale/used Automotive Tools for Sale/spray Booth for Car

Dimensions:

Length(mm)

Width(mm)

Height(mm)

Outer Size

7,050

5,200

3,600

Internal Size

6,900

3,900

2,750

Entrance Door

Adopt with handle and lock

3,000

2,700

Operatior’s Door

Adopt with handle and Anti-Explosion

800

2,000

Features:

Total power 17.5 kw; 380V/3ph/50hz; Noise < 80db

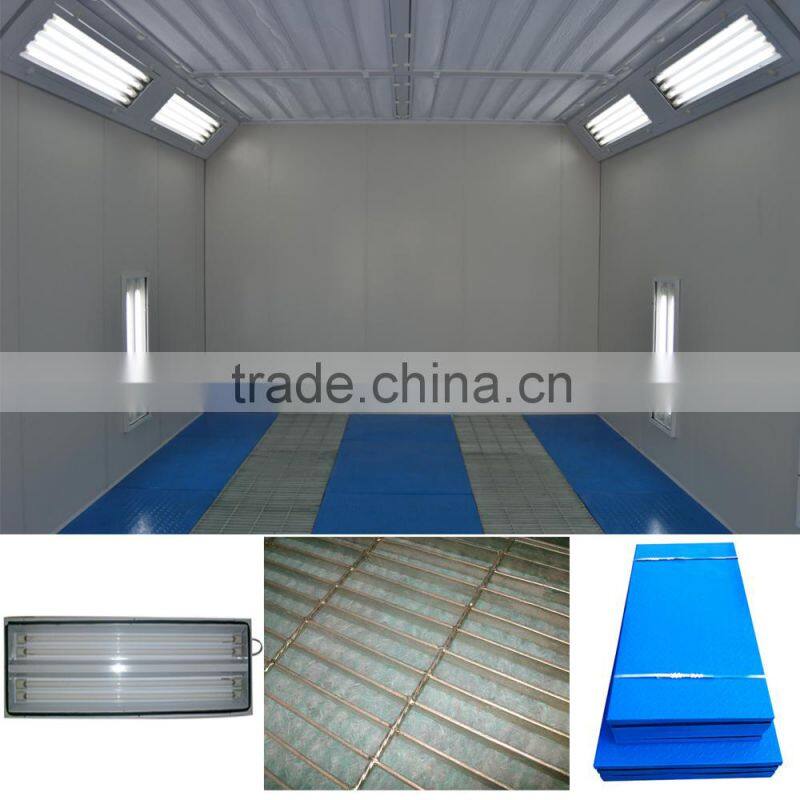

I. Wallboard

Adopt high quality fireproof insulation EPS panel, thickness: 75mm (Rock wall optional)

II. Foundation System

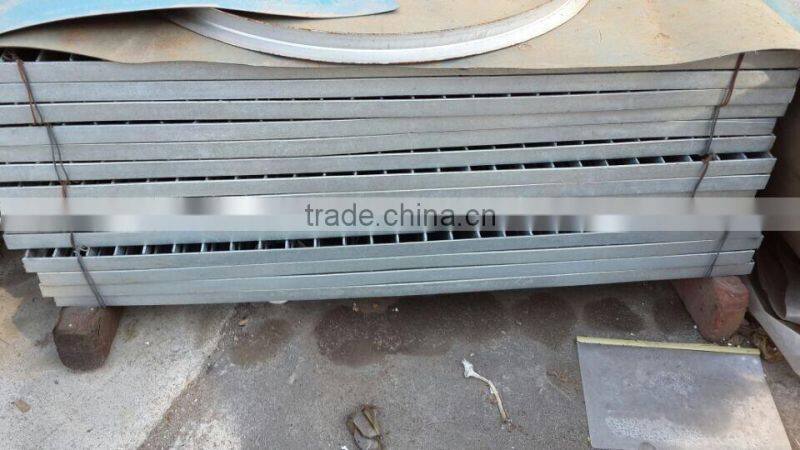

Full metal foundation, two rows flat steel grids and three rows metal non-slip diamond plates, the grids are twisted steel for the cross bar steel grating. Galvanized and beautiful, durable and better force bearing.

III. Heating System

Adopt one unit of Italy Riello diesel burner G20 (Gas burner and Electrical heating optional);

One set of heat exchanger, high efficient heat-resistant stainless steel as cycling ;

4-6 minutes (from 20-60℃) underbaking status, max baking temperature is 80℃;

One unit of Cabinet(Rock-wool insulation), Two pcs Air ducts.

IV. Filtration System

Pre-filters Can Capture Granules Larger than 10μm;

Ceiling filter can Capture Granules Bigger than 4μm.

Floor filter multilayer glass fiber, air cleanliness in room can reach 98%

V. Light System

Ceiling light, 8 group×4pcs = 32pcs×36w;

Bottom light, 8 group×4pcs = 32pcs×36w;

With light fixture, anti-explosion design.

VI. Ventilation System

Air -inlet fan 1 sets×7.5kw, Centrifugal; Air -outlet fan 1 set 7.5 kw, Centrifugal; Air flow speed in cabin 0.40m/s.

One set of Painting and baking exchange system

One set of Cabinet for the fans and three pcs air ducts

VII. Control Panel

One unit, including spray switch, baking switch, emergency stop, etc.

(Micro-Computer Programme controlling optional)

VIII. Other Include

All sets of hardware, fasteners and sealants
