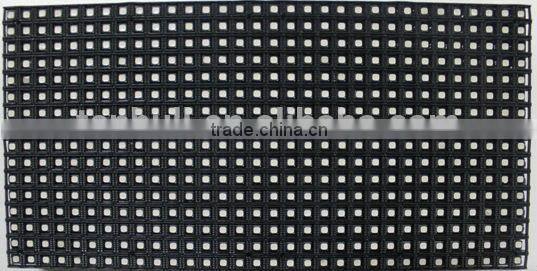

p6 outdoor smd led module Parameter | |||
Module Technical parameters |
UNIT |
parameters values |
|
Pixel pitch |
MM |
6 |
|
Panel size |
MM |
L192*H96*18 |
|
Physical density |
/M |
27777 |
|
Pixel configuration |
R/G/B |
1,1,1 |
|
Driving method |
Constant current 1/4scan |
||
LED Encapsulation |
SMD |
3030 |
|
Display resolution |
DOTS |
32*16=512ots |
|
Module weight |
KG |
0.18 |
|
Module port |
HUB75-B |
||
Module working voltage |
VDC |
5 |
|
Module consumption |
W |
25 |
|
Cabinet Technical parameters | |||
Viewing angle |
Deg. |
H120 V120 |
|
Option distance |
M |
8-120 |
|
Driving device |
2016/5020/20167 |
||
Every square metre module |
PCS |
54 |
|
Maximum power |
W/ M |
1300 |
|
Frame Frequency |
HZ/S |
≥60 |
|
Refresh frequency |
HZ/S |
≥1200 |
|
Equilibrium brightness |
CD/ M |
≥6500 |
|
Working environment temperature |
0 |
-10-60 |
|
Working environment humidity |
RH |
10%-70% |
|
Display working voltage |
VAC |
AC46-54HZ,220V±15%/110V±15% |
|
Colour temperature |
9500K-11500K |
||
Gray scale/color |
≥16.7M color |
||
Input signal |
RF S-Video RGB etc |
||
Control system |
nonlinearity card, display card,Linsn control system |
||
Mean free error time |
HOURS |
>5000 |
|
Life |
HOURS |
100000 |
|
Lamp failure frequency |
<0.0001 |
||
Antijam |
IEC801 |
||
Safety |
GB4793 |
||
Resist the electricity |
1500V last 1min No breakdown |
||
Steel box weight |
KG/ M |
standard steel box |
|
Earth leakage current |
mA |
||
IP rating |
The back IP40,The front IP50 |
||
Steel box size |
mm |
L:768 X H:768 X:100 |
|
Professional LED screens& LED Displays Module Manufacturer
-----SMD: p3/p4/p5/p6/p7.62/p10 indoor full color led module and led display.
-----Single Color:P10 red outdoor/P10 White outdoor/P10 Blue outdoor/P10 Green outdoor/P10 Yellow outdoor&SIMI-outdoor led module and led screen
-----Double Color:P10 double color/p16 double color/p20 double color SIMI-outdoor&outdoor led module and led screen
-----all of our led module has highly resolution, good image effect,and easy to install and convenient to carry;
----- Resonable price, good uniformity, stable capability and high brightness;
-----Aluminum alloy material both for fixed installation and hanging rental;
-----Own Unique Design LED Screen
