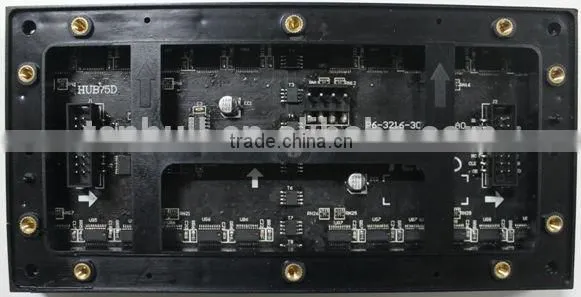

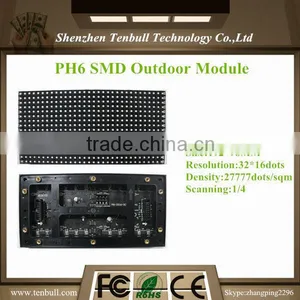

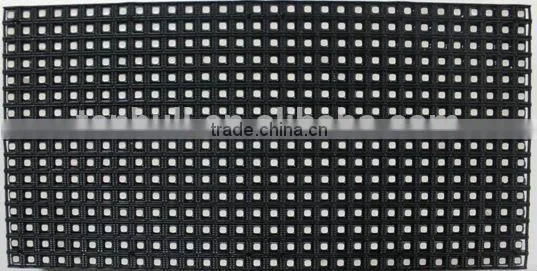

P6 RGB 1/4 Scan Outdoor SMD Module

Name: P6 RGB 1/4 Scan Outdoor SMD Module
Brand: tenbull
SKU: 134083247
Availability: InStock

US$ 34 - 35 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

tenbull

Model Number:

Shenzhen Tenbull Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name tenbull

Model Number P6

Usage Outdoor

Display Function Video

Pixels 16mm

Screen Dimension 192*96MM

Tube Chip Color Other, RGB

P6 RGB 1/4 Scan Outdoor SMD Module Module Parameter
Module Technical parameters		UNIT	parameters values
Pixel pitch		MM	6
Panel size		MM	L192H9618
Physical density		/M	27777
Pixel configuration		R/G/B	1,1,1
Driving method			Constant current 1/4scan
LED Encapsulation		SMD	3030
Display resolution		DOTS	32*16=512ots
Module weight		KG	0.18
Module port			HUB75-B
Module working voltage		VDC	5
Module consumption		W	25
Cabinet Technical parameters
Viewing angle	Deg.		H120 V120
Option distance	M		8-120
Driving device			2016/5020/20167
Every square metre module	PCS		54
Maximum power	W/ M		1300
Frame Frequency	HZ/S		≥60
Refresh frequency	HZ/S		≥1200
Equilibrium brightness	CD/ M		≥6500
Working environment temperature	⁰		-10-60
Working environment humidity	RH		10%-70%
Display working voltage	VAC		AC46-54HZ,220V±15%/110V±15%
Colour temperature			9500K-11500K
Gray scale/color			≥16.7M color
Input signal			RF S-Video RGB etc
Control system			nonlinearity card, display card,Linsn control system
Mean free error time	HOURS		>5000
Life	HOURS		100000
Lamp failure frequency			<0.0001
Antijam			IEC801
Safety			GB4793
Resist the electricity			1500V last 1min No breakdown
Steel box weight	KG/ M		standard steel box
Earth leakage current	mA
IP rating			The back IP40,The front IP50
Steel box size	mm		L:768 X H:768 X:100
