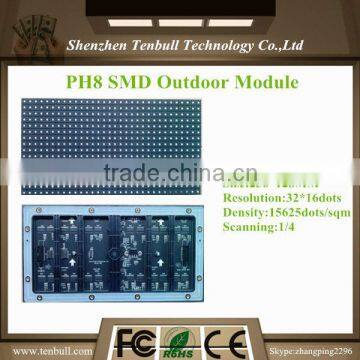

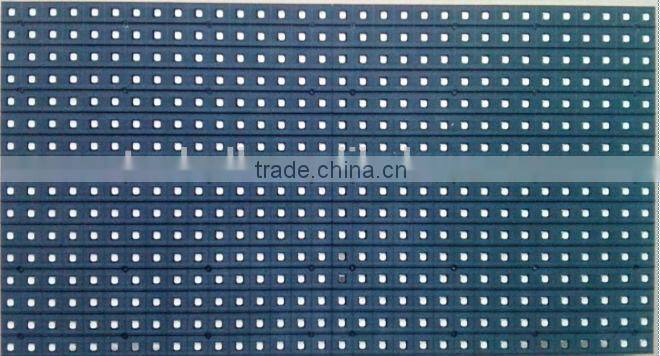

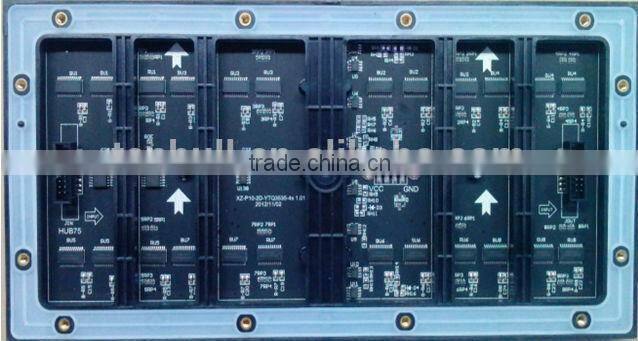

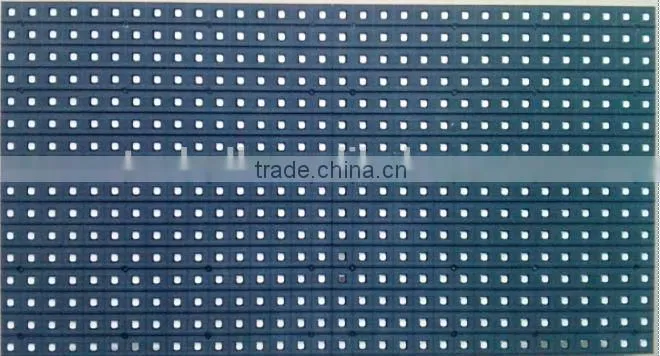

P8 RGB 1/4 Scan Outdoor SMD Module

P8 RGB 1/4 Scan Outdoor SMD Module thumbnail-1
P8 RGB 1/4 Scan Outdoor SMD Module photo-1
US$ 19 - 20 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
tenbull
Model Number:
P8
Usage:
Outdoor
Contact Supplier Request Quote Chat Now
Shenzhen Tenbull Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
sz
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name tenbull
Model Number P8
Usage Outdoor
Display Function Video
Pixels Other, 8mm
Screen Dimension 256*128MM
Tube Chip Color Other, RGB





P8 RGB 1/4 Scan Outdoor SMD Module Parameter

Module Technical parameters

UNIT

parameters values

Pixel pitch

MM

8

Panel size

MM

L:256 X H:128X13

Physical density

/M2

15625

Pixel configuration

R/G/B

1,1

Driving method





1/4 Constant current 1/4scan

LED Encapsulation

SMD

3535

Display resolution

DOTS

32X16=512ots

Module weight

KG

0.20

Module port



HUB75-B

Module working voltage

VDC

5

Module consumption

W

25

Cabinets Technical parameters

Viewing angle

Deg.

H120 V120

Option distance

M

8-120

Driving device



2016/5020

Every square metre module

PCS

30.5

Maximum power

W/ M2

762

Frame Frequency

HZ/S

≥60

Refresh frequency

HZ/S

≥1200

Equilibrium brightness

CD/ M2

≥5500

Working environment temperature

0C

-10~60

Working environment humidity

RH

10%~70%

Display working voltage

VAC

AC46~54HZ,220V±15%/110V±15%

Colour temperature



9500K-11500K

Gray scale/color



≥16.7M color

nput signal



RF S-Video RGB etc

Control system



PCTV nonlinearity card, display card,Linsn control system

Mean free error time

HOURS

>5000

Life

HOURS

100000

Lamp failure frequency



<0.0001

Antijam



IEC801

Safety



GB4793

Resist the electricity



1500V last 1min No breakdown

Steel box weight

KG/ M2

25(standard steel box)

Earth leakage current

mA



IP rating



The back IP40,The front IP50

Steel box size

mm

L768XH768X100




P8 RGB 1/4 Scan Outdoor SMD ModuleP8 RGB 1/4 Scan Outdoor SMD Module





P8 RGB 1/4 Scan Outdoor SMD ModuleP8 RGB 1/4 Scan Outdoor SMD Module





Professional LED screens& LED Displays Module Manufacturer



-----SMD: p3/p4/p5/p6/p7.62/p10 indoor full color led module and led display.



-----Single Color:P10 red outdoor/P10 White outdoor/P10 Blue outdoor/P10 Green outdoor/P10 Yellow outdoor&SIMI-outdoor led module and led screen



-----Double Color:P10 double color/p16 double color/p20 double color SIMI-outdoor&outdoor led module and led screen



-----all of our led module has highly resolution, good image effect,and easy to install and convenient to carry;



----- Resonable price,good uniformity, stable capability and high brightness;



-----Aluminum alloy material both for fixed installation and hanging rental;



-----Own Unique Design LED Screen
