Home > Consumer Electronics > LED Display > Indoor LED Display > Smd Outdoor P10 Led Display Module,p6/p8/p10 Smd Outdoor Module

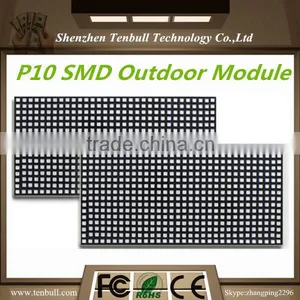

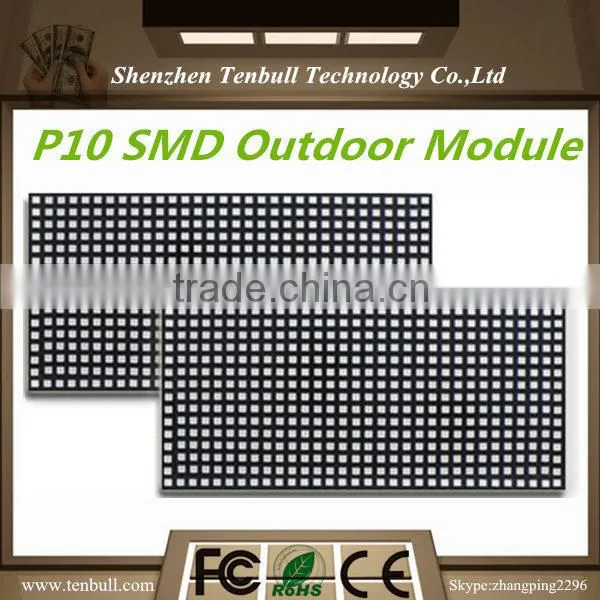

Smd Outdoor P10 Led Display Module,p6/p8/p10 Smd Outdoor Module

Name: Smd Outdoor P10 Led Display Module,p6/p8/p10 Smd Outdoor Module
Brand: tenbull
SKU: 134083243
Availability: InStock

Smd Outdoor P10 Led Display Module,p6/p8/p10 Smd Outdoor Module thumbnail-1

Smd Outdoor P10 Led Display Module,p6/p8/p10 Smd Outdoor Module photo-1

US$ 36 - 38 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

tenbull

Model Number:

P10

Contact Supplier Request Quote Chat Now

Shenzhen Tenbull Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name tenbull

Model Number P10

Usage Outdoor

Tube Chip Color Other, RGB

Display Function Video

Pixels Other, 10MM

Screen Dimension 320*160MM

Easy Maintenance:designed with easy assembly and installation

Wide viewing angle:patented design module mask with 160°/ 160° viewing perfect angle and good faltness.

Environment friendly:20% power saving to protect environment and saving your cost

Long using-life:Apexls choose high quality components patent circuit board design for display to ensure the using-life.

Seamless Assembly:Processed by electromechanical machining with the accuracy to0.1mm.

Convenient:Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and display mode as VGA+VIDE and VGA. Display all kinds of word, text, graph, picture, video, 2-dimensional, 3- dimensional animation and TV and VCD other information with your PC does synchronously. Compatible with a variety of signal source input, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.

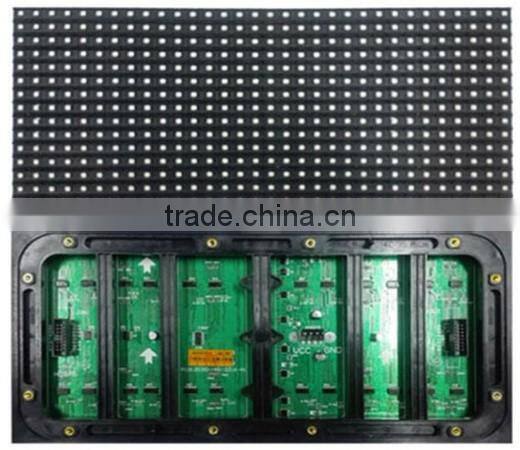

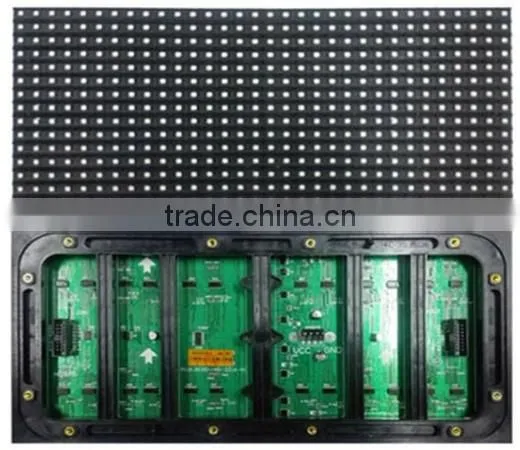

smd outdoor p10 led display module

Module Spec
Technical parameters		UNIT	parameters values
Pixel pitch		MM	10
Panel size		MM	L320XH160X20
Physical density		/M²	10000
Pixel configuration		R/G/B	1,1,1
Driving method			Constant current 1/4scan
LED Encapsulation		SMD	3535
Display resolution		DOTS	32X16=512ots
Module weight		KG	0.32
Module port			HUB75
Module working voltage		VDC	5
Module consumption		W	30
Cabinet Spec
Viewing angle	Deg.		H120 V120
Option distance	M		10-150
Driving device			2016/5020
Every square metre module	PCS		19.5
Maximum power	W/ M²		600
Frame Frequency	HZ		≥60
Refresh frequency	HZ		≥1000
Equilibrium brightness	CD/ M²		≥4500
Working environment temperature	⁰C		-10~60
Working environment humidity	RH		10%~70%
Display working voltage	VAC		AC46~54HZ,220V±15%/110V±15%
Colour temperature			9500K-11500K
Gray scale/color			≥16.7M color
Input signal			RF S-Video RGB etc
Control system			PCTV nonlinearity card,DVI display card,Linsn control system
Mean free error time	HOURS		>5000
Life	HOURS		100000
Lamp failure frequency			<0.0001
Antijam			IEC801
Safety			GB4793
Resist the electricity			1500V last 1min No breakdown
Steel box weight	KG/ M²		60 standard steel box
Earth leakage current	mA
IP rating			The back IP40,The front IP50
Steel box size	mm		L960XH960X100
