MTZ200T Danfoss Tandem Compressor for MTZ-100
US$ 1,000 - 5,000
/ Unit
1 Unit(Min. Order)
- Guangzhou/Shenzhen
- T/T Money Gram Credit Card PayPal
You May Like
-
Danfoss Refrigerator Compressor Price LTZ44
-
LTZ50 Danfoss Refrigerator Compressor Price
-
MTZ18,MTZ22,MTZ28,MTZ32,MTZ36,MTZ40,MTZ50,MTZ56,MTZ64,MTZ72 Danfoss Compressor
-
Maneurop Compressor Model,maneurop Scroll Compressor MTZ36
-
Maneurop Compressor,maneurop Compressor for Sale, Maneurop Compressor on Sale MTZ40
-
Danfoss Refrigerator Compressor Size MTZ81
Product Details
| Place of Origin | France | Brand Name | Danfoss Maneurop | |
| Model Number | MTZ200T | Type | Refrigeration Compressor | |
| Application | Refrigeration Parts | Certification | CE |
Product Description
Danfoss Maneurop Tandem Compressor
1,MTZ160,MTZ144,MTZ125,MTZ100
2,MT,MTZ series
3,SH,SY,SZ,SM series
4,MTM,MTZ,LTZ tandem
Type: Hermetic piston compressors
Producer: Maneurop
Series: MTZ
Model: MTZ200T
Technical data
| Composition: | 2 x MTZ100 | |
| Cylinder count: | 4 + 4 | |
| Displacement [m³/h]: | 2 X 29,8 | |
| Cylinder capacity [cm³]: | 342,5 | |
| RPM [min-1]: | 2900 | |
| Weight [kg]: | 134 | |
| Oil charge [dm³]: | 8 | |
| Oil type: | 160PZ | |
| Crankcase heater type: | 2 x PTC 35 W | |
| Maximum system test pressure low side / high side: | 25 / 30 | |
| Maximum number of starts without softstart [1/h]: | 12 | |
| Refrigerant charge limit [dm³]: | 20 | |
| Refrigerant: | R134a, R404A/R507, R407C | |
| Sound power [dB]: | 84 | |
| Sound power with accoustic hood [dB]: | 78 |
Electrical data
| Nominal voltage [V/~/Hz]: | 380-400V/3/50Hz | |
| Voltage range: | 360V - 440V | |
| Winding resistance (between phases) [Ω]: | 1,85 + 1,85 | |
| Maximum Continuous Current (MCC) [A]: | 22 + 22 | |
| Starting current [A]: | 90 + 90 |
Connections
| milimeters | inches | ||
| Suction Rotolock valve connection: | - | ||
| Discharge Rotolock valve connection: | - | ||
| Suction connection with supplied sleeve: | 1 5/8" | ||
| Discharge connection with supplied sleeve: | 1 1/8" |
Approvals
| CCC | - | |
| CE | + | |
| UL | + |
Standard equipment
- oil sight glass
- both compressors are equiped with Rotolock valves
- discharge line equiped with reverse valves
Optional equipment
- crankcase heater
- belt type heater
- soft-start kit
- accoustic hood
Application
- high and medium evaporating temperatures
(R134a from 20 ºC to -15 ºC)
(R404A/R507 from 10 ºC to -30 ºC)
(R407C from 15 ºC to -15 ºC)

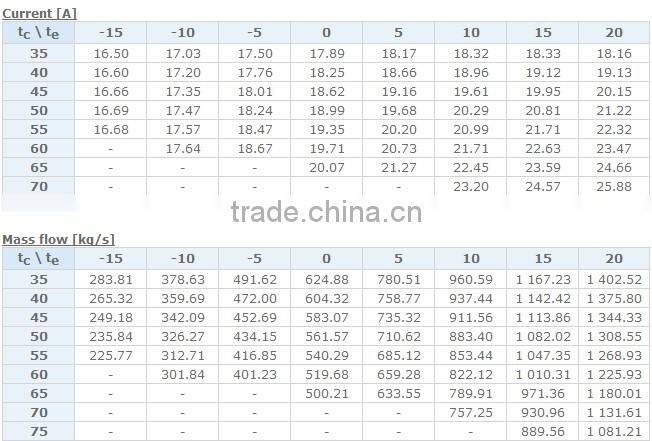

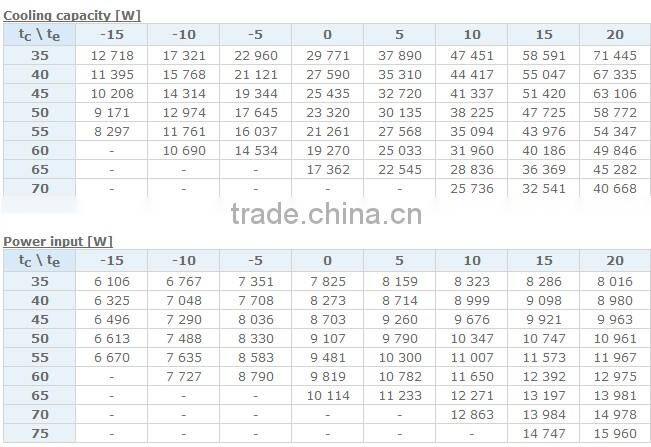

Capacity: R-134A,R407C,R404A/R507

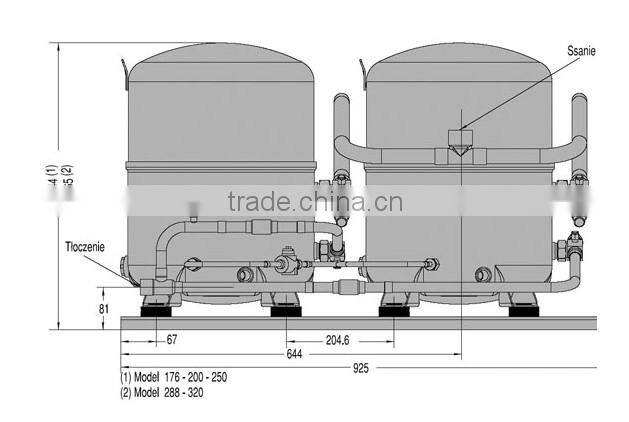

Drawing:

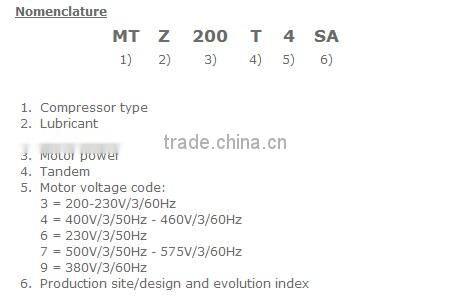

Model Means:

Pictures:
