5hp Danfoss Scroll Compressor MLZ038
US$ 200 - 2,000
/ Unit
1 Unit(Min. Order)
- Guangzhou/Shenzhen
- T/T Money Gram Credit Card PayPal
You May Like
Product Details
| Place of Origin | France | Brand Name | Danfoss Maneurop | |
| Model Number | MLZ038 | Type | Refrigeration Compressor | |
| Application | Refrigeration Parts | Certification | CE |
Product Description
Danfoss Maneurop Compressor MLZ Series:
MLZ015,MLZ019,MLZ021,MLZ026,MLZ030,MLZ038,MLZ045,MLZ048,MLZ058,MLZ066,MLZ076
Low price
Type: Hermetic scroll compressors
Producer: Danfoss-Maneurop
Series: MLZ
Model: MLZ038
Technical data
| Displacement [m³/h]: | 14,1 | |
| Swept volume [cm³/rev]: | 81 | |
| RPM [min-1]: | 2900 | |
| Power [HP]: | 5 | |
| Sound power [dB]: | 71 | |
| Sound power with accoustic hood [dB]: | 63 | |
| Weight [kg]: | 37 | |
| Oil charge [dm³]: | 1,6 | |
| Oil type: | PVE | |
| Maximum system test pressure low side / high side: | 25 / 41 | |
| Maximum number of starts without softstart [1/h]: | 12 | |
| Refrigerant charge limit [dm³]: | 5,4 | |
| Refrigerant: | R404A - R507A - R134a |
Connections
| inches | |||
| Suction connection with supplied sleeve: | 7/8" | ||
| Discharge connection with supplied sleeve: | 1/2" |
Approvals
| CCC | - | |
| CE | + | |
| UL | - |
Standard equipment
- rubber vibration absorbers
- oil sight glass
- oil equalization
Optional equipment
- belt type heater
- rotolock connections avaible with adaptors
- soft-start kit
- discharge thermostatic protection
Application
- medium evaporating temperatures
(R404A/R507 from 15 ºC to -25 ºC)

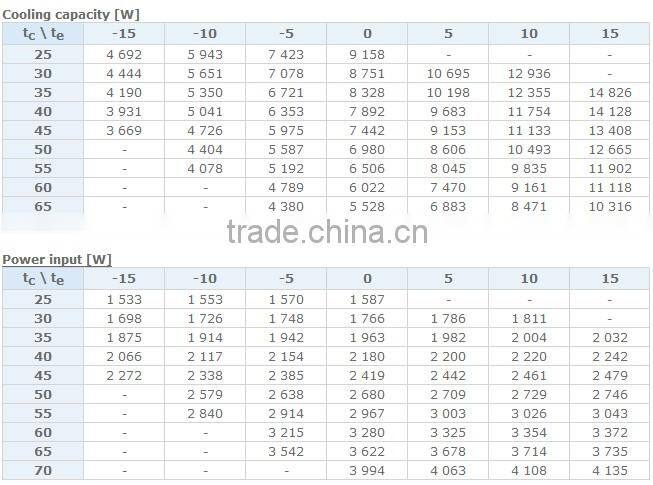

Capacity : R404A/R507A,R134a,R22
Model Means:
Dimensions:
Pictures:
