Home > Industrial Equipment & Components > Heater & Heat Exchanger > Heat Exchanger > Danfoss Scroll Compressor for Sale SZ285
US$ 500 - 5,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
France
Brand Name:
Danfoss
Model Number:
SZ285
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Danfoss Scroll Compressor on Sale SZ290,scroll Compressor on Sale,danfoss Scroll CompressorUS$ 500 - 5,000MOQ: 1 Unit -
Danfoss Scroll Compressor Price SZ296,scroll Compressor Low PriceUS$ 500 - 5,000MOQ: 1 Unit
-
Danfoss Scroll Compressor Low Price SZ310US$ 500 - 5,000MOQ: 1 Unit
-
Danfoss Scroll Compressor Best Price SZ320US$ 500 - 5,000MOQ: 1 Unit
-
Danfoss Scroll Compressor Models SZ322US$ 500 - 5,000MOQ: 1 Unit
Place of Origin
France
Brand Name
Danfoss
Model Number
SZ285
Type
Other, Refrigeration Compressor, Hermetic Scroll Compressors-Tandem
Application
Refrigeration Parts
Certification
Other, RoHS
Danfoss Compressor SM,SZ in Tandem
1,low price &high quality
2,MT,MTZ series
3,SH,SY,SZ,SM series
4,MTM,MTZ,LTZ tandem
Type: Hermetic scroll compressors
Producer: Maneurop
Series: SZ (tandem)
Model: SZ285
Technical data
| Composition: | SZ160 + SZ125 | |
| Displacement [m³/h]: | 66,7 | |
| Cylinder capacity [cm³]: | 383,2 | |
| RPM [min-1]: | 2900 | |
| Weight [kg]: | 200 | |
| Oil charge [dm³]: | 8 | |
| Oil type: | 160SZ | |
| Maximum system test pressure low side / high side: | 25 / 32 | |
| Maximum number of starts without softstart [1/h]: | 12 | |
| Refrigerant charge limit [dm³]: | 16 | |
| Refrigerant: | R407C, R134a |
Electrical data
| Nominal voltage [V/~/Hz]: | 380-400V/3/50Hz | |
| Voltage range: | 380V - 400V | |
| Winding resistance (between phases) [Ω]: | 0,94 + 1,16 | |
| Maximum Continuous Current (MCC) [A]: | - | |
| Starting current [A]: | - |
Connections
| milimeters | inches | ||
| Suction Rotolock valve connection: | 2 1/8" | ||
| Discharge Rotolock valve connection: | 1 1/8" | ||
| Suction connection with supplied sleeve: | - | ||
| Discharge connection with supplied sleeve: | - |
Approvals
| CCC | - | |
| CE | + | |
| UL | + |
Standard equipment
- soldered valve connections, for selected models valve connections
- rubber vibration absorbers
- oil sight glass
Optional equipment
- oil equalization
- belt type heater
- soft-start kit
- accoustic hood
- discharge thermostatic protection
Application
- high and medium evaporating temperatures
(R134a from -15 ºC to 15 ºC)
(R404A/R507 from -20 ºC to 10 ºC)
(R407C from -20 ºC to 15 ºC) - condensing temperature from 30 ºC to 65 ºC
Capacity: R134a,R407C

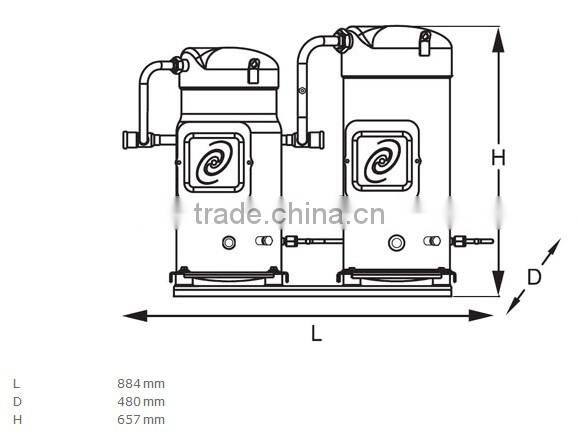

Drawing:
Model Means:
Pictures:
