Place of Origin France
Brand Name Danfoss
Model Number SZ310
Type Refrigeration Compressor
Application Refrigeration Parts
Certification CE

Danfoss Compressor SM,SZ in Tandem
1,low price &high quality
2,MT,MTZ series
3,SH,SY,SZ,SM series
4,MTM,MTZ,LTZ tandem



Type: Hermetic scroll compressors
Producer: Maneurop
Series: SZ (tandem)

                                                                      Model: SZ310

Technical data

Composition:SZ185 + SZ125
Displacement [m³/h]:72,5
Cylinder capacity [cm³]:416,5
RPM [min-1]:2900
Weight [kg]:200
Oil charge [dm³]:10
Oil type:160SZ
Maximum system test pressure low side / high side:25 / 32
Maximum number of starts without softstart [1/h]:12
Refrigerant charge limit [dm³]:17
Refrigerant:R407C, R134a

Electrical data

Nominal voltage [V/~/Hz]:380-400V/3/50Hz
Voltage range:380V - 400V
Winding resistance (between phases) [Ω]:0,77 + 1,16
Maximum Continuous Current (MCC) [A]:-
Starting current [A]:-

Connections
 milimetersinches
Suction Rotolock valve connection: 2 1/8"
Discharge Rotolock valve connection: 1 1/8"
Suction connection with supplied sleeve: -
Discharge connection with supplied sleeve: -

Approvals

CCC-
CE+
UL+


Standard equipment
  • soldered valve connections, for selected models valve connections
  • rubber vibration absorbers
  • oil sight glass
Optional equipment
  • oil equalization
  • belt type heater
  • soft-start kit
  • accoustic hood
  • discharge thermostatic protection
Application
  • high and medium evaporating temperatures
    (R134a from -15 ºC to 15 ºC)
    (R404A/R507 from -20 ºC to 10 ºC)
    (R407C from -20 ºC to 15 ºC)
  • condensing temperature from 30 ºC to 65 ºC


Capacity:  R134a,R407C

Danfoss Scroll Compressor low price SZ310Danfoss Scroll Compressor low price SZ310Danfoss Scroll Compressor low price SZ310Danfoss Scroll Compressor low price SZ310

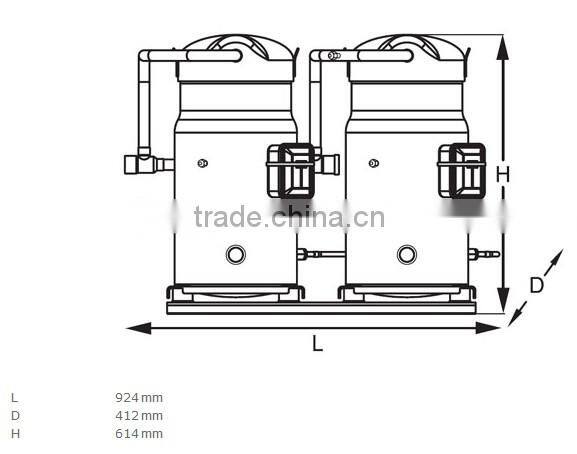

Drawing:
 Danfoss Scroll Compressor low price SZ310


Model Means:
Danfoss Scroll Compressor low price SZ310


Pictures:
Danfoss Scroll Compressor low price SZ310Danfoss Scroll Compressor low price SZ310Danfoss Scroll Compressor low price SZ310Danfoss Scroll Compressor low price SZ310Danfoss Scroll Compressor low price SZ310Danfoss Scroll Compressor low price SZ310
