Place of Origin France
Brand Name Danfoss
Model Number SZ230
Type Other, Refrigeration Compressor, Hermetic Scroll Compressors-Tandem
Application Refrigeration Parts
Certification Other, RoHS

Danfoss Compressor SM,SZ in Tandem
1,low price &high quality
2,MT,MTZ series
3,SH,SY,SZ,SM series
4,MTM,MTZ,LTZ tandem



Type: Hermetic scroll compressors
Producer: Maneurop
Series: SZ (tandem)

                                                      Model: SZ230

Technical data

Composition:2 x SZ115
Displacement [m³/h]:54
Cylinder capacity [cm³]:310
RPM [min-1]:2900
Weight [kg]:170
Oil charge [dm³]:8
Oil type:160SZ
Maximum system test pressure low side / high side:25 / 32
Maximum number of starts without softstart [1/h]:12
Refrigerant charge limit [dm³]:15
Refrigerant:R407C, R134a

Electrical data

Nominal voltage [V/~/Hz]:380-400V/3/50Hz
Voltage range:380V - 400V
Winding resistance (between phases) [Ω]:1,16 + 1,16
Maximum Continuous Current (MCC) [A]:-
Starting current [A]:-

Connections
 milimetersinches
Suction Rotolock valve connection: 1 5/8"
Discharge Rotolock valve connection: 1 1/8"
Suction connection with supplied sleeve: -
Discharge connection with supplied sleeve: -

Approvals


CCC-
CE+
UL+




Standard equipment
  • soldered valve connections, for selected models valve connections
  • rubber vibration absorbers
  • oil sight glass
Optional equipment
  • oil equalization
  • belt type heater
  • soft-start kit
  • accoustic hood
  • discharge thermostatic protection
Application
  • high and medium evaporating temperatures
    (R134a from -15 ºC to 15 ºC)
    (R404A/R507 from -20 ºC to 10 ºC)
    (R407C from -20 ºC to 15 ºC)
  • condensing temperature from 30 ºC to 65 ºC


Capacity:  R134a,R407C

Danfoss Scroll Compressor in tandem SZ230,Hermetic Scroll Compressors-TandemDanfoss Scroll Compressor in tandem SZ230,Hermetic Scroll Compressors-TandemDanfoss Scroll Compressor in tandem SZ230,Hermetic Scroll Compressors-TandemDanfoss Scroll Compressor in tandem SZ230,Hermetic Scroll Compressors-Tandem

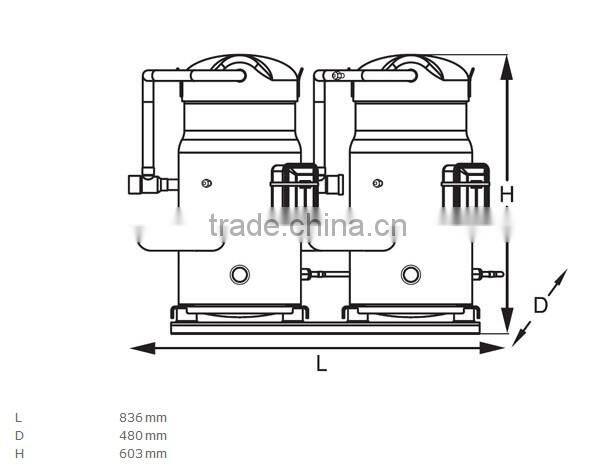

Drawing:

Danfoss Scroll Compressor in tandem SZ230,Hermetic Scroll Compressors-Tandem

Model Means:
Danfoss Scroll Compressor in tandem SZ230,Hermetic Scroll Compressors-Tandem


Pictures:
Danfoss Scroll Compressor in tandem SZ230,Hermetic Scroll Compressors-TandemDanfoss Scroll Compressor in tandem SZ230,Hermetic Scroll Compressors-TandemDanfoss Scroll Compressor in tandem SZ230,Hermetic Scroll Compressors-TandemDanfoss Scroll Compressor in tandem SZ230,Hermetic Scroll Compressors-TandemDanfoss Scroll Compressor in tandem SZ230,Hermetic Scroll Compressors-TandemDanfoss Scroll Compressor in tandem SZ230,Hermetic Scroll Compressors-Tandem
