Danfoss Compressor Tandem Type SM220

Dongguan Famous Refrigerant Equipment Co., Ltd.
Danfoss Compressor Tandem Type SM220 thumbnail-1
Danfoss Compressor Tandem Type SM220 thumbnail-2
Danfoss Compressor Tandem Type SM220 thumbnail-3
Danfoss Compressor Tandem Type SM220 thumbnail-4
Danfoss Compressor Tandem Type SM220 thumbnail-5
Danfoss Compressor Tandem Type SM220 thumbnail-6
Danfoss Compressor Tandem Type SM220 photo-1
Danfoss Compressor Tandem Type SM220 photo-2
Danfoss Compressor Tandem Type SM220 photo-3

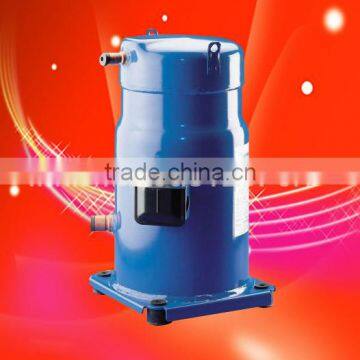

Danfoss Compressor Tandem Type SM220 photo-4
Danfoss Compressor Tandem Type SM220 photo-5
Danfoss Compressor Tandem Type SM220 photo-6
US$ 500 - 5,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
France
Brand Name:
Danfoss
Model Number:
SM220
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin France
Brand Name Danfoss
Model Number SM220
Type Other, Refrigeration Compressor, Hermetic Scroll Compressors-Tandem
Application Refrigeration Parts
Certification Other, RoHS

Danfoss Compressor SM,SZ in Tandem
1,low price &high quality
2,MT,MTZ series
3,SH,SY,SZ,SM series
4,MTM,MTZ,LTZ tandem



Type: Hermetic scroll compressors
Producer: Maneurop
Series: SM (tandem)

                                                                   Model: SM220

Technical data

Composition:2 x SM110
Displacement [m³/h]:50,2
Cylinder capacity [cm³]:288,4
RPM [min-1]:2900
Weight [kg]:170
Oil charge [dm³]:7
Oil type:160P
Maximum system test pressure low side / high side:25 / 32
Maximum number of starts without softstart [1/h]:12
Refrigerant charge limit [dm³]:12
Refrigerant:R22

Electrical data

Nominal voltage [V/~/Hz]:380-400V/3/50Hz
Voltage range:380V - 400V
Winding resistance (between phases) [Ω]:1,05 + 1,05
Maximum Continuous Current (MCC) [A]:20 + 20
Starting current [A]:130 + 130

Connections
 milimetersinches
Suction Rotolock valve connection: 1 5/8"
Discharge Rotolock valve connection: 1 3/8"
Suction connection with supplied sleeve: -
Discharge connection with supplied sleeve: -

Approvals

CCC-
CE+
UL+



Standard equipment
  • soldered valve connections, for selected models valve connections
  • rubber vibration absorbers
  • oil sight glass
Optional equipment
  • oil equalization
  • belt type heater
  • soft-start kit
  • accoustic hood
  • discharge thermostatic protection
Application
  • high and medium evaporating temperatures
    (R22 from -20 ºC to 15 ºC)
  • condensing temperature from 30 ºC to 65 ºC

Capacity:  R22

Danfoss Compressor tandem type SM220Danfoss Compressor tandem type SM220Danfoss Compressor tandem type SM220Danfoss Compressor tandem type SM220

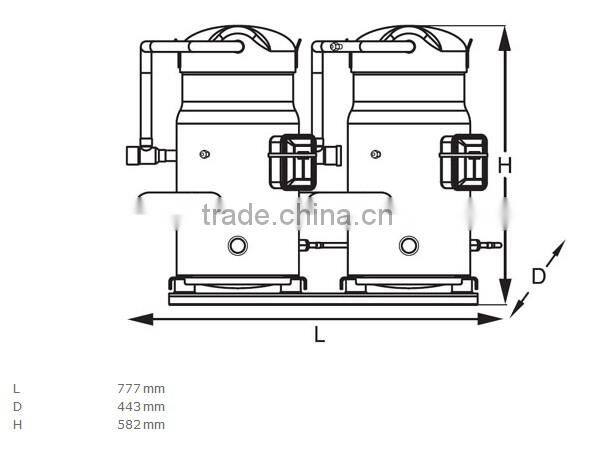

Drawing:

Danfoss Compressor tandem type SM220

Model Means:
Danfoss Compressor tandem type SM220


Pictures:
Danfoss Compressor tandem type SM220Danfoss Compressor tandem type SM220Danfoss Compressor tandem type SM220Danfoss Compressor tandem type SM220Danfoss Compressor tandem type SM220Danfoss Compressor tandem type SM220
