Danfoss Tandem Compressor MTM200T

Name: Danfoss Tandem Compressor MTM200T
Brand: Danfoss Maneurop
Availability: InStock

FOB Price

US$ 1,000 - 5,000 / Unit

1 Unit(Min. Order)

Port Guangzhou/Shenzhen
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	France	Brand Name	Danfoss Maneurop
Model Number	MTM200T	Type	Other, Refrigeration Compressor, Hermetic piston compressors
Application	Refrigeration Parts	Certification	Other, RoHS

Product Description

Danfoss Maneurop Compressor
1,MT160,MT144,MT125,MT100,MT80,MT64
2,MT,MTZ series
3,SH,SY,SZ,SM series
4,MTM,MTZ,LTZ in tandem

Type: Hermetic piston compressors

Producer: Maneurop

Series: MTM

Model: MTM200T

Technical data


Composition:	2 x MT100
Cylinder count:	4 + 4
Displacement [m³/h]:	2 X 29,8
Cylinder capacity [cm³]:	342,5
RPM [min^-1]:	2900
Weight [kg]:	134
Oil charge [dm³]:	8
Oil type:	160P
Crankcase heater type:	2 x PTC 35 W
Maximum system test pressure low side / high side:	25 / 30
Maximum number of starts without softstart [1/h]:	12
Refrigerant charge limit [dm³]:	20
Refrigerant:	R22
Sound power [dB]:	84
Sound power with accoustic hood [dB]:	78

Electrical data


Nominal voltage [V/~/Hz]:	380-400V/3/50Hz
Voltage range:	360V - 440V
Winding resistance (between phases) [Ω]:	1,57 + 1,57
Maximum Continuous Current (MCC) [A]:	22 + 22
Starting current [A]:	90 + 90

Connections

	milimeters	inches
Suction Rotolock valve connection:		-
Discharge Rotolock valve connection:		-
Suction connection with supplied sleeve:		1 5/8"
Discharge connection with supplied sleeve:		1 1/8"

Approvals


CCC	-
CE	+
UL	+

Standard equipment

oil sight glass
both compressors are equiped with Rotolock valves
discharge line equiped with reverse valves

Optional equipment

crankcase heater
belt type heater
soft-start kit
accoustic hood

Application

high and medium evaporating temperatures
(R22 from 15 ºC to -25 ºC)

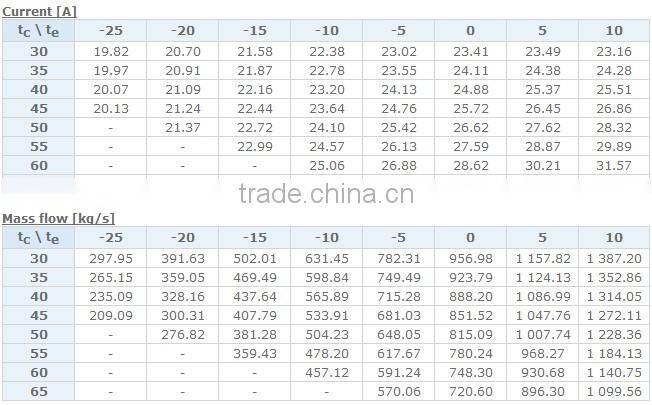

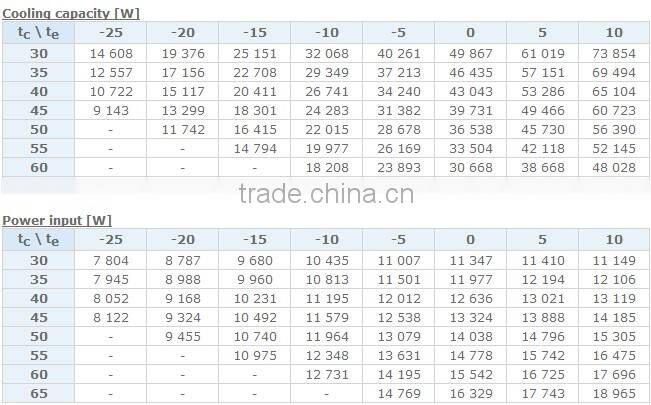

Capacity: R22

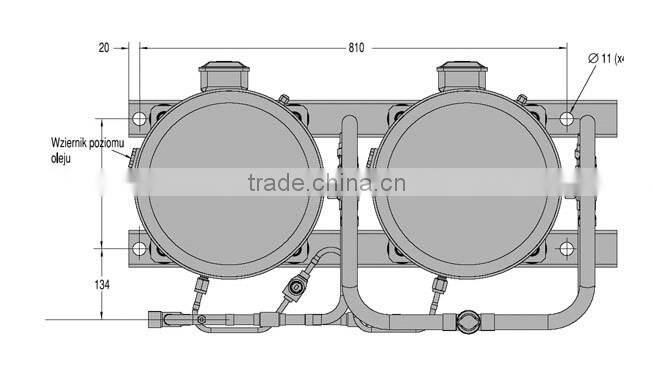

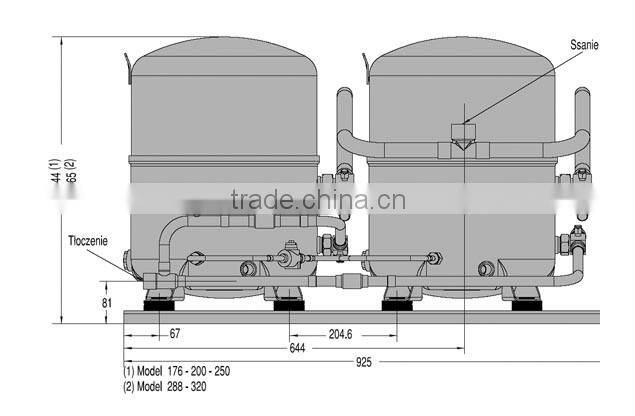

Drawing:

Model Means:

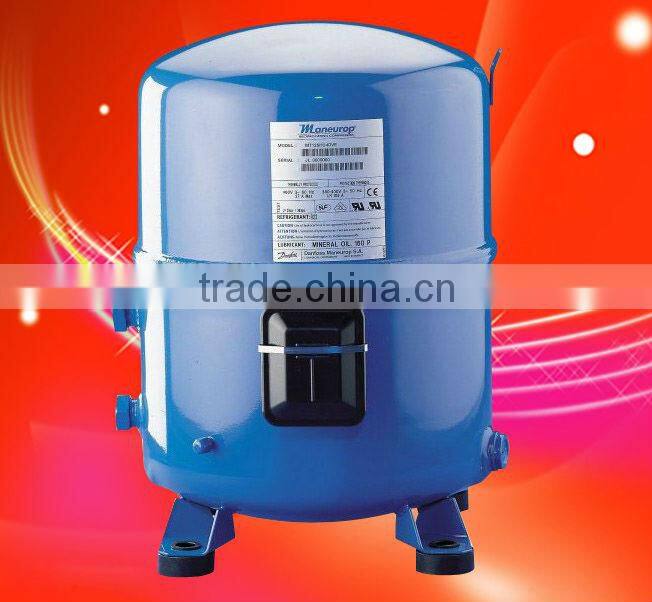

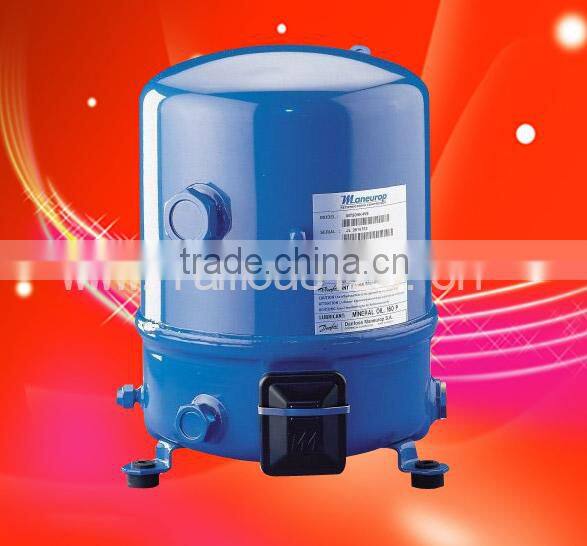

Pictures:
