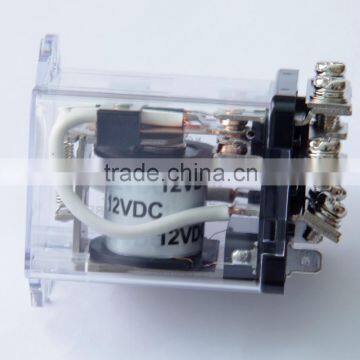

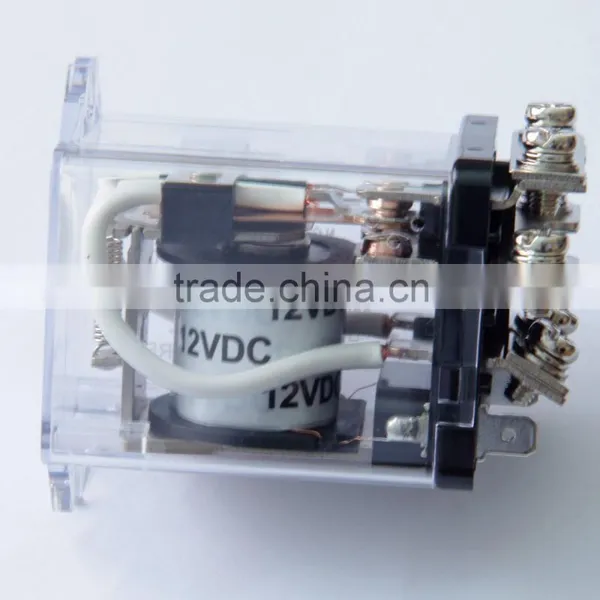

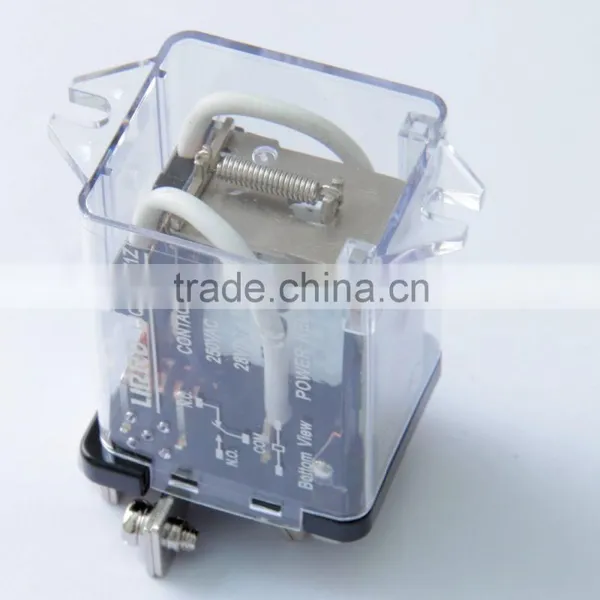

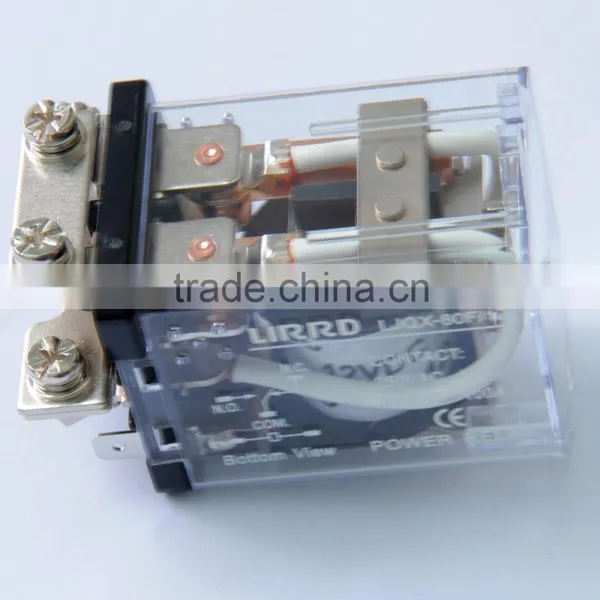

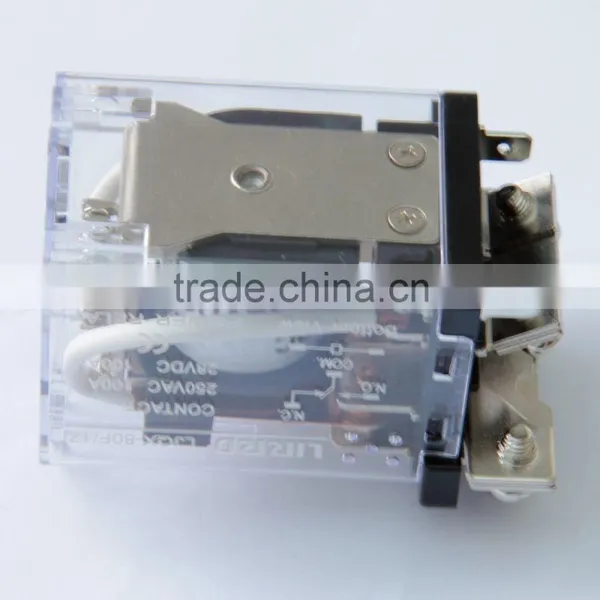

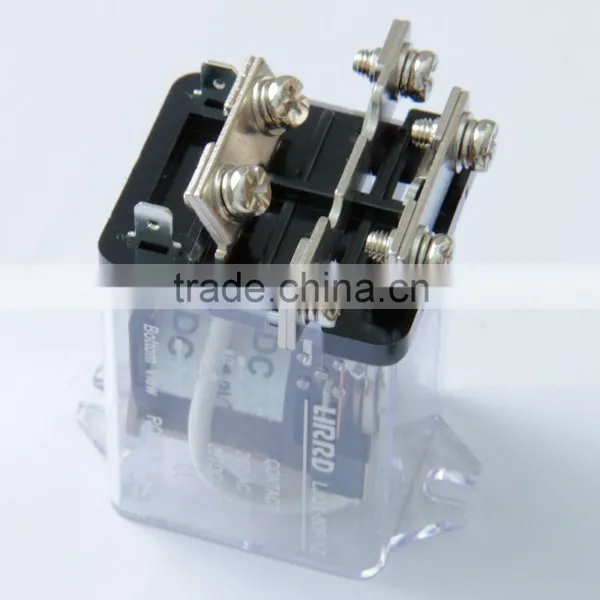

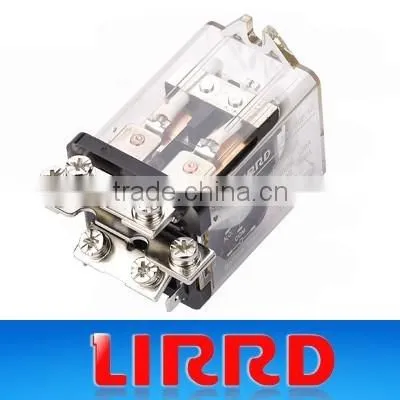

12 volt dcGeneral purpose high Power Relay(JQX-80F)/100Amp power relay
Model |
LJQX-80F/1Z |
|

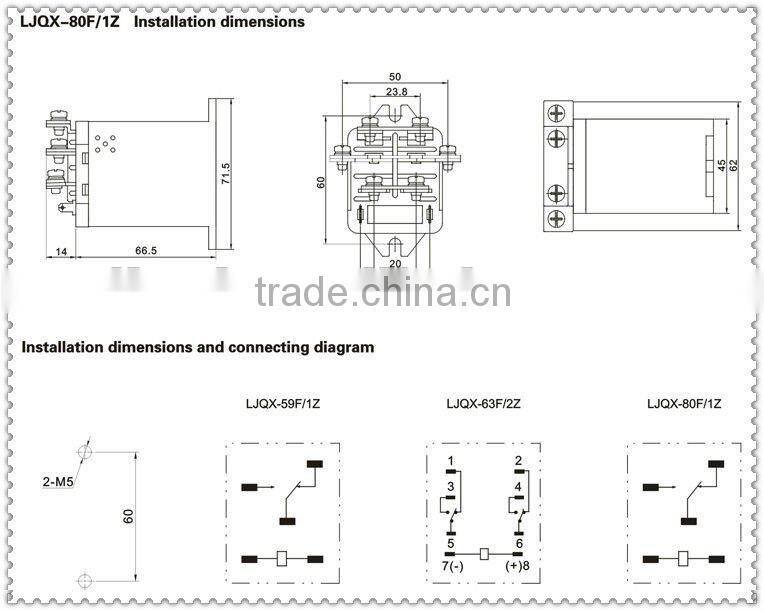

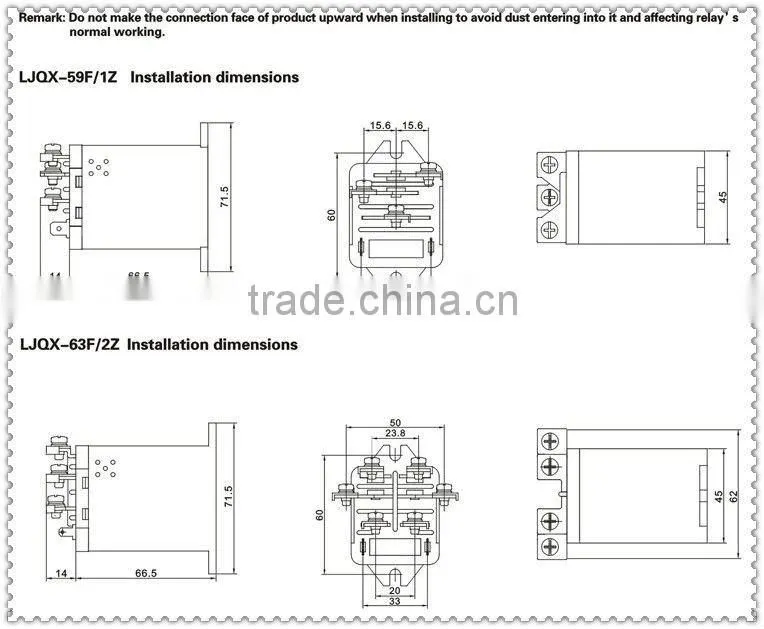

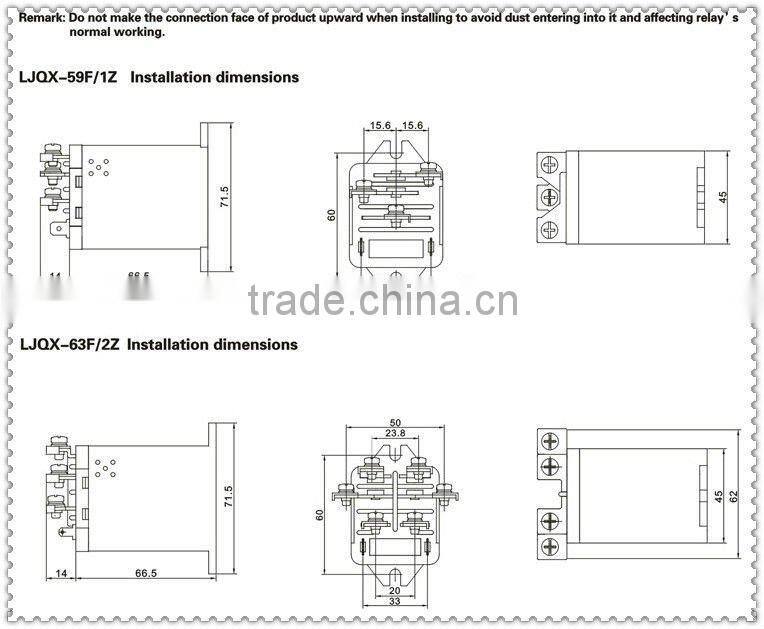

Dimension |
80.5 x 62.0 x 71.5mm |
|
Coil voltage |
12VDC/24VDC/220VAC for normal |
|
|
Contact |
Form |
1Z 1H 1D |
Material |
Silver alloy |
|
Resistance Performance |
100A/28VDC/250VAC |
|
Coil power at 23℃ |
DC(W) |
≤4.8W |
AC(VA) |
≤7.5VA |
|
Coil voltage |
DC(V) |
6~220V |
AC(V) |
6~380V |
|
Pick-up voltage at 23℃ |
DC≤75% AC≤80% |
|
Release voltage at 23℃ |
DC≥10‰ AC≥30‰ |
|
Max voltage at 23℃ |
110% |
|
Contact resistance (at 6VDC 1A) |
≤100mΩ |
|
|
Dielectric Strength |
Between Open Contacts |
≥1500VAC 50Hz/1min Leakage current 1mA |
Between Contacts |
≥2000VAC 50Hz/1min Leakage current 1mA |
|
Between coil & Contacts |
≥2500VAC 50Hz/1min Leakage current 1mA |
|
Insulation Resistance at 500VDC |
≥1000MΩ |
|
Life |
Electrical |
105 Times (Frequency: ON 1time/1s OFF 1time/1s) |
Mechanical |
10 6Times (Frequency: 300times/1min) |
|
Ambient Temperature |
-25℃ ~ +55℃ |
|
Terminal type |
Screw Mounting type / Welding type |
|
Suitable sockets |
/ |
|
Unit weight |
≈275G |
|
10pcs/foam box, 50pcs/ctn, 15kg/ctn, 0.032cbm/ctn
1. Main products: Electromagnetic power relay, Solid state relay, Timer relay, Floatless relay, Volt. Meter, Amp. Meter, Hz Meter, Counter, Relay base, etc.
2. Appliant scope: household appliances, automatic control equipments, powering generating facilities and power grids, vehicle appliances, instruments, electronic equipments, communication equipments, machine equipments, office facilities, etc
3. Established: 1992
4. Location: Capital of Elextrical Equipment -- Liushi, Yueqing, Zhejiang
5. Certification: ISO9001:2000, CQC,CCC, CE, ROHS,UL
6. Factory acreage: Moren than 11000 square meters.
7. Principle: Based on Credit, Win by quality

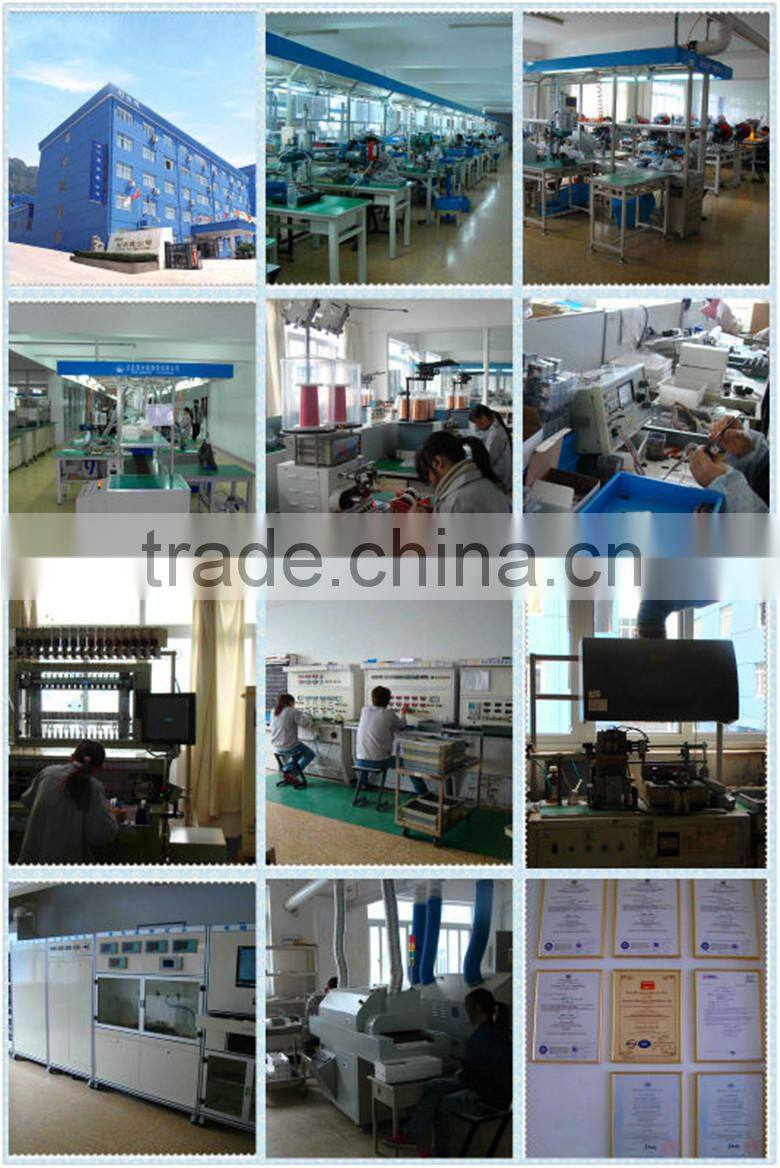

Please have a glance of our company outlook, workingshop and machines as following:
1. Free samples are available for quality checking
2. More other models as following:
