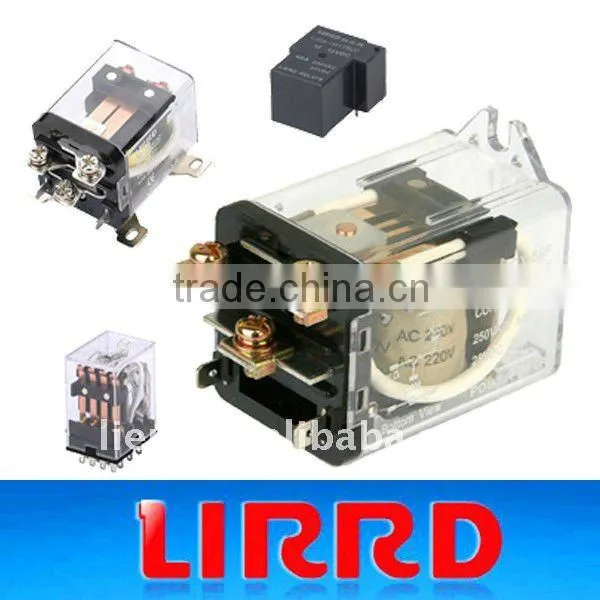

General Purpose Electronic Relay/power Relay/PCB Relay

Name: General Purpose Electronic Relay/power Relay/PCB Relay
Brand: LIRRD
SKU: 133886803

US$ 0.95 - 5 MOQ: 20 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

LIRRD

Model Number:

LHH52P LT91 LMK2P LJQX-38F LJQX-59F

Zhejiang Lierd Relays Enterprise Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai as normal

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name LIRRD

Model Number LHH52P LT91 LMK2P LJQX-38F LJQX-59F

Theory Electromagnetic Relay

Usage General Purpose

Size Other, 52P: 27.3*21*35.2mm T91:32*26.5*27.9mm MK2P:34.5*34.5*52.5mm etc.

Protect Feature Sealed

Contact Load High Power

general purpose relay/power relay/PCB relay
UL, CE, CCC, CQC, ISO90001
25 years' expreience ensures the best quality & service

Product Description

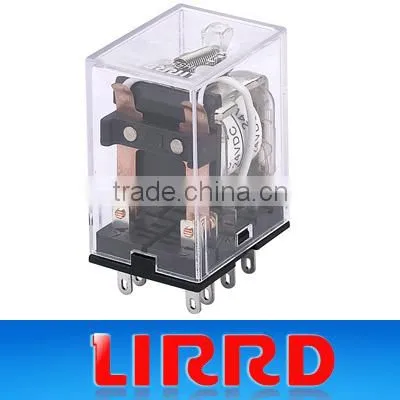

Model		LHH52P
Dimension		27.3 x 21 x 35.2mm
Contact	Form	2Z 2H 2D
	Material	Silver alloy
	Resistance Performance	5A/28VDC 5A/240VAC
	Resistance at 6VDC 1A	≤100mΩ
Coil power at 23℃	DC(W)	≤0.9W
	AC(VA)	≤1.2VA
Coil voltage	DC(V)	6~220V
	AC(V)	6~380V
Pick-up voltage at 23℃		DC≤75% AC≤80%
Release voltage at 23℃		DC≥10‰ AC≥30%
Max voltage at 23℃		110%
Dielectric Strength	Between Open Contacts	≥1000VAC 50Hz/1min Leakage current 1mA
	Between Contacts	≥1000VAC 50Hz/1min Leakage current 1mA
	Between coil & Contacts	≥1500VAC 50Hz/1min Leakage current 1mA
Insulation Resistance at 500VDC		≥500MΩ
Life	Electrical	10⁵ Times (Frequency: ON 1time/1s OFF 1time/1s)
	Mechanical	10 ⁶Times (Frequency: 300times/1min)
Ambient Temperature		-25℃ ~ +55℃
Terminal type		Insert type or welding type (Please mark you need)
Suitable sockets		PYF08A OR PYF08A-E
Unit weight		≈30G
Model reference		MY2 (OMRON TYPE)

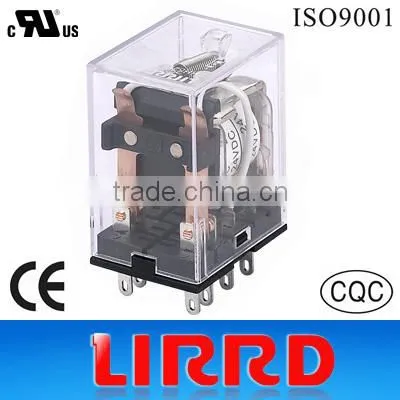

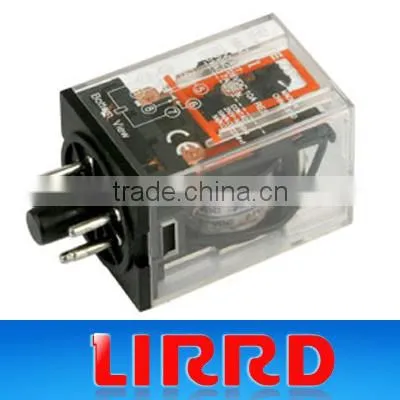

Model		LMK-2P
Dimension		34.5 x 34.5 x 52.5mm
Contact	Form	2Z 2H 2D
	Material	Silver alloy
	Resistance Performance	10A/28VDC 10A/250VAC
	Resistance at 6VDC 1A	≤100mΩ
Coil power at 23℃	DC(W)	≤1.5W
	AC(VA)	≤2.5VA
Coil voltage	DC(V)	6~220V
	AC(V)	6~380V
Pick-up voltage at 23℃		DC≤75% AC≤80%
Release voltage at 23℃		DC≥10‰ AC≥30%
Max voltage at 23℃		110%
Dielectric Strength	Between Open Contacts	≥1200VAC 50Hz/1min Leakage current 1mA
	Between Contacts	≥1500VAC 50Hz/1min Leakage current 1mA
	Between coil & Contacts	≥1500VAC 50Hz/1min Leakage current 1mA
Insulation Resistance at 500VDC		≥100MΩ
Life	Electrical	10⁵ Times (Frequency: ON 1time/1s OFF 1time/1s)
	Mechanical	10 ⁶Times (Frequency: 300times/1min)
Ambient Temperature		-25℃ ~ +55℃
Terminal type		Insert type
Suitable sockets		LPF083A LPF083A-E LPL08
Unit weight		≈76G
Model reference		JTX

Model		LJQX-15F(T90)
Dimension		32 x 26.5 x 27.9mm
Contact	Form	1Z 1H 1D
	Material	Silver alloy
	Resistance Performance	30A/40A/28VDC 30A/40A/250VAC
	Resistance at 6VDC 1A	≤100mΩ
Coil power at 23℃	DC(W)	≤0.9W
	AC(VA)	/
Coil voltage	DC(V)	6~48V
	AC(V)	/
Pick-up voltage at 23℃		DC≤75%
Release voltage at 23℃		DC≥10‰
Max voltage at 23℃		110%
Dielectric Strength	Between Open Contacts	≥1200VAC 50Hz/1min Leakage current 1mA
	Between Contacts	/
	Between coil & Contacts	≥1500VAC 50Hz/1min Leakage current 1mA
Insulation Resistance at 500VDC		≥500MΩ
Life	Electrical	10⁵ Times (Frequency: ON 1time/1s OFF 1time/1s)
	Mechanical	10 ⁶Times (Frequency: 300times/1min)
Ambient Temperature		-25℃ ~ +55℃
Terminal type		welding type
Suitable sockets		/
Unit weight		≈30G
Model reference		T91

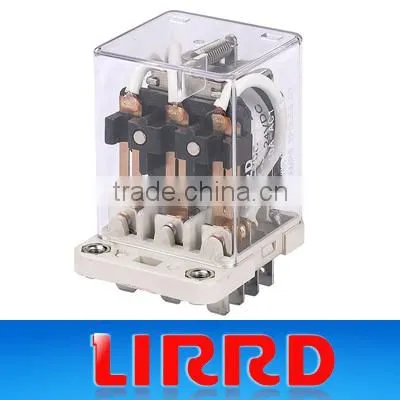

Model		LJQX-38F/3Z
Dimension		55.441.549.1mm
Coil voltage		12VDC/24VDC/220VAC for normal
Contact	Form	3Z 3H 3D
	Material	Silver alloy
	Resistance Performance	30A/40A/28VDC/250VAC
Coil power at 23℃	DC(W)	<1.5W
	AC(VA)	<2.5VA
Coil voltage	DC(V)	6~220V
	AC(V)	6~380V
Pick-up voltage at 23℃		DC≤75% AC≤80%
Release voltage at 23℃		DC≥10‰ AC≥30‰
Max voltage at 23℃		110%
Contact resistance (at 6VDC 1A)		≤100mΩ
Dielectric Strength	Between Open Contacts	≥1200VAC 50Hz/1min Leakage current 1mA
	Between Contacts	≥1500VAC 50Hz/1min Leakage current 1mA
	Between coil & Contacts	≥1500VAC 50Hz/1min Leakage current 1mA
Insulation Resistance at 500VDC		≥1000MΩ
Life	Electrical	10⁵ Times (Frequency: ON 1time/1s OFF 1time/1s)
	Mechanical	10 ⁶Times (Frequency: 300times/1min)
Ambient Temperature		-25℃ ~ +55℃
Terminal type		Insert type / Welding type
Suitable sockets		38F11A
Unit weight		≈130G

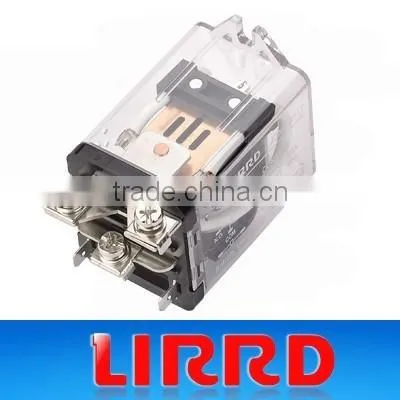

Model		LJQX-59F/1Z
Dimension		80.5 x 45.0 x 71.5mm
Coil voltage		12VDC/24VDC/220VAC for normal
Contact	Form	1Z 1H 1D
	Material	Silver alloy
	Resistance Performance	80A/28VDC/250VAC
Coil power at 23℃	DC(W)	≤4.8W
	AC(VA)	≤7.5VA
Coil voltage	DC(V)	6~220V
	AC(V)	6~380V
Pick-up voltage at 23℃		DC≤75% AC≤80%
Release voltage at 23℃		DC≥10‰ AC≥30‰
Max voltage at 23℃		110%
Contact resistance (at 6VDC 1A)		≤100mΩ
Dielectric Strength	Between Open Contacts	≥1500VAC 50Hz/1min Leakage current 1mA
	Between Contacts	≥2000VAC 50Hz/1min Leakage current 1mA
	Between coil & Contacts	≥2500VAC 50Hz/1min Leakage current 1mA
Insulation Resistance at 500VDC		≥1000MΩ
Life	Electrical	10⁵ Times (Frequency: ON 1time/1s OFF 1time/1s)
	Mechanical	10 ⁶Times (Frequency: 300times/1min)
Ambient Temperature		-25℃ ~ +55℃
Terminal type		Screw Mounting type / Welding type
Suitable sockets		/
Unit weight		≈235G
