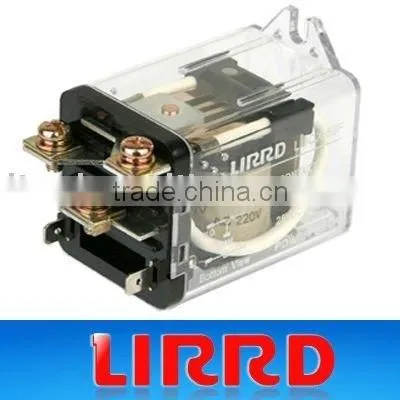

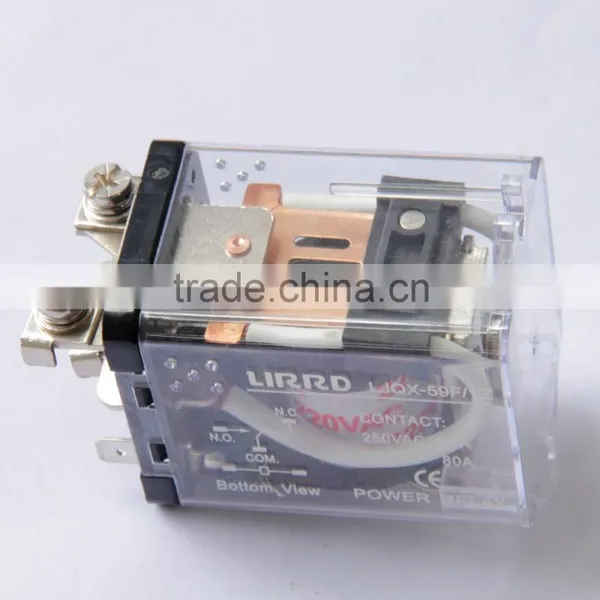

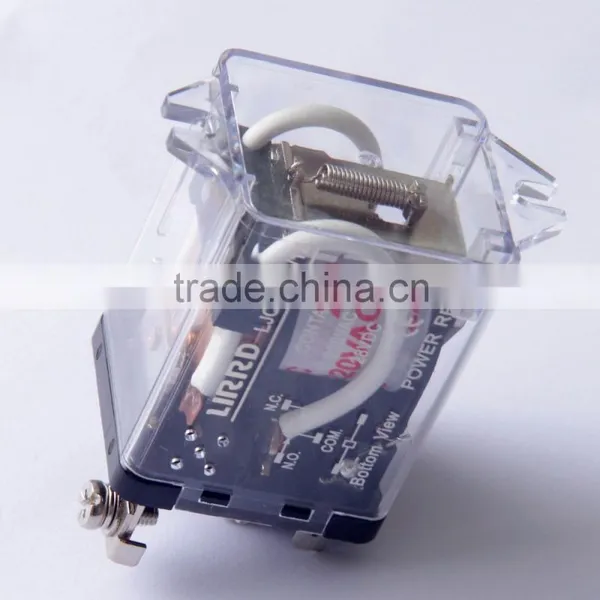

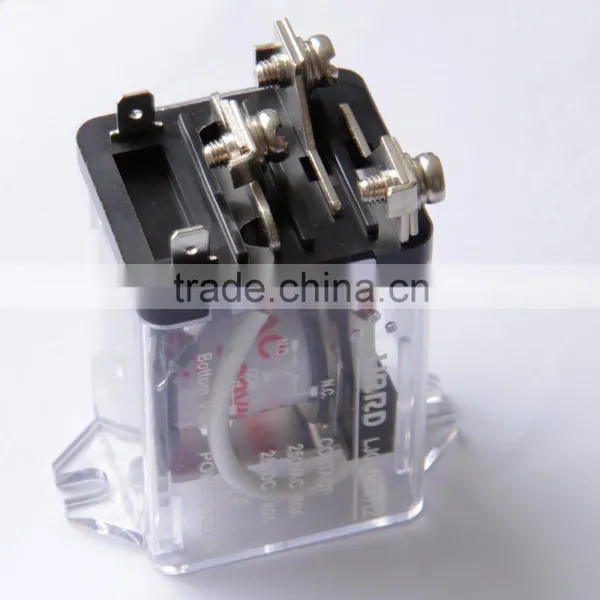

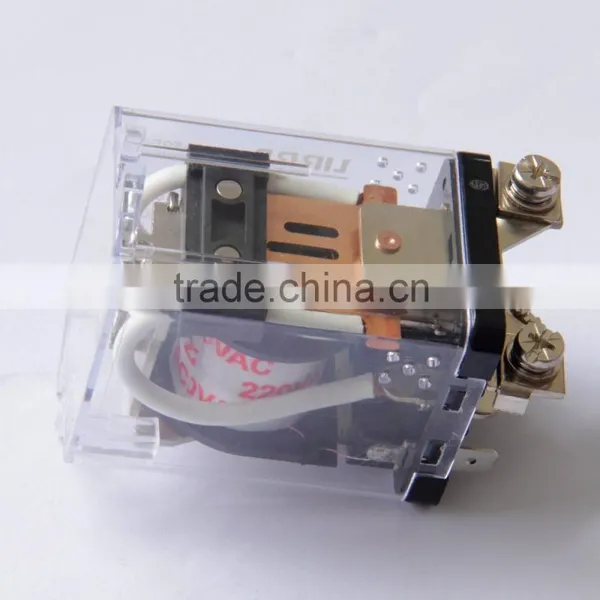

80A Relay JQX-59F/general relay/ universal relay/high power relay
- 0 per Month
-
T8448 Multifunctional field terminal components Provide precise location
-
0760-01020 Combine rotation 3 ports Implement a specific function or response
-
5466-409 Digital control series Single Ethernet port for high processing
-
8V1180.00-2ACOPOS Servo driver Ensure stable operation of equipment
-
SE3008 KJ2005X1-MQ2 13P0072X082 Control module Logical computing power
-
P0973KJ Link switch Achieve high-performance, full-featured Layer 2 Ethernet switching
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | LIRRD | Model Number: | JQX-59F |
| Theory: | Electromagnetic Relay | Usage: | General Purpose | Size: | Other, 80.5*45.0*71.5/80.5*62.0*71.5 |
| Protect Feature: | Sealed | Contact Load: | High Power |
Product Description
Model | LJQX-59F/1Z | |
Dimension | 80.5 x 45.0 x 71.5mm | |
Coil voltage | 12VDC/24VDC/220VAC for normal | |
Contact | Form | 1Z 1H 1D |
Material | Silver alloy | |
Resistance Performance | 80A/28VDC/250VAC | |
Coil power at 23℃ | DC(W) | ≤4.8W |
AC(VA) | ≤7.5VA | |
Coil voltage | DC(V) | 6~220V |
AC(V) | 6~380V | |
Pick-up voltage at 23℃ | DC≤75% AC≤80% | |
Release voltage at 23℃ | DC≥10‰ AC≥30‰ | |
Max voltage at 23℃ | 110% | |
Contact resistance (at 6VDC 1A) | ≤100mΩ | |
Dielectric Strength | Between Open Contacts | ≥1500VAC 50Hz/1min Leakage current 1mA |
Between Contacts | ≥2000VAC 50Hz/1min Leakage current 1mA | |
Between coil & Contacts | ≥2500VAC 50Hz/1min Leakage current 1mA | |
Insulation Resistance at 500VDC | ≥1000MΩ | |
Life | Electrical | 105 Times (Frequency: ON 1time/1s OFF 1time/1s) |
Mechanical | 10 6Times (Frequency: 300times/1min) | |
Ambient Temperature | -25℃ ~ +55℃ | |
Terminal type | Screw Mounting type / Welding type | |
Suitable sockets | / | |
Unit weight | ≈235G | |
10pc/foam box, 50pcs/ctn, 15kg/ctn, 0.032cbm/ctn
1. Free samples are available. You only need pay for the freight.
2. For more other models, please kindly check following:
1. Main products: Electromagnetic power relay, Solid state relay, Timer relay, Floatless relay, Volt. Meter, Amp. Meter, Hz Meter, Counter, Relay base, etc.
2. Appliant scope: household appliances, automatic control equipments, powering generating facilities and power grids, vehicle appliances, instruments, electronic equipments, communication equipments, machine equipments, office facilities, etc
3. Established: 1992
4. Location: Capital of Elextrical Equipment -- Liushi, Yueqing, Zhejiang
5. Certification: ISO9001:2000, CQC,CCC, CE, ROHS,UL
6. Factory acreage: Moren than 11000 square meters.
7. Principle: Based on Credit, Win by quality
Please have a glance of our company outlook, workingshop and machines as following:
Anything you concern, please be free to contact us. We will be more than happy to offer any help we can.
