New Designed Electronic Flasher Relay

New Designed Electronic Flasher Relay thumbnail-1
New Designed Electronic Flasher Relay photo-1
US$ 32.5 - 41.25 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Saip Electronic Relay
Model Number:
SM 010
Contact Supplier Request Quote Chat Now
Yueqing Saip Electric Company Limited
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Saip Electronic Relay
Model Number SM 010
Theory Other, Electromagnetic Relay, Temperature Controller
Usage Other, Telecommunication, Industrial
Size Miniature
Protect Feature Sealed
Contact Load High Power

New Designed Electronic Flasher Relay





Feature:



1.High DC switching capacity

2.Variety of applications

3.Compact design
4.Simple connection
5.Clip fixing

Electronic relay for switching DC appliances with high switching capacity. A separate conventional switch contact is used as controllers(e.g. temperature regulator, humidity regulator). The electronic relay is available in 24 VDC and 48 VDC versions.


Technical data :


Contact type

contact maker (Relay/MOSFET)

Contact resistance

< 10mOhm

Service life

> 100 000 cycles

EMC

acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3

Connection

6-pole terminal, clamping torque 0.5Nm max., rigid wire 2.5mm²

Mounting

clip for 35mm DIN rail, EN50022

Casing

plastic according to UL94 V-0, light grey

Dimensions

67 x 50 x 46mm

Weight

approx. 85g

Fitting position

variable

Operating/Storage temperature

-20 to +80°C (-4 to +176°F)

Protection type

IP20

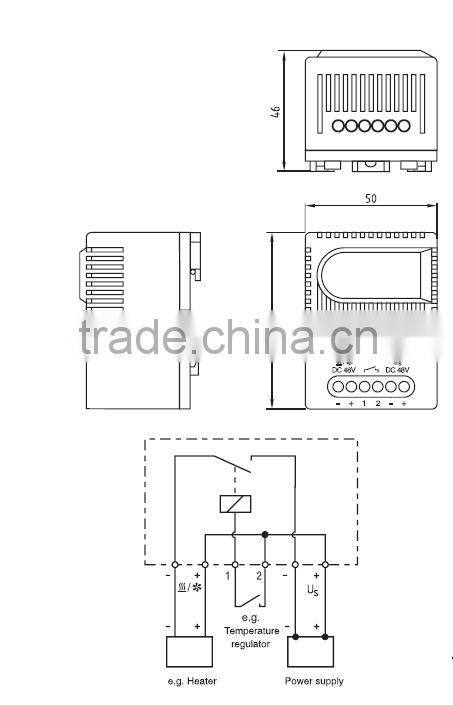

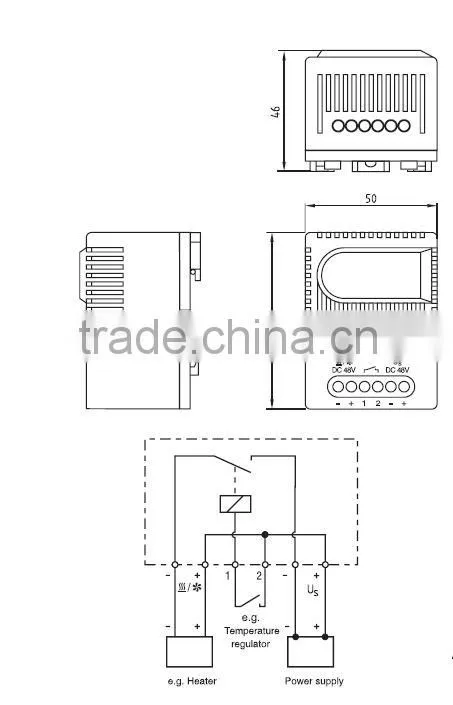

The drawing:



New Designed Electronic Flasher Relay

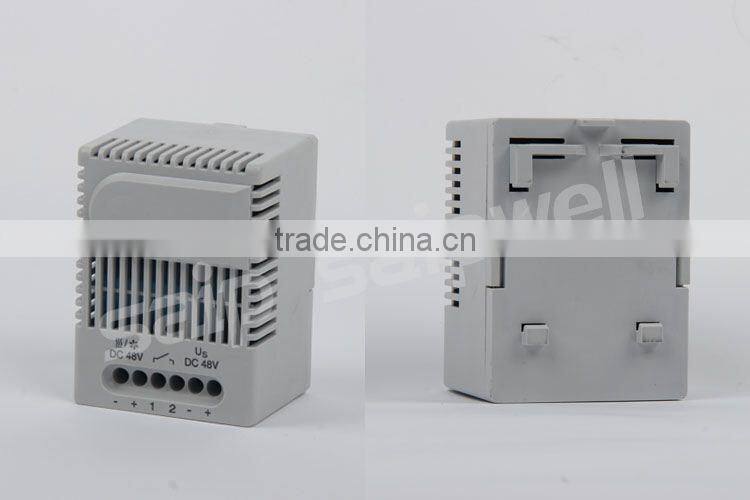

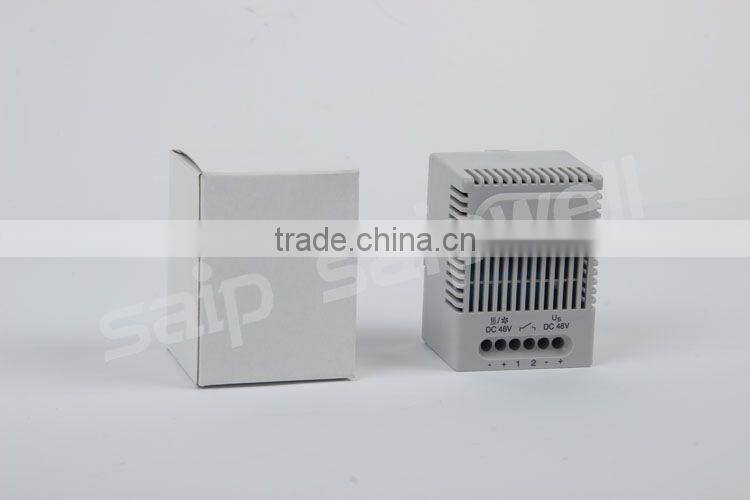

Product show:





 New Designed Electronic Flasher Relay




Packaging&Shipping:
packaging  detail: standard  export carton

shipping   detail: within 5 days after getting payment



New Designed Electronic Flasher Relay







Our service:
Inquiry: we will give your reply in 24 hours.
Shipment: sea transportation, air transportation or express, fast delivery .
Payment:   T/T, Paypal, Western Union.
Warranty : 1~3 years.
We provide best OEM service.

About us:
SAIP MEANING:
A global quality electric organization
In order to obtain the highest quality all of
Products according to international IEC normative.






New Designed Electronic Flasher Relay



More details,please contact with us!
