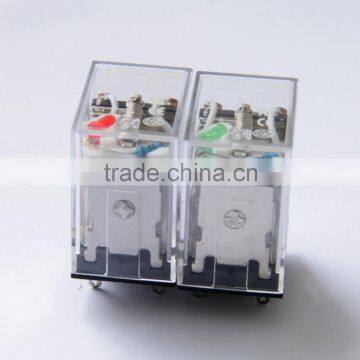

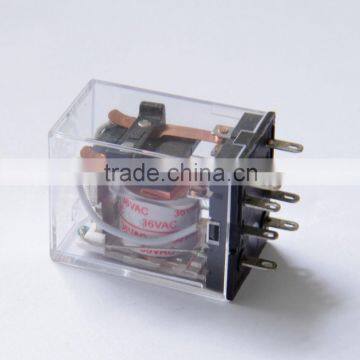

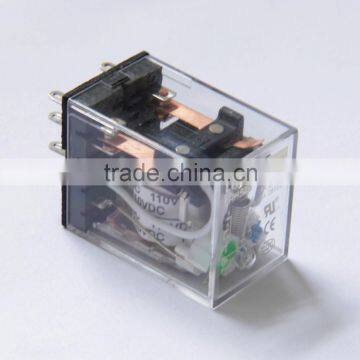

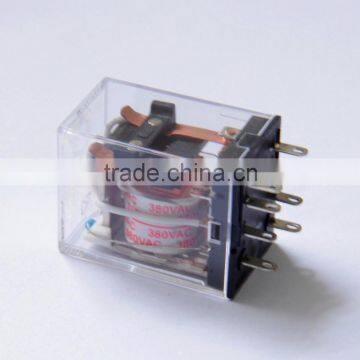

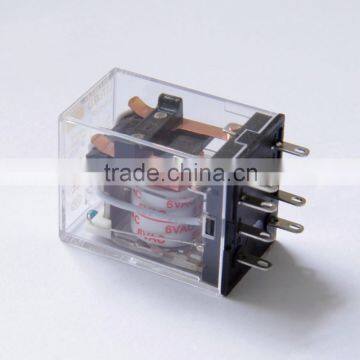

5A 8pins general purpose plug-in type electromagnetism relays MY2/HH52P
1. Main products: Electromagnetic power relay, Solid state relay, Timer relay, Floatless relay, Volt. Meter, Amp. Meter, Hz Meter, Counter, Relay base, etc.
2. Appliant scope: household appliances, automatic control equipments, powering generating facilities and power grids, vehicle appliances, instruments, electronic equipments, communication equipments, machine equipments, office facilities, etc
3. Established: 1992
4. Location: Capital of Elextrical Equipment -- Liushi, Yueqing, Zhejiang
5. Certification: ISO9001:2000, CQC,CCC, CE, ROHS,UL
6. Factory acreage: Moren than 11000 square meters.
7. Principle: Based on Credit, Win by quality
Please have a glance of our company outlook, workingshop and machines as following:
20pcs/box, 500pcs/tn, 0.033cbm/ctn

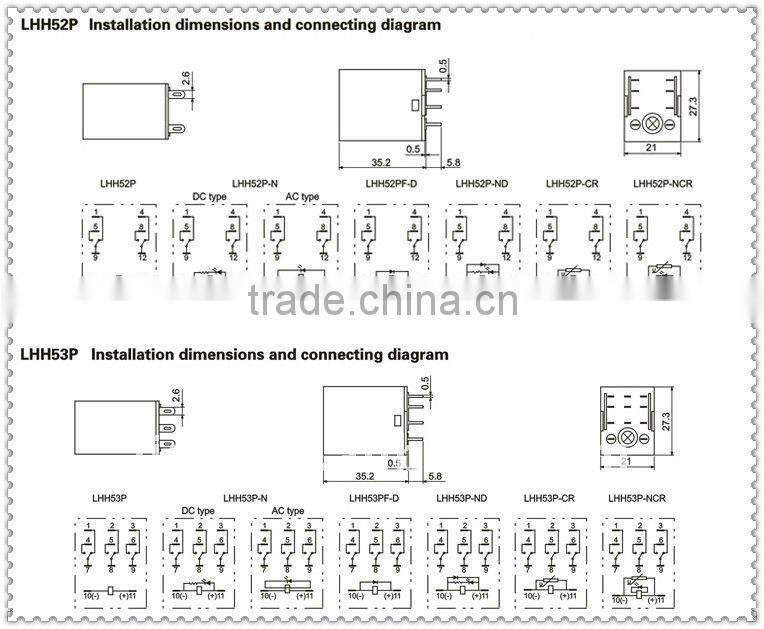

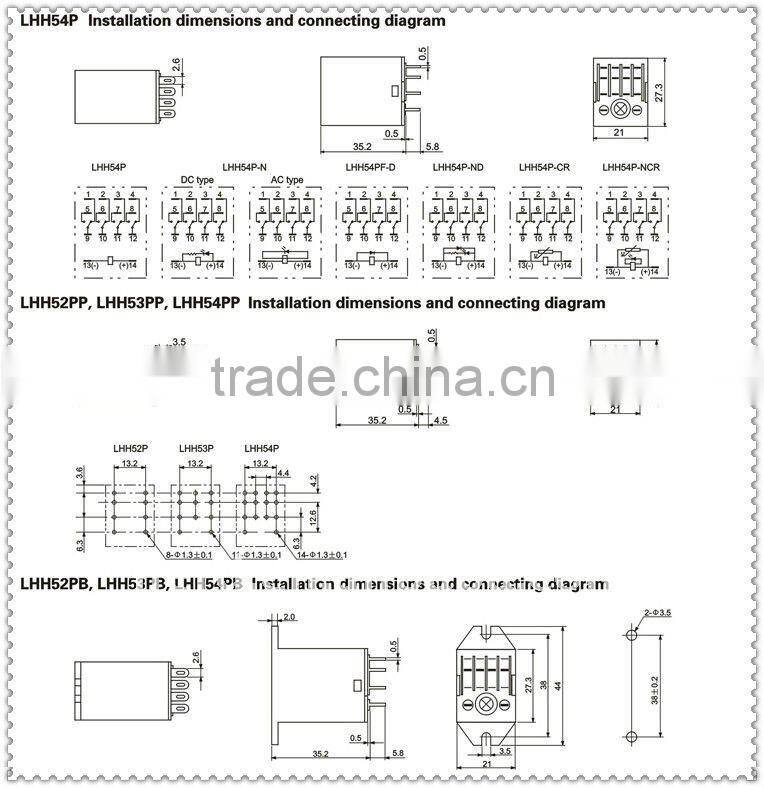

Please check the datasheet for MY relays as following:
Model |
LHH52P |
|
Dimension |
27.3 x 21 x 35.2mm |
|
|
Contact |
Form |
2Z 2H 2D |
Material |
Silver alloy |
|
Resistance Performance |
5A/28VDC 5A/240VAC |
|
Resistance at 6VDC 1A |
≤100mΩ |
|
Coil power at 23℃ |
DC(W) |
≤0.9W |
AC(VA) |
≤1.2VA |
|
Coil voltage |
DC(V) |
6~220V |
AC(V) |
6~380V |
|
Pick-up voltage at 23℃ |
DC≤75% AC≤80% |
|
Release voltage at 23℃ |
DC≥10‰ AC≥30% |
|
Max voltage at 23℃ |
110% |
|
|
Dielectric Strength |
Between Open Contacts |
≥1000VAC 50Hz/1min Leakage current 1mA |
Between Contacts |
≥1000VAC 50Hz/1min Leakage current 1mA |
|
Between coil & Contacts |
≥1500VAC 50Hz/1min Leakage current 1mA |
|
Insulation Resistance at 500VDC |
≥500MΩ |
|
Life |
Electrical |
105 Times (Frequency: ON 1time/1s OFF 1time/1s) |
Mechanical |
10 6Times (Frequency: 300times/1min) |
|
Ambient Temperature |
-25℃ ~ +55℃ |
|
Terminal type |
Insert type or welding type (Please mark you need) |
|
Suitable sockets |
PYF08A OR PYF08A-E |
|
Unit weight |
≈30G |
|
Model reference |
MY2 (OMRON TYPE) |
|
1. Free samples are available. You only need pay for the freight.
2. We also have many other types relays, please check following:
Anything you are interested, please be free to contact us. We will be more than happy to offer any help we can.
