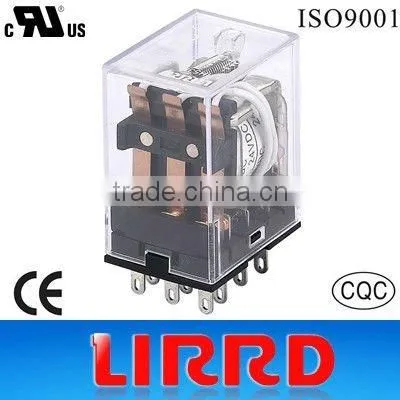

UL 12V/24V/220 V LHH53P General Purpose Relay/11pins Relay/power Relay/5A Relay

UL 12V/24V/220 V LHH53P General Purpose Relay/11pins Relay/power Relay/5A Relay thumbnail-1
UL 12V/24V/220 V LHH53P General Purpose Relay/11pins Relay/power Relay/5A Relay photo-1
US$ 0.1 - 3 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
LIRRD
Model Number:
HH53P
Contact Supplier Request Quote Chat Now
Zhejiang Lierd Relays Enterprise Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name LIRRD
Model Number HH53P
Theory Electromagnetic Relay
Usage General Purpose
Size Other, 27.3*21*35.2
Protect Feature Sealed
Contact Load Low Power
  UL 12V/24V/220 V LHH53P general purpose relay/11pins relay/power relay/5A relay
Company Information

1.     Main products: Electromagnetic power relay, Solid state relay, Timer relay, Floatless relay,  Volt. Meter, Amp. Meter, Hz Meter, Counter, Relay base, etc.



2.   Appliant scope: household appliances, automatic control equipments, powering generating facilities and power grids, vehicle appliances, instruments, electronic equipments, communication equipments, machine equipments, office facilities, etc



3.    Established: 1992



4.    Location: Capital of Elextrical Equipment -- Liushi, Yueqing, Zhejiang



5.   Certification:   ISO9001:2000, CQC,CCC, CE, ROHS,UL



6.   Factory acreage: Moren than 11000 square meters.



7.   Principle: Based on Credit, Win by quality

Please have a glance of our company outlook, workingshop and machines as following:

 UL 12V/24V/220 V LHH53P general purpose relay/11pins relay/power relay/5A relay

Product Description



Model

LHH53P

Dimension

27.3 x 21 x 35.2mm



Contact

Form

3Z 3H 3D

Material

Silver alloy

Resistance Performance

5A/28VDC   5A/240VAC

Resistance at 6VDC 1A

≤100mΩ

Coil power at 23℃

DC(W)

≤0.9W

AC(VA)

≤1.2VA

Coil voltage

DC(V)

6~220V

AC(V)

6~380V

Pick-up voltage at 23℃

DC≤75% AC≤80%

Release voltage at 23℃

DC≥10‰ AC≥30%

Max voltage at 23℃

110%



Dielectric Strength

Between Open Contacts

≥1000VAC 50Hz/1min Leakage current 1mA

Between Contacts

≥1000VAC 50Hz/1min Leakage current 1mA

Between coil & Contacts

≥1500VAC 50Hz/1min Leakage current 1mA

Insulation Resistance at 500VDC

≥500MΩ

Life

Electrical

105 Times (Frequency: ON 1time/1s OFF 1time/1s)

Mechanical

10 6Times (Frequency: 300times/1min)

Ambient Temperature

-25℃ ~ +55℃

Terminal type

Insert type or welding type (Please mark you need)

Suitable sockets

PYF11A OR PYF11A-E

Unit weight

≈35G

Model reference

MY3 (OMRON TYPE)



Packaging & Shipping

1. 20pcs/box with foam, 500pcs/ctn, 24kg/ctn, 0.04cbm/ctn

2. Shipping: by express, air, sea as you wish



Company Information



1.     Main products: Electromagnetic power relay, Solid state relay, Timer relay, Floatless relay,  Volt. Meter, Amp. Meter, Hz Meter, Counter, Relay base, etc.



2.   Appliant scope: household appliances, automatic control equipments, powering generating facilities and power grids, vehicle appliances, instruments, electronic equipments, communication equipments, machine equipments, office facilities, etc



3.    Established: 1992



4.    Location: Capital of Elextrical Equipment -- Liushi, Yueqing, Zhejiang



5.   Certification:   ISO9001:2000, CQC,CCC, CE, ROHS,UL





6.   Factory acreage: Moren than 11000 square meters.





7.   Principle: Based on Credit, Win by quality

Please have a glance of our company outlook, workingshop and machines as following:

UL 12V/24V/220 V LHH53P general purpose relay/11pins relay/power relay/5A relay



Our Services



1. Free samples are available. You only need pay for the freight.

2. We also have many other types relays, please check following:

Anything you are interested, please be free to contact us. We will be more than happy to offer any help we can.
