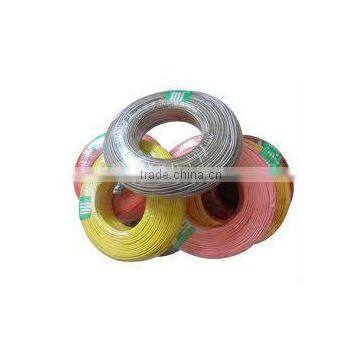

UL 3289 XLPE Insulated Wire 30awg-750kcmil
US$ 0.05 - 5.7
MOQ: 6100 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Haerkn
Model Number:
UL 3289 XLPE Insulated Irradiated Wire
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
20AWG Silicone Rubber Insulation Wire UL3536US$ 0.02 - 0.6MOQ: 6100 Meters -
Solar Power Cable / VDE/UL Certified CableUS$ 4.86 - 4.89MOQ: 3000 Meters
-
VDE H05S-K High Temperature Silicone WireUS$ 0.1 - 5MOQ: 6100 Meters
-
Flexible PVC Parallel Wire UL 2800US$ 0.03 - 6MOQ: 6100 Meters
-
Solar PV Cable / VDE TUV Certified DC Solar CableUS$ 4.86 - 4.89MOQ: 3000 Meters
Place of Origin
Guangdong, China
Brand Name
Haerkn
Model Number
UL 3289 XLPE Insulated Irradiated Wire
Type
Insulated
Application
Overhead
Conductor Material
Other, Tinned or bare or silver-plated copper
Conductor Type
Other, Solid or stranded round
Insulation Material
Other, XLPE
Specifications
1. UL & ROHS & LOSH compliant2. XLPE insulated wire
3. 600Vac &150degC
4. bare/tinned/silver-plated copper 30awg-750kcmil
UL Style 3289 XLPE Insulated Wire
| Style 3289 | Insulated Wire | |
| Rating | 150 deg C, 600 Vac, 750 Vdc, Horizontal flame. |
| Conductor | 30 AWG - 750 kcmil solid or stranded, tinned, bare or silver plated copper or solid or stranded coated high strength copper - minimum 90% conductivity, or Recognized Component - Magnet Wire (OBMW2), rated 200 deg C (ANSI Type MW35). |
| Insulation | XLPE or XLPO |
| 30-9 AWG conductor size | 30 mils min average | 27 mils minimum at any point |
| 8 AWG | 45 avg | 41 min |
| 7-2 AWG | 60 avg | 54 min |
| 1-4/0 AWG | 80 avg | 72 min |
| 250-500 kcmil | 95 avg | 86 min |
| 501-750 kcmil | 110 avg | 99 min |
| Standard | Appliance Wiring Material UL 758. |
| Marking | General. |
| Use | For use as Motor Leads or Internal Wiring of Appliances. Tags may indicate the following: 2500 V peak - For Electronic Use Only. Wires employing magnet wire shall be plainly marked on the tag: 1) "Magnet Wire Conductors Employed Special Care is required when terminating." 2) "Employs ANSI Type MW35 magnet wire rated 200 deg C." |
Conductor |
Insulator |
Electrical Characteristic |
Packing |
|||
AWG |
Comps.n.x/ φmm |
Diameter/ φmm |
Insulation Thickness /mm |
Over diameter/ φmm |
Realst, max Cuc, c 20°C/ Ohm/km |
Mt/coils |
30 |
7/0.10 |
0.31 |
0.76 |
1.83 |
381.00 |
610 |
28 |
7/0.12 |
0.37 |
0.76 |
1.89 |
239.00 |
610 |
26 |
7/0.16 |
0.49 |
0.76 |
2.01 |
150.00 |
610 |
24 |
7/0.20 |
0.61 |
0.76 |
2.13 |
94.20 |
610 |
22 |
17/0.16 |
0.76 |
0.76 |
2.28 |
59.40 |
610 |
20 |
20/0.18 |
0.93 |
0.76 |
2.45 |
36.70 |
610 |
18 |
16/0.254 |
1.17 |
0.76 |
2.69 |
23.20 |
305 |
16 |
26/0.254 |
1.50 |
0.76 |
3.02 |
14.60 |
305 |
14 |
41/0.254 |
1.88 |
0.76 |
3.40 |
8.96 |
305 |
12 |
65/0.254 |
2.37 |
0.76 |
3.89 |
5.64 |
100 |
10 |
105/0.254 |
3.00 |
0.76 |
4.52 |
3.546 |
100 |
